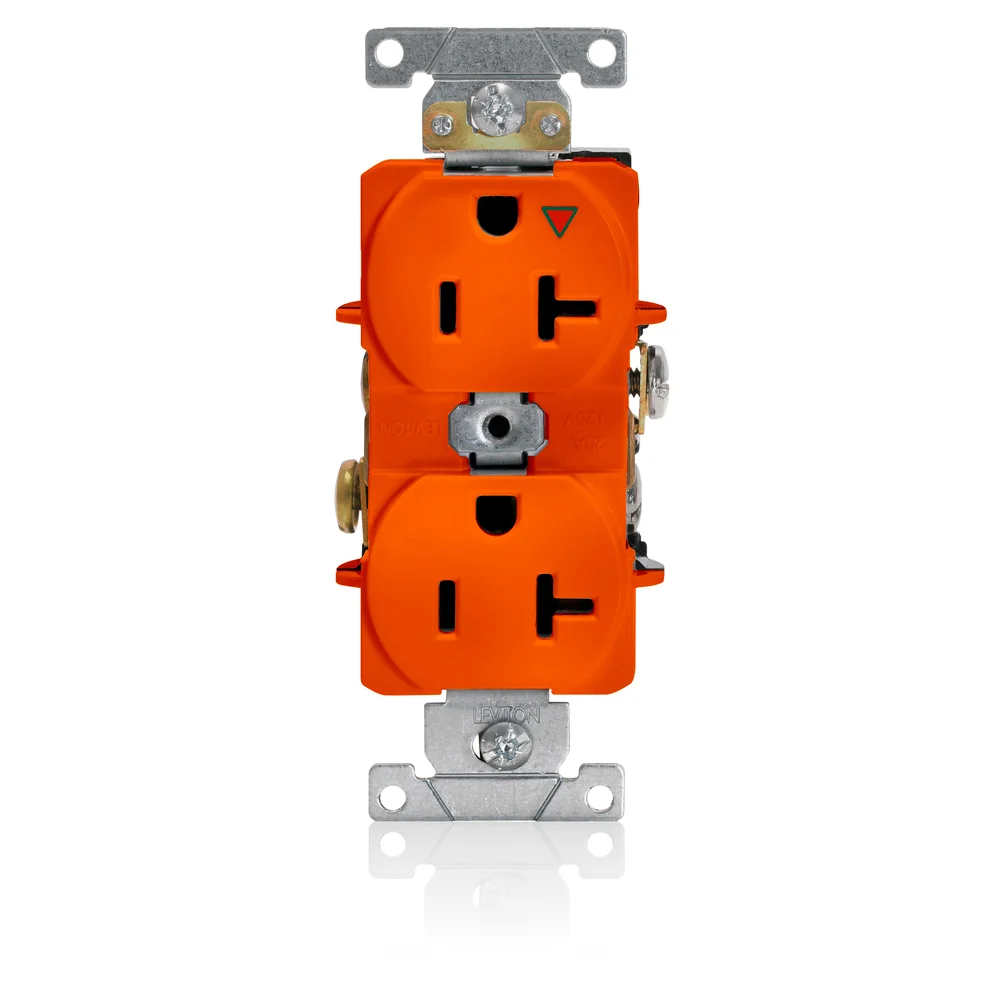

LEVITON 5362-IG Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Orange, Thermoplastic, Back and Side Wired
Item: CR9HVJModel: 5362-IGCross Ref: 792TR8
7 In Stock
Ships within 2 days via
5.00% off
€24.12 /unit
This product can only be shipped in multiples of 50Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 20A |
| Body Material | Thermoplastic Nylon |
| Clamp Nuts Finish | Galvanized |
| Clamp Nuts Material | Steel |
| Color | Orange |
| Connection Orientation | Straight |
| Contact Material | Phosphor Bronze |
| Cover Type | No Cover |
| Current Limiting | Full Rated Current |
| Current Rating | 20A |
| Device Type | Duplex Receptacle Outlet |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Face Material | Thermoplastic Nylon |
| Face Plate Height | 2 4/5" |
| Face Plate Width | 1.3" |
| Features | Smooth Face |
| Flammability | Rated V-2 Per UL 94 |
| Function | Isolated Ground |
| Gfci | No |
| Grade | Federal Specification , Heavy Duty Industrial Specification Grade |
| Grounding | Isolated Ground , Self Grounding |
| Grounding Screw Material | Brass |
| Grounding Screw Size | #8-32 |
| Housing Color | Orange |
| Housing Material | Thermoplastic Nylon |
| Includes Mounting Hardware | Yes |
| Isolated Ground System | Brass |
| Line Contacts Material | Phosphor Bronze |
| Max. Operating Temp. | 60°C |
| Max. Wire Size | 10 AWG |
| Maximum Operating Temperature | 140°F |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 14 AWG |
| Minimum Operating Temperature | -40°F |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Enclosure Rating | Not Rated |
| Nema Rating | NEMA WD-6 |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temp. | -40°C to +60°C |
| Overall Depth | 1.1" |
| Phase | Single |
| Polarized | Yes |
| Receptacle Type | Duplex |
| Screw Terminal Torque | 14 lbs.-in. to 18 lbs.-in. |
| Signal & Power Protection | Isolated Ground |
| Standards | Ansi C73, Csa C22.2 No. 42 File E152105, Nom 057 Certified, Ul 498 File E13399, Ul Federal Specification Wc-596 File E13399 |
| Strap Finish | Galvanized |
| Strap Material | Steel |
| Temp. Rise | Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current |
| Terminal Accom. | 14 AWG to 10 AWG |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws Finish | Plated |
| Terminal Screws Material | Brass |
| Termination | Back And Side Wire |
| Torque Range | 14 lbs.-in. to 16 lbs.-in. |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 21.59 |
| Ship length (cm) | 32.39 |
| Ship width (cm) | 3.38 |
| Country of Origin | MX |
Product Variants
| Product | Model | Housing Color | Color | Nema Rating | Grounding | Mount Hole Center-to-center Height | Body Material | Face Plate Height | Housing Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5362-IGB | Brown | Brown | NEMA WD-6 | Isolated Ground | 3 7/25" | Nylon | 2 3/4" | - | €22.01 | |
 |

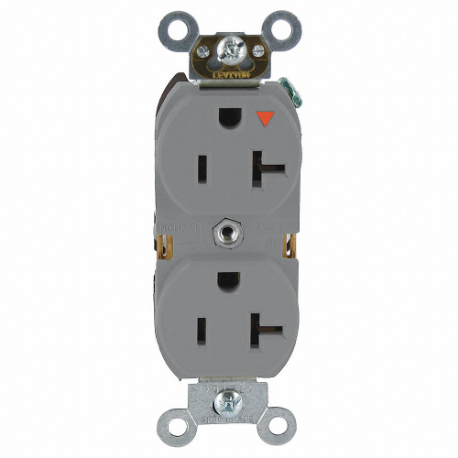

5362-IGG | Gray | Gray | NEMA WD-6 | Isolated Ground | 3.3" | Thermoplastic Nylon | 2 4/5" | - | €22.01 | |
 |

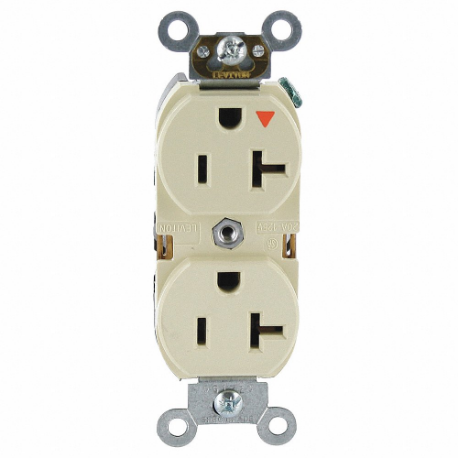

5362-IGI | Ivory | Ivory | NEMA WD-6 | Isolated Ground | 3.3" | Thermoplastic Nylon | 2 4/5" | - | €21.49 | |
 |

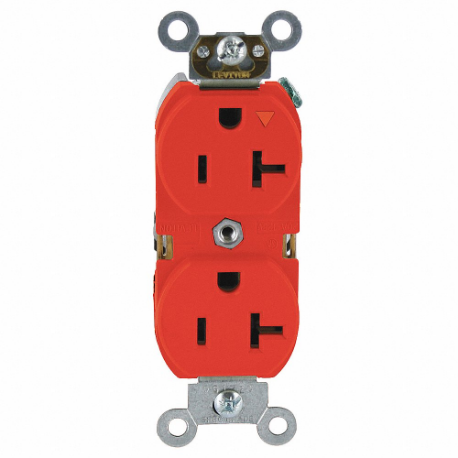

5362-IGR | Red | Red | NEMA WD-6 | Isolated Ground | 3.3" | Thermoplastic Nylon | 2 4/5" | - | €22.01 | |
 |

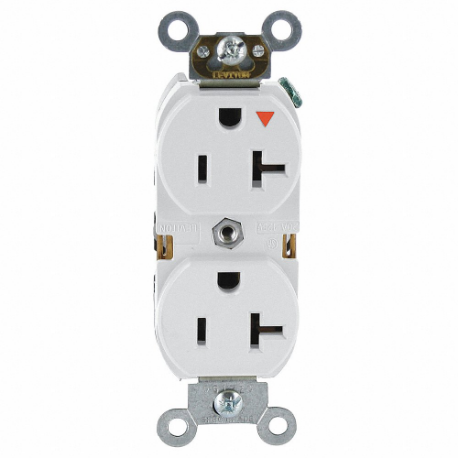

5362-IGW | White | White | NEMA WD-1 And NEMA WD-6 | Isolated Ground | 3.3" | Thermoplastic Nylon | 2 4/5" | - | €22.01 | |
 |

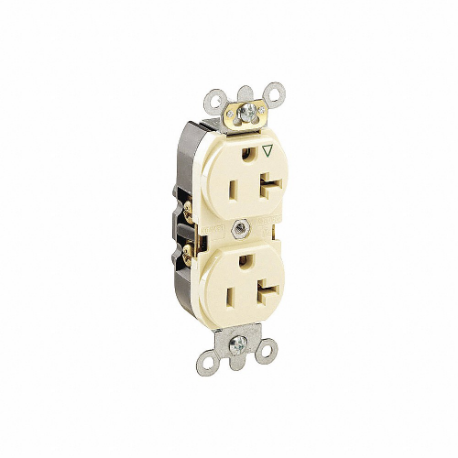

5362-IGT | Light Almond | Light Almond | NEMA WD-6 | Isolated Ground | 3.3" | Nylon | - | Nylon | €22.01 |
