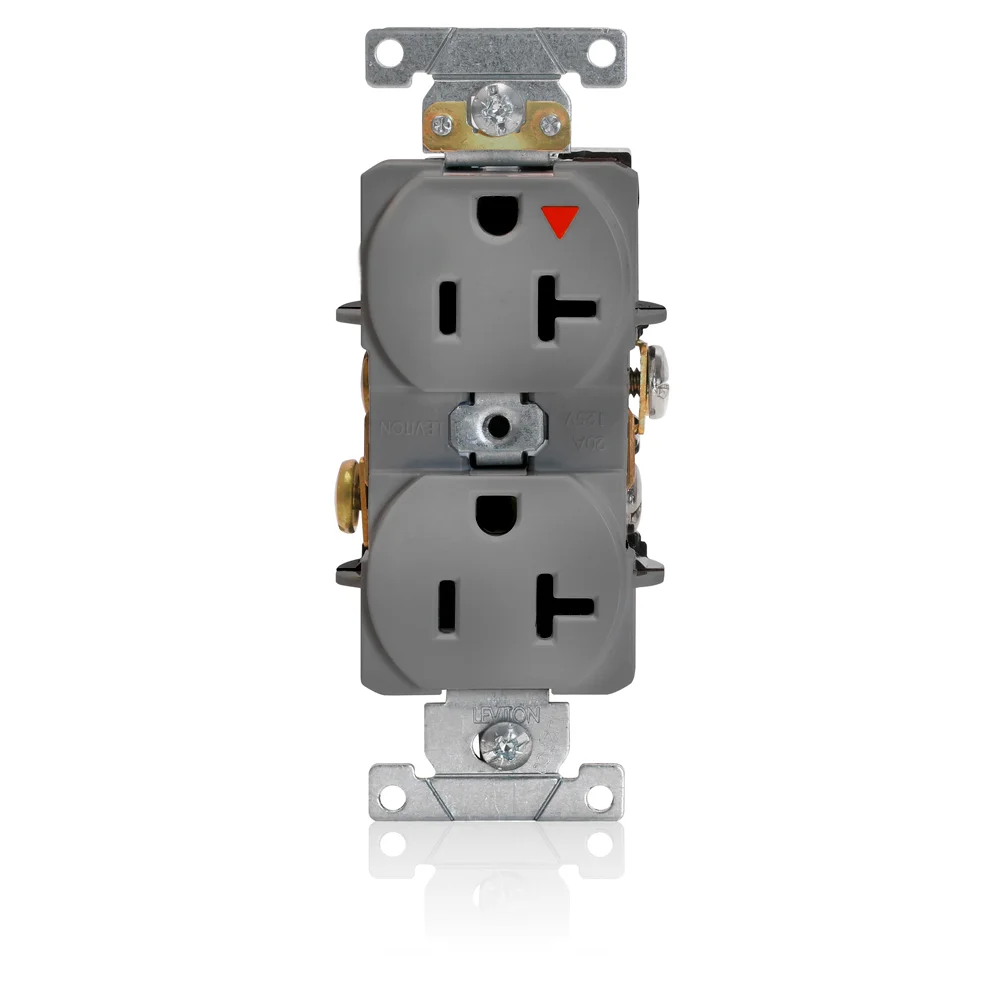

LEVITON 5362-IGG Receptacle, Duplex, 5-20R, 125V AC, 20 A, 2 Poles, Gray, Screw Terminals, Isolated Ground
Item: CR9HVCModel: 5362-IGGCross Ref: 792TT0
7 In Stock
Ships within 2 days via
10.00% off
€19.81 /unit
This product can only be shipped in multiples of 50Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 20A |
| Body Material | Thermoplastic Nylon |
| Color | Gray |
| Connection Orientation | Straight |
| Contact Material | Phosphor Bronze |
| Cover Type | No Cover |
| Current Rating | 20A |
| Depth | 1.11" |
| Face Plate Height | 2 4/5" |
| Face Plate Width | 1.3" |
| Gfci | No |
| Grade | Federal Specification |
| Grounding | Isolated Ground |
| Housing Color | Gray |
| Hp | 1 hp |
| Includes Mounting Hardware | Yes |
| Max. Operating Temp. | 60°C |
| Max. Wire Size | 10 AWG |
| Maximum Operating Temperature | 140°F |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 14 AWG |
| Minimum Operating Temperature | -40°F |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Enclosure Rating | Not Rated |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Overall Depth | 1.1" |
| Phase | Single |
| Polarized | Yes |
| Receptacle Type | Duplex |
| Signal & Power Protection | Isolated Ground |
| Standards | Ansi C73, Csa C22.2 No. 42 File E152105, Nom 057 Certified, Ul 498 File E13399, Ul Federal Specification Wc-596 File E13399 |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 10.31 |
| Ship length (cm) | 2.84 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Housing Color | Color | Nema Rating | Grounding | Mount Hole Center-to-center Height | Body Material | Face Plate Height | Housing Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5362-IGB | Brown | Brown | NEMA WD-6 | Isolated Ground | 3 7/25" | Nylon | 2 3/4" | - | €22.01 | |
 |
5362-IGI | Ivory | Ivory | NEMA WD-6 | Isolated Ground | 3.3" | Thermoplastic Nylon | 2 4/5" | - | €21.49 | |
 |
5362-IG | Orange | Orange | NEMA WD-6 | Isolated Ground | 3.3" | Thermoplastic Nylon | 2 4/5" | Thermoplastic Nylon | €25.38 | |
 |
5362-IGR | Red | Red | NEMA WD-6 | Isolated Ground | 3.3" | Thermoplastic Nylon | 2 4/5" | - | €22.01 | |
 |
5362-IGW | White | White | NEMA WD-1 And NEMA WD-6 | Isolated Ground | 3.3" | Thermoplastic Nylon | 2 4/5" | - | €22.01 | |
 |
5362-IGT | Light Almond | Light Almond | NEMA WD-6 | Isolated Ground | 3.3" | Nylon | - | Nylon | €22.01 |
