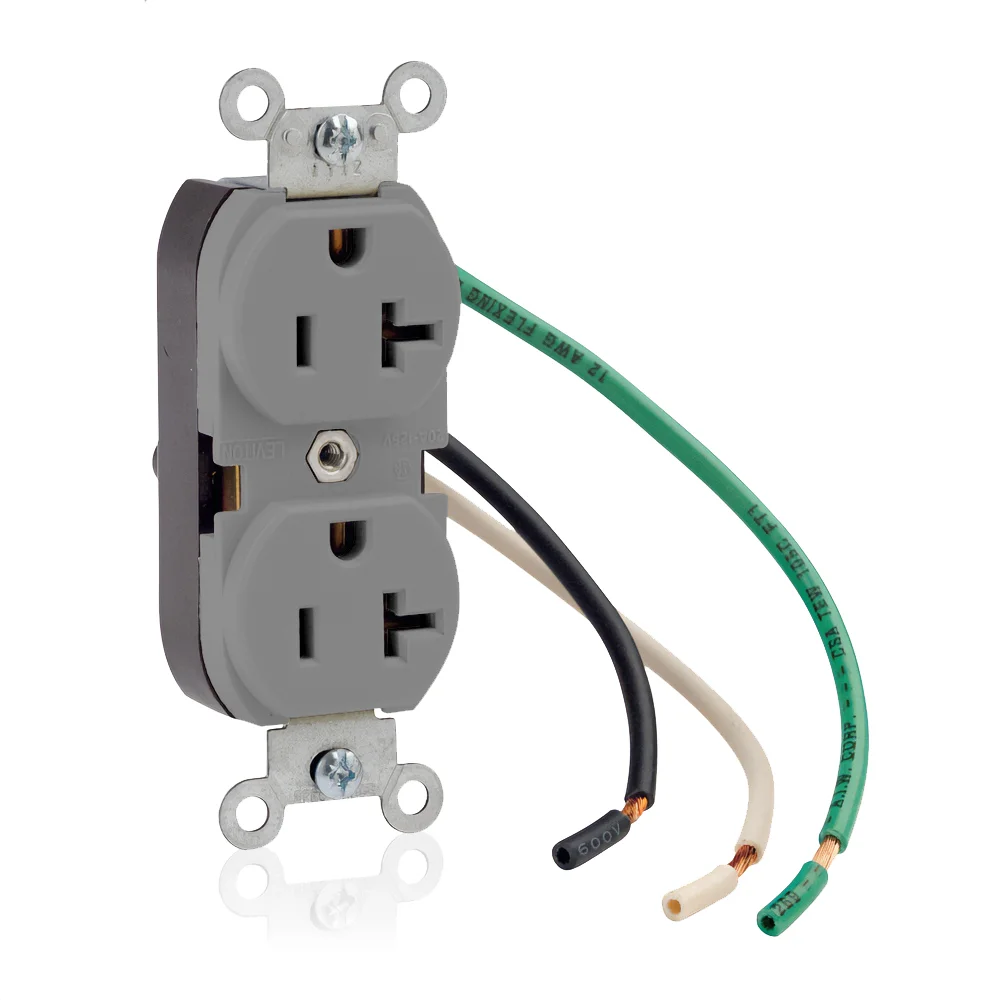

LEVITON 5340-GY Straight Blade Duplex Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray, Nylon, Side Wired
Item: CR9JBCModel: 5340-GYCross Ref: 792TP4
7 In Stock
Ships within 2 days via
5.00% off
€28.56 /unit
This product can only be shipped in multiples of 100Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Ac Hp Ratings At Rated Voltage | 1 hp |
| Amps | 20A |
| Base Material | Thermoplastic |
| Body Material | Nylon |
| Bushing Material | Die Cast Aluminum |
| Color | Gray |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Material | Thermoplastic |
| Cover Type | No Cover |
| Current Interrupting | Certified For Current Interrupting At Full Rated Current |
| Current Rating | 20A |
| Depth | 1.09" |
| Device Type | Duplex Receptacle Outlet |
| Dielectric Voltage Withstand | 2000V Minimum Per UL 498 |
| Face Material | Nylon |
| Face Plate Height | 2 4/5" |
| Face Plate Width | 1.3" |
| Features | Smooth Face |
| Flammability | Rated V-2 Per UL 94 |
| Gfci | No |
| Grade | Commercial |
| Grounding | Grounded , Self Grounding |
| Grounding Leads | 6", #12 AWG |
| Grounding Screw | 12 GA THHN Green Wire Lead 6 Inch |
| Housing Color | Gray |
| Housing Material | Nylon |
| Hp | 1 hp |
| Includes | Isolated Ground |
| Includes Mounting Hardware | Yes |
| Lead Identification | Leads Identified In Accordance With UL 498 (Black, White And Green) |
| Line Contacts Material | Brass |
| Line Contacts Style | Triple Wipe |
| Line Contacts Thickness | 0.031" |
| Max. Operating Temp. | 60°C |
| Max. Working Voltage | 125V |
| Maximum Operating Temperature | 140°F |
| Min. Operating Temp. | -40°C |
| Minimum Operating Temperature | -40°F |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting Hardware Included | Yes |
| Mounting Screws Material | Triple Combination Head, Steel |
| Mounting Strap Finish | Galvanized |
| Mounting Strap Material | Steel |
| Mounting Type | Flush |
| Nema Enclosure Rating | Not Rated |
| Nema Rating | NEMA WD-6 |
| Nema Receptacle Configuration | NEMA 5-20R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temp. | -40°C to +60°C |
| Overall Depth | 1.1" |
| Phase | Single |
| Polarized | Yes |
| Power Contacts | Brass, Triple Wipe |
| Product Datasheet | leviton-5340-gy.pdf |
| Receptacle Type | Duplex |
| Screw Terminal Torque | 14 lbs.-in. to 18 lbs.-in. |
| Standards | Ansi C73, Csa C22.2 No. 42 File E152105, Nema Wd-6, Nom 057 Certified, Ul 498 File E13399 |
| Temp. Rise | Max. 30°C After 100 Cycles Ol At 150 Percent Rated Current |
| Terminal Id | Black Hot, Green Ground, White Neutral |
| Terminal Leads | 6", #12 AWG THHN |
| Terminal Screws | 12 GA THHN Wire Lead 6" |
| Termination | Pre Wired Leads |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Type | Wire Leads |
Shipping Info:
| Ship weight (kg) | 0.96 |
| Ship height (cm) | 23.18 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 3.38 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Receptacle Type | Wire Connection Type | Number Of Poles | Number Of Wires | Housing Color | Wire Connection Location | Phase | Current Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
15379-C | Single | Screw Terminals | 2 | 3 | White | Back | Single | 20A | €62.36 | |
 |
GFWR1-E | Decorator Duplex | Screw Terminals | 2 | 3 | Black | Back, Side | Single | 15A | €73.60 | |
 |
GFNT1 | Decorator Duplex | Screw Terminals | 2 | 3 | Brown | Side | Single | 15A | €45.43 | |
 |
GFNT1-T | Decorator Duplex | Screw Terminals | 2 | 3 | Light Almond | Back, Side | Single | 15A | €50.06 | |
 |
GFWR1-W | Decorator Duplex | Screw Terminals | 2 | 3 | White | Back, Side | Single | 15A | €69.27 | |
 |
GFWR2-E | Decorator Duplex | Screw Terminals | 2 | 3 | Black | Back, Side | Single | 20A | €75.21 | |
 |
GFNT2 | Decorator Duplex | Screw Terminals | 2 | 3 | Brown | Back, Side | Single | 20A | €42.47 |
