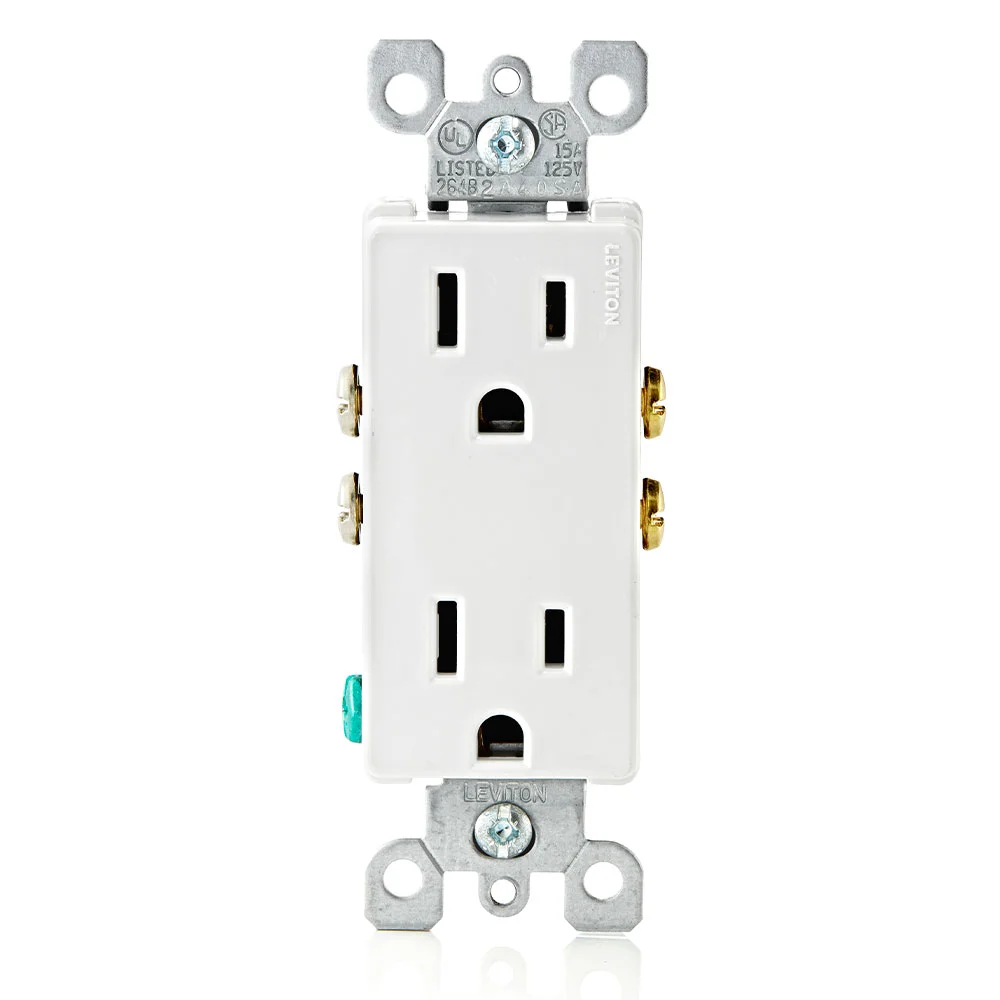

LEVITON 5325-W Straight Blade Duplex Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, White, Quickwire Push-In and Side Wired
Item: CR9HQQModel: 5325-WCross Ref: 792TP3
7 In Stock
Ships within 2 days via
5.00% off
€7.37 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 15A |
| Body Material | Thermoplastic |
| Color | White |
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Current Rating | 15A |
| Depth | 1.14" |
| Face Material | Thermoplastic |
| Face Plate Height | 2 4/5" |
| Face Plate Width | 1.3" |
| Flammability | Rated V-2 Per UL 94 |
| Gfci | No |
| Grade | Federal Specification |
| Ground Clips Material | Brass |
| Grounding | Grounded , Grounding |
| Grounding Screw Material | Steel |
| Grounding Screw Size | #8-32 |
| Housing Color | White |
| Housing Material | Thermoplastic |
| Includes | Grounding Clip |
| Includes Mounting Hardware | Yes |
| Max. Operating Temp. | 60°C |
| Max. Wire Size | 12 AWG |
| Maximum Operating Temperature | 140°F |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 14 AWG |
| Minimum Operating Temperature | -40°F |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Enclosure Rating | Not Rated |
| Nema Rating | NEMA 5-15R |
| Nema Receptacle Configuration | NEMA 5-15R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temp. | -40°C to +60°C |
| Overall Depth | 1.1" |
| Phase | Single |
| Polarized | No |
| Product Datasheet | leviton-5325-w.pdf |
| Receptacle Type | Decorator Duplex |
| Special Resistance | Impact Resistant |
| Standards | Class 6233-01, Csa C22.2 No. 42 File E152105, Nom 057 Certified, Ul 498 File E13399, Ul Listed E-13399, Ul Listed E13399 |
| Strap Material | Steel |
| Terminal Accom. | Side Wiring Accepts #10, #12 And #14 AWG Copper (CU) Or #10 And #12 Copper Clad (CC) Wire, Quickwire Push-In Terminals Accept #14 AWG Solid Copper (CU) Wire Only. |
| Terminal Id | Brass Hot, Green Ground, White Neutral |
| Terminal Screws | Brass |
| Termination | Quickwire Push In And Side |
| Torque Range | 14 lbs.-in. to 18 lbs.-in. |
| Type | Duplex Receptacle |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 27.47 |
| Ship length (cm) | 48.26 |
| Ship width (cm) | 10.67 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Housing Color | Color | Grounding | Depth | Receptacle Type | Current Rating | Voltage Rating | Phase | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

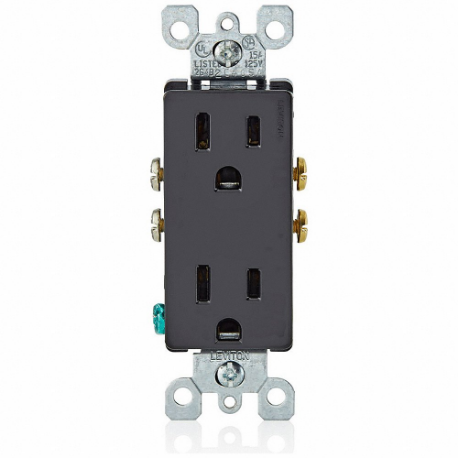

5325-E | Black | Black | Grounded | 0.98" | Decorator Duplex | 15A | 125V AC | Single | €6.27 | |
 |

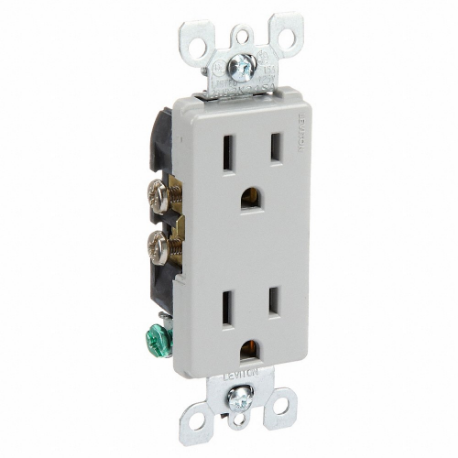

5325-GY | Gray | Gray | Grounded | 0.98" | Decorator Duplex | 15A | 125V AC | Single | €6.33 | |
 |

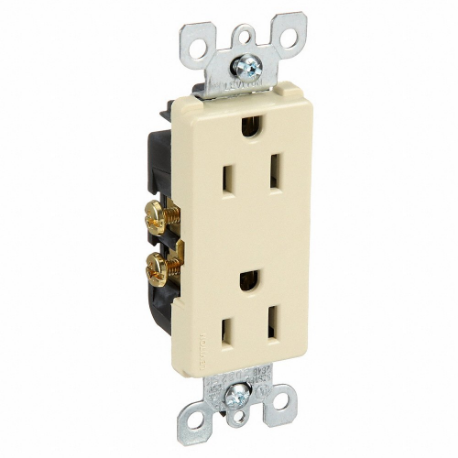

5325-I | Ivory | Ivory | Grounded | 0.98" | Decorator Duplex | 15A | 125V AC | Single | €6.43 | |
 |

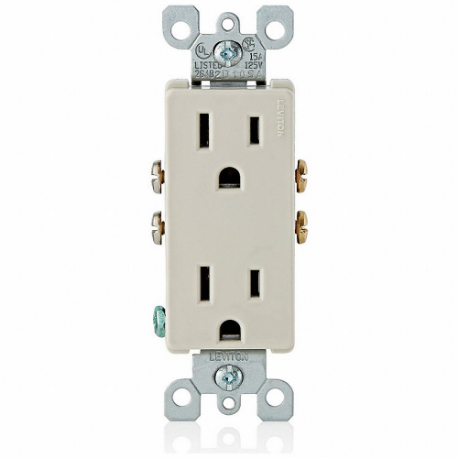

5325-T | Light Almond | Light Almond | Grounded | 0.98" | Decorator Duplex | 15A | 125V AC | Single | €8.71 |
