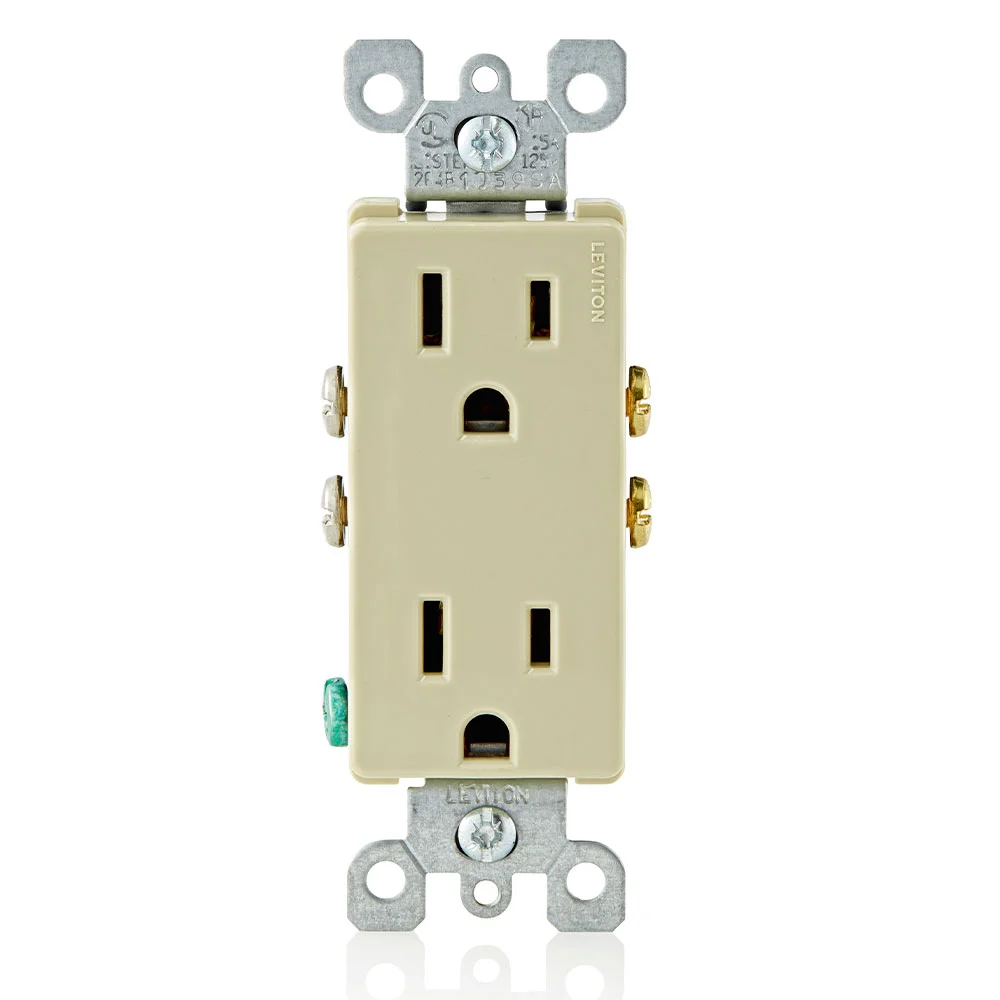

LEVITON 5325-I Receptacle, Decorator Duplex, 5-15R, 15 A, 125V AC, Ivory, 2 Poles, Screw Terminals
Item: CR9HQLModel: 5325-ICross Ref: 792TP1
7 In Stock
Ships within 2 days via
10.00% off
€5.78 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 15A |
| Body Material | Thermoplastic |
| Color | Ivory |
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Current Rating | 15A |
| Depth | 0.98" |
| Face Plate Width | 1.3" |
| Gfci | No |
| Grade | Federal Specification |
| Grounding | Grounded |
| Housing Color | Ivory |
| Housing Material | Thermoplastic |
| Includes | Strap Material |
| Includes Mounting Hardware | Yes |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Enclosure Rating | Not Rated |
| Nema Rating | NEMA 5-15R |
| Nema Receptacle Configuration | NEMA 5-15R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Overall Depth | 1" |
| Phase | Single |
| Polarized | No |
| Receptacle Type | Decorator Duplex |
| Special Resistance | Impact Resistant |
| Standards | Class 6233-01, Csa C22.2 No. 42 File E152105 |
| Type | Duplex Receptacle |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 10.67 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Housing Color | Color | Grounding | Depth | Receptacle Type | Current Rating | Voltage Rating | Phase | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5325-E | Black | Black | Grounded | 0.98" | Decorator Duplex | 15A | 125V AC | Single | €6.27 | |
 |
5325-GY | Gray | Gray | Grounded | 0.98" | Decorator Duplex | 15A | 125V AC | Single | €6.33 | |
 |
5325-T | Light Almond | Light Almond | Grounded | 0.98" | Decorator Duplex | 15A | 125V AC | Single | €8.71 | |
 |
5325-W | White | White | Grounded | 1.14" | Decorator Duplex | 15A | 125V AC | Single | €7.75 |
