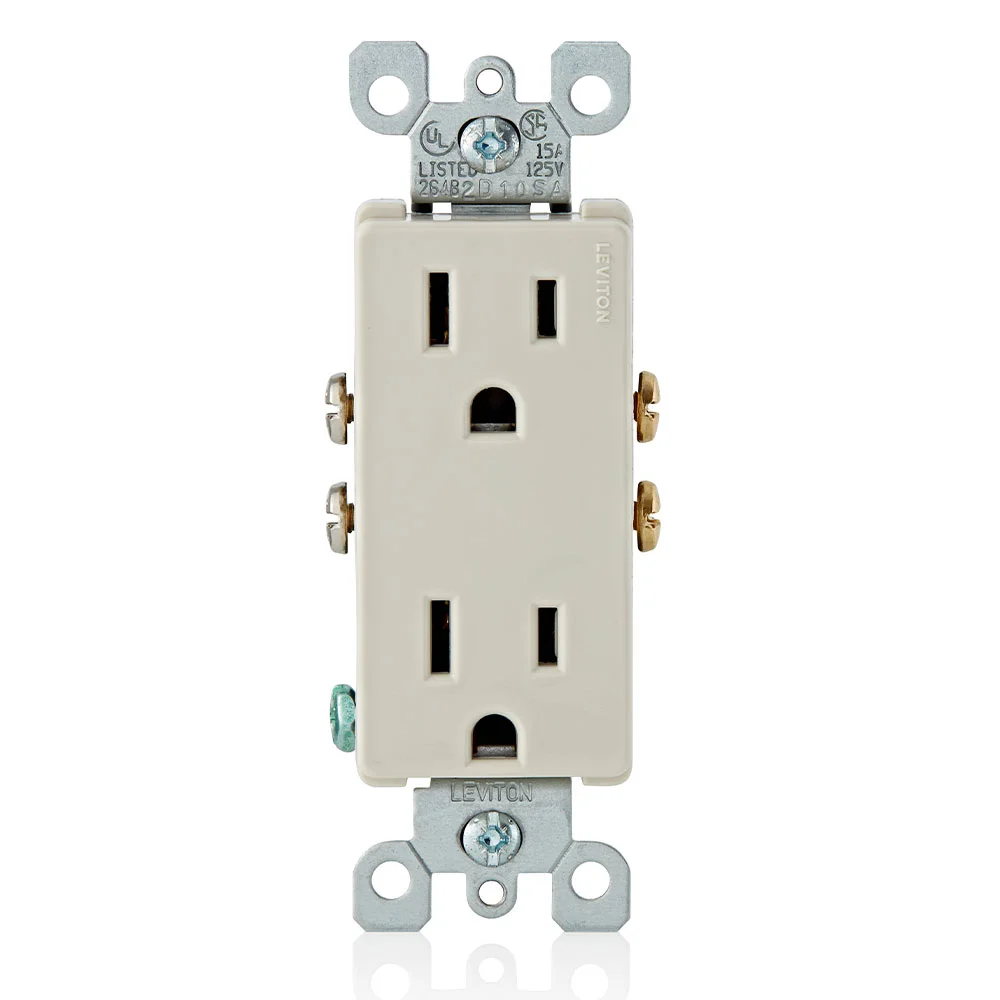

LEVITON 5325-T Duplex Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Light Almond
Item: CR9HQNModel: 5325-TCross Ref: 792TP2
7 In Stock
Ships within 2 days via
5.00% off
€8.28 /unit
This product can only be shipped in multiples of 200Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 15A |
| Body Material | Thermoplastic |
| Color | Light Almond |
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Current Rating | 15A |
| Depth | 0.98" |
| Face Material | Thermoplastic |
| Face Plate Height | 2 4/5" |
| Face Plate Width | 1.3" |
| Gfci | No |
| Grade | Federal Specification |
| Grounding | Grounded , Grounding |
| Housing Color | Light Almond |
| Housing Material | Thermoplastic |
| Includes Mounting Hardware | Yes |
| Max. Wire Size | 12 AWG |
| Min. Wire Size | 14 AWG |
| Mount Hole Center-to-center Height | 3.3" |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Enclosure Rating | Not Rated |
| Nema Rating | NEMA 5-15R |
| Nema Receptacle Configuration | NEMA 5-15R |
| Number Of Outlets | 2 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Overall Depth | 1" |
| Phase | Single |
| Polarized | No |
| Product Datasheet | leviton-5325-t.pdf |
| Receptacle Type | Decorator Duplex |
| Special Resistance | Impact Resistant |
| Standards | Class 6233-01, Csa C22.2 No. 42 File E152105, Ul 498 File E13399 |
| Strap Material | Steel |
| Terminal Accom. | Side Wiring Accepts #10, #12 And #14 AWG Copper (CU) Or #10 And #12 Copper Clad (CC) Wire, Quickwire Push-In Terminals Accept #14 AWG Solid Copper (CU) Wire Only. |
| Termination | Quickwire Push In And Side |
| Torque Range | 14 lbs.-in. to 18 lbs.-in. |
| Type | Duplex Receptacle |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 27.47 |
| Ship length (cm) | 48.26 |
| Ship width (cm) | 10.67 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Housing Color | Color | Grounding | Depth | Receptacle Type | Current Rating | Voltage Rating | Phase | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5325-E | Black | Black | Grounded | 0.98" | Decorator Duplex | 15A | 125V AC | Single | €6.27 | |
 |
5325-GY | Gray | Gray | Grounded | 0.98" | Decorator Duplex | 15A | 125V AC | Single | €6.33 | |
 |
5325-I | Ivory | Ivory | Grounded | 0.98" | Decorator Duplex | 15A | 125V AC | Single | €6.43 | |
 |
5325-W | White | White | Grounded | 1.14" | Decorator Duplex | 15A | 125V AC | Single | €7.75 |
