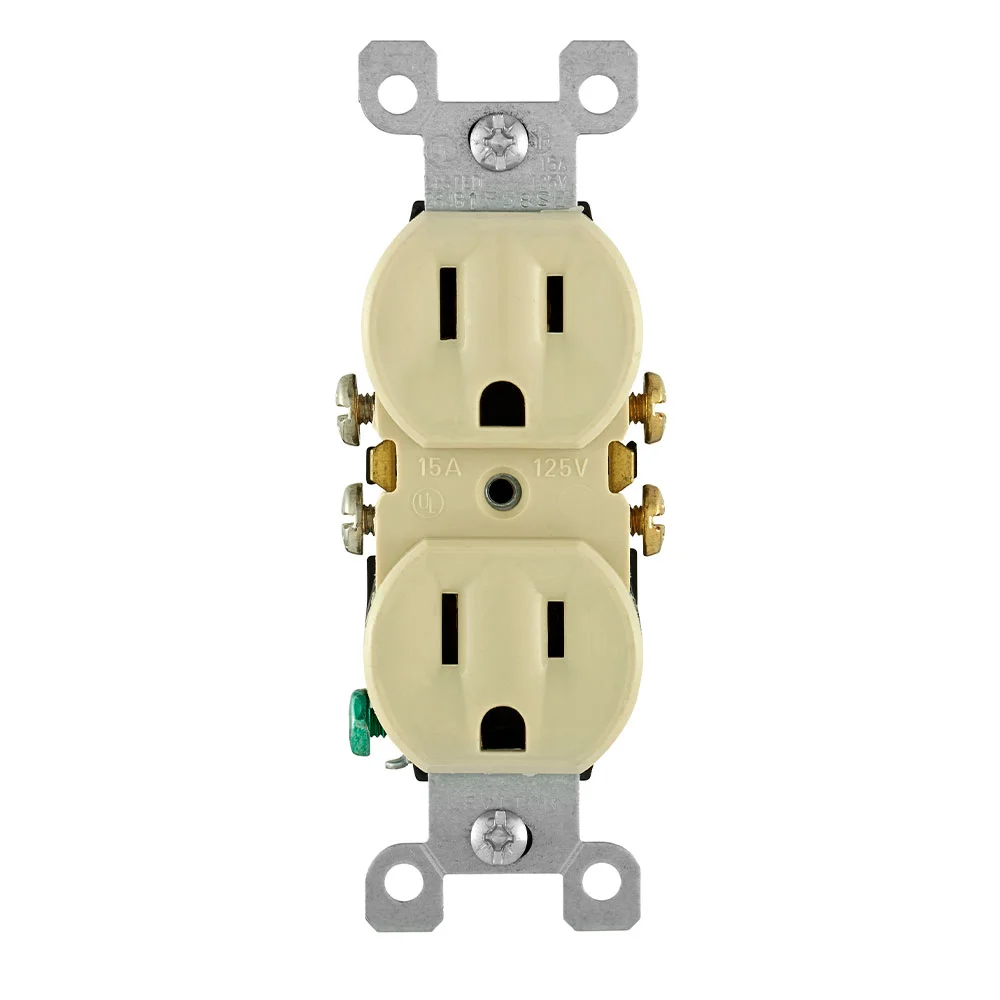

LEVITON 5320-ICP Straight Blade Duplex Receptacle With Ears, 125 VAC, 15 A, 2 Poles, 3 Wires, Ivory
Item: CR9HUGModel: 5320-ICPCross Ref: 792TN6
7 In Stock
Ships within 2 days via
5.00% off
€2.35 /unit
This product can only be shipped in multiples of 200Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 15A |
| Body Material | Thermoplastic |
| Color | Ivory |
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Depth | 0.94" |
| Face Material | Thermoplastic |
| Face Plate Height | 2.77" |
| Face Plate Width | 1.33" |
| Features | All Screws Backed Out |
| Gfci | No |
| Grounding | Grounded , Grounding |
| Housing Color | Ivory |
| Included | Strap Material |
| Mount Hole Center To Center Height | 3 7/25" |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Rating | NEMA 5-15R |
| Nema Receptacle Configuration | NEMA 5-15R |
| No. Of Outlets | 2 |
| No. Of Poles | 2 |
| No. Of Wires | 3 |
| Polarized | No |
| Product Datasheet | leviton-5320-icp.pdf |
| Receptacle Type | Duplex |
| Strap Material | Steel |
| Terminal Accom. | Side Wiring Accepts #10, #12 And #14 AWG Copper (CU) Or #10 And #12 Copper Clad (CC) Wire, Quickwire Push-In Terminals Accept #14 AWG Solid Copper (CU) Wire Only |
| Termination | Quickwire Push In And Side |
| Torque | 14 lbs.-in. to 18 lbs.-in. |
| Type | Duplex Receptacle |
| Voltage | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminal |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 27.47 |
| Ship length (cm) | 48.26 |
| Ship width (cm) | 10.67 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Voltage | No. Of Poles | Mounting Type | Housing Color | Wire Connection Type | Amps | Phase | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
15379-C | 125V AC | 2 | Flush | White | Screw Terminal | 20A | 1 | White | €62.36 | |
 |
GFWR1-E | 125V AC | 2 | Flush | Black | Screw Terminal | 15A | 1 | Black | €73.60 | |
 |
GFNT1 | 125V AC | 2 | Flush | Brown | Screw Terminal | 15A | 1 | Brown | €45.43 | |
 |
GFNT1-T | 125V AC | 2 | Flush | Light Almond | Screw Terminal | 15A | 1 | Light Almond | €50.06 | |
 |
GFWR1-W | 125V AC | 2 | Flush | White | Screw Terminal | 15A | 1 | White | €69.27 | |
 |
GFWR2-E | 125V AC | 2 | Flush | Black | Screw Terminal | 20A | 1 | - | €75.21 | |
 |
GFNT2 | 125V AC | 2 | Flush | Brown | Screw Terminal | 20A | 1 | Brown | €42.47 |
