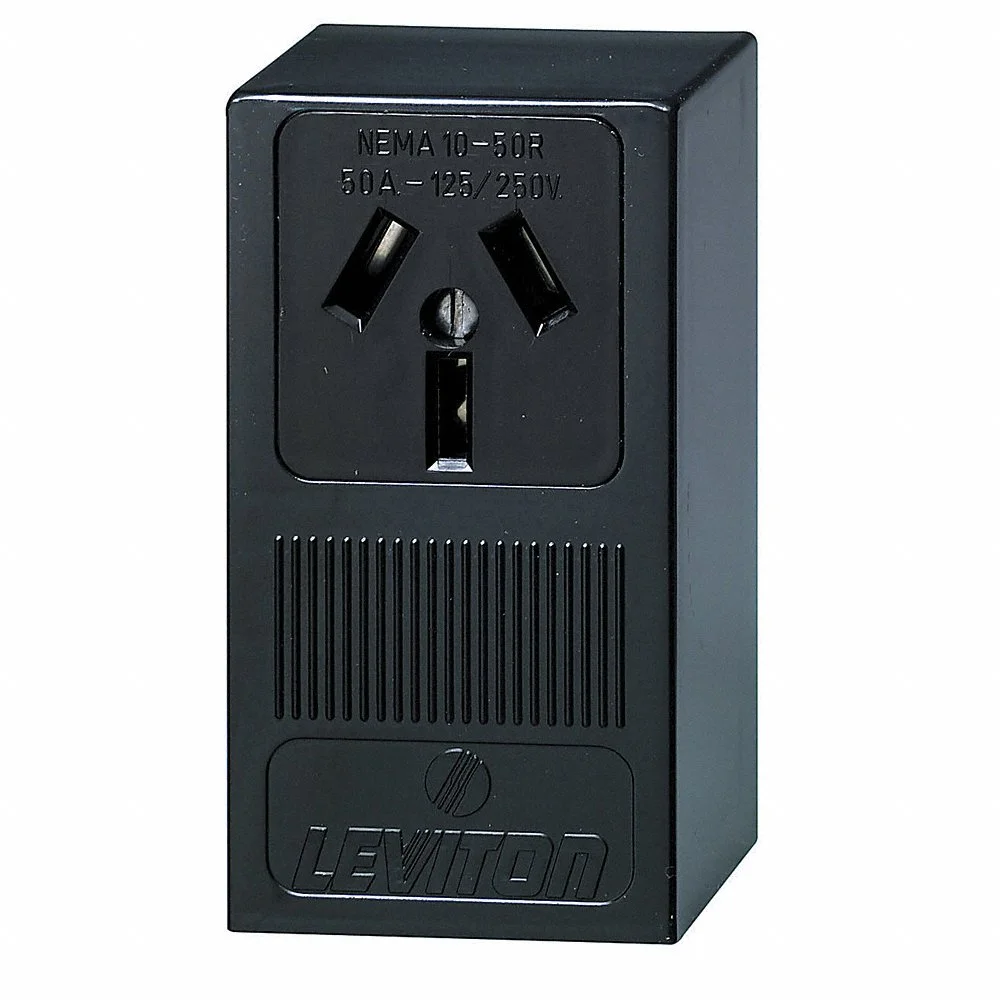

LEVITON 5050-P00 Receptacle, Single, 10-50R, 50 A, 125/250V AC, Black, 3 Poles, Screw Terminals, Std Resist
Item: CR9HYPModel: 5050-P00Cross Ref: 792TJ5
7 In Stock
Ships within 2 days via
10.00% off
€13.31 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Amps | 50A |
| Body Material | Thermoplastic |
| Connection Orientation | Straight |
| Cover Type | No Cover |
| Current Rating | 50A |
| Gfci | No |
| Grade | Federal Specification |
| Grounding | Non Grounded |
| Housing Color | Black |
| Includes | Strap Material |
| Includes Mounting Hardware | Yes |
| Max. Operating Temp. | 60°C |
| Maximum Operating Temperature | 140°F |
| Min. Operating Temp. | -40°C |
| Minimum Operating Temperature | -40°F |
| Mounting Type | Surface |
| Nema Enclosure Rating | Not Rated |
| Nema Receptacle Configuration | NEMA 10-50R |
| Number Of Outlets | 1 |
| Number Of Poles | 3 |
| Number Of Wires | 3 |
| Phase | Single |
| Polarized | No |
| Receptacle Type | Single |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125/250V AC |
| Voltage Rating | 125/250V AC |
| Wire Connection Location | Side |
| Wire Connection Type | Screw Terminals |
Shipping Info:
| Ship weight (kg) | 0.34 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Receptacle Type | Wire Connection Type | Number Of Poles | Number Of Wires | Housing Color | Wire Connection Location | Phase | Current Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
15379-C | Single | Screw Terminals | 2 | 3 | White | Back | Single | 20A | €62.36 | |
 |
GFWR1-E | Decorator Duplex | Screw Terminals | 2 | 3 | Black | Back, Side | Single | 15A | €73.60 | |
 |
GFNT1 | Decorator Duplex | Screw Terminals | 2 | 3 | Brown | Side | Single | 15A | €45.43 | |
 |
GFNT1-T | Decorator Duplex | Screw Terminals | 2 | 3 | Light Almond | Back, Side | Single | 15A | €50.06 | |
 |
GFWR1-W | Decorator Duplex | Screw Terminals | 2 | 3 | White | Back, Side | Single | 15A | €69.27 | |
 |
GFWR2-E | Decorator Duplex | Screw Terminals | 2 | 3 | Black | Back, Side | Single | 20A | €75.21 | |
 |
GFNT2 | Decorator Duplex | Screw Terminals | 2 | 3 | Brown | Back, Side | Single | 20A | €42.47 |
