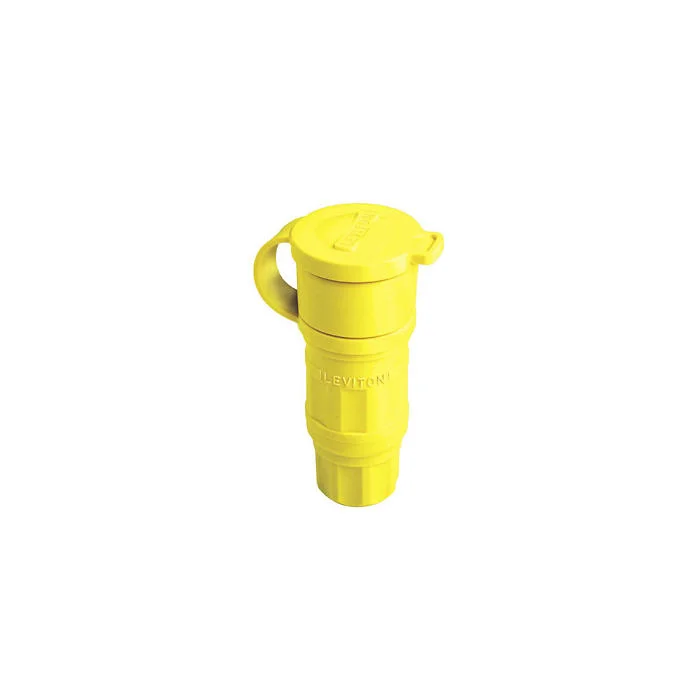

LEVITON 29W08 Locking Connector, 125/250 VAC, 30 A, 3 Poles, 3 Wires, Yellow
Item: CR9JDZModel: 29W08Cross Ref: 792TE9
7 In Stock
Ships within 2 days via
5.00% off
€265.64 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Connector |
| Amps | 30A |
| Assembly Screws Grade | Grade 300 |
| Assembly Screws Material | Stainless Steel |
| Blades/contacts | Nickel Plated Brass |
| Body Interior | Nylon |
| Body Material | EPTR Rubber , Santoprene TPV |
| Bushing Material | Santoprene TPV |
| Cap Type | Press On Cap |
| Color | Yellow |
| Compression Nut, Strain Relief | Nylon |
| Connection Orientation | Straight |
| Contact Material | Nickel Plated Brass |
| Cord Grip Range | 0.625" to 1.125" |
| Current Limiting | Full Rated Current |
| Current Rating | 30A |
| Device Type | Locking Connector |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Environment | Wet |
| Face Dia. | 2 3/4" |
| Face Diameter | 2.75" |
| Flammability | Rated V-2 Per UL 94 |
| For Environment | Wet |
| For Maximum Cable Diameter | 1 1/8" |
| For Minimum Cable Diameter | 5/8" |
| Grade | General Use |
| Grounding | Grounded , Non Grounding |
| Housing Color | Yellow |
| Housing Material | Santoprene Tpv |
| Insulation Material | Nylon |
| Ip Rating | IP69K |
| Length | 5 13/25" |
| Market | Industrial |
| Max. Operating Temp. | 60°C |
| Maximum Operating Temperature | 140°F |
| Maximum Wire Size | 8 AWG |
| Midget Locking | No |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 12 AWG |
| Minimum Operating Temperature | -40°F |
| Nema Rating | NEMA WD-6 |
| Nema Receptacle Configuration | Non-NEMA |
| Number Of Poles | 3 |
| Number Of Wires | 3 |
| Operating Temp. | -40°C to +60°C |
| Outside Dia. | 2 3/4" |
| Outside Diameter | 2.75" |
| Overall Length | 5.52" |
| Polarized | Yes |
| Product Datasheet | leviton-5410-w.pdf |
| Resistance Properties | Watertight |
| Shrouded | Yes |
| Standards | Ansi C73, Csa C22.2 No. 42 File Lr-406, Nema Wd-6, Nom 057 Certified, Rohs Compliant, Ul 498 |
| Temp. Rise | Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current |
| Terminal Accom. | #12 to #8 |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws Finish | Electroless Nickel Coated |
| Terminal Screws Material | Brass |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125/250V AC |
| Voltage Rating | 125/250V AC |
| Wire Connection Type | Screw Terminals |
| Wire Module | Nylon |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 31.12 |
| Ship length (cm) | 40.01 |
| Ship width (cm) | 6.99 |
| Country of Origin | MX |
Documentation:
Product Variants
| Model | Voltage Rating | Number Of Poles | Number Of Wires | Ip Rating | Current Rating | Amps | Grounding | For Minimum Cable Diameter | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 25W07 | 125/250V AC | 3 | 3 | IP66, IP67, IP69K | 10/15A | 15/10A | Non Grounded | 0.234" | €102.17 | |
| 27W09 | 120/208V AC | 4 | 4 | IP67 | 20A | 20A | Non Grounded | 3/8" | €210.58 | |
| 27W08-G | 125/250V AC | 3 | 3 | IP67 | 20A | 20A | Grounded | 3/8" | €97.05 | |
| 27W10 | 250V AC | 4 | 5 | IP67 | - | 20/10A | Non Grounded | 3/8" | €444.77 |
