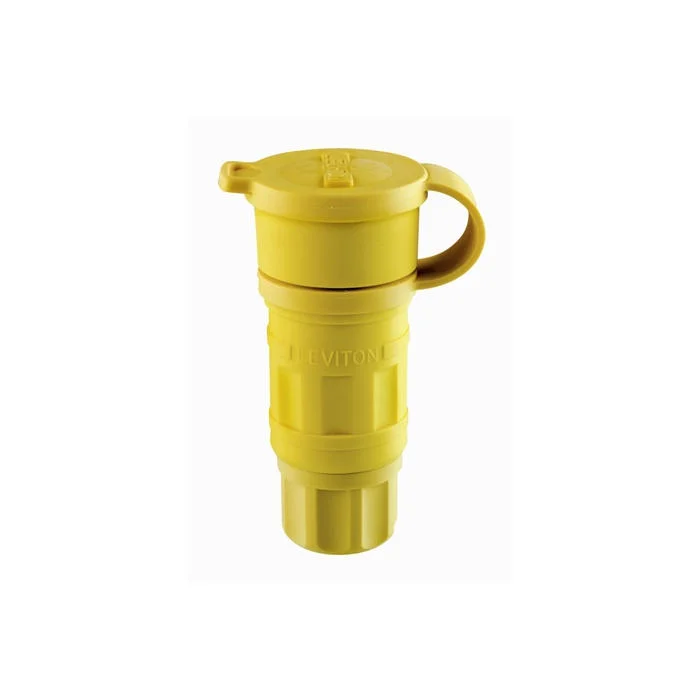

LEVITON 27W08-G Watertight Locking Connector, Non-NEMA, 20 A, 125/250VAC, 3 Poles, Yellow, Gen Use
Item: CR9GYTModel: 27W08-GCross Ref: 792TC4
7 In Stock
Ships within 2 days via
10.00% off
€87.35 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Connector |
| Amps | 20A |
| Body Material | Santoprene TPV |
| Cap Type | Press On Cap |
| Color | Yellow |
| Connection Orientation | Straight |
| Contact Material | Nickel Plated Brass |
| Current Rating | 20A |
| Environment | Wet |
| Face Dia. | 2 1/2" |
| Face Diameter | 2.5" |
| For Environment | Wet |
| For Maximum Cable Diameter | 7/8" |
| For Minimum Cable Diameter | 3/8" |
| Grade | General Use |
| Grounding | Grounded |
| Housing Color | Yellow |
| Housing Material | Santoprene Tpv |
| Insulation Material | Nylon |
| Ip Rating | IP67 |
| Length | 5 13/25" |
| Market | Industrial |
| Max. Operating Temp. | 60°C |
| Max. Wire Size | 10 AWG |
| Maximum Operating Temperature | 140°F |
| Midget Locking | No |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 16 AWG |
| Minimum Operating Temperature | -40°F |
| Nema Receptacle Configuration | Non-NEMA |
| Number Of Poles | 3 |
| Number Of Wires | 3 |
| Outside Dia. | 2 1/2" |
| Outside Diameter | 2.5" |
| Overall Length | 5.52" |
| Polarized | Yes |
| Resistance Properties | Watertight |
| Shrouded | Yes |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125/250V AC |
| Voltage Rating | 125/250V AC |
| Wire Connection Type | Screw Terminals |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.36 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 14.02 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Model | Voltage Rating | Number Of Poles | Number Of Wires | Ip Rating | Current Rating | Amps | Grounding | For Minimum Cable Diameter | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 25W07 | 125/250V AC | 3 | 3 | IP66, IP67, IP69K | 10/15A | 15/10A | Non Grounded | 0.234" | €102.17 | |
| 27W09 | 120/208V AC | 4 | 4 | IP67 | 20A | 20A | Non Grounded | 3/8" | €210.58 | |
| 29W08 | 125/250V AC | 3 | 3 | IP69K | 30A | 30A | Grounded | 5/8" | €279.62 | |
| 27W10 | 250V AC | 4 | 5 | IP67 | - | 20/10A | Non Grounded | 3/8" | €444.77 |
