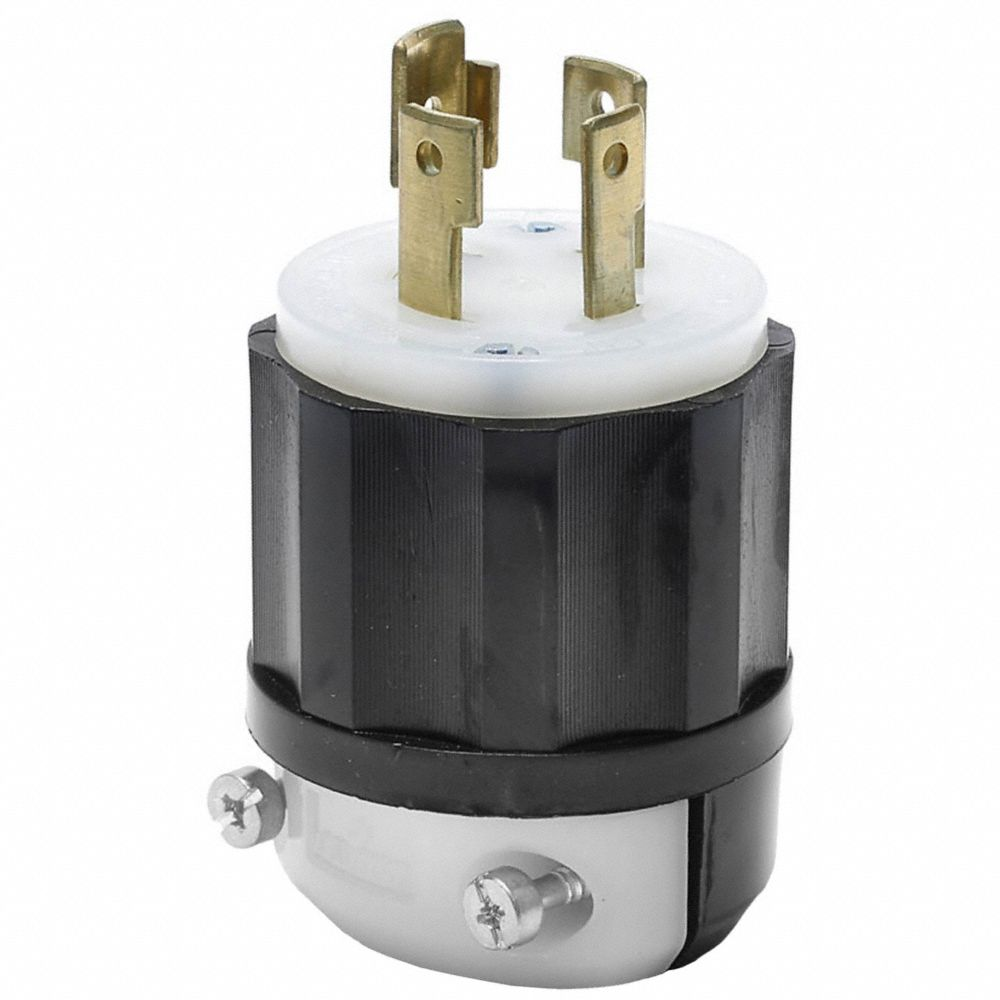

LEVITON 2751 Non-Grounding Cable Mount Locking Plug, 3-Phase, 120/208 VAC, 30 A, 4 Poles, 4 Wires, Black/White
Item: EA6PZDModel: 2751Cross Ref: 792TA7
7 In Stock
Ships within 2 days via
5.00% off
€73.79 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Plug |
| Amps Interrupting | Certified For Current Interrupting At Full Rated Current |
| Amps Rating | 30A |
| Ansi | C-73 |
| Application | Industrial Applications |
| Assembly Screws | Steel, Zinc Plated |
| Back Cover | Thermoplastic |
| Blade Material | Solid Brass |
| Body Length | 2.7" |
| Color - Plugs And Receptacles | Black |
| Connection Orientation | Straight |
| Contact Type | Plug |
| Cord Size | 0.234" to 0.687" |
| Dielectric Voltage | Withstands 2000v Per UL498 |
| Dimension S | 2.22" x 2.7" |
| Face Dia. | 1.97" |
| Flammability | Rated HB or Better UL94 |
| For Max. Cable Dia. | 1.15" |
| For Min. Cable Dia. | 0.595" |
| Grade | Grade Industrial |
| Grounding | Non-Grounding |
| Height | 4.938" |
| Housing Color | Black, White |
| Ip Rating | Not Rated |
| Length | 11.813" |
| Material | Nylon |
| Max. Operating Temp. | 60°C |
| Max. Wire Size | 8 AWG |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 14 AWG |
| Mounting Type | Cable |
| Nema Configuration | L18-30 , WD-6 |
| Nema Plug Configuration | NEMA L18-30P |
| No. Of Blades | 4 |
| No. Of Poles | 4 |
| Outside Dia. | 2.22" |
| Phase | 3 |
| Polarized | Yes |
| Primary Type | Twist Lock |
| Resistance Properties | Chemical Resistant, Impact Resistant, UV, Sunlight Resistant |
| Shrouded | No |
| Temp. Rise | Max 30°C After 250 Cycles OL at 200% Rated Current |
| Terminal Inside Dia. | Brass Hot, Green Ground, Silver Neutral |
| Torque | 10 lbs.-in. to 14 lbs.-in. |
| Type | 3 Phase Non Grounding Cable Mount |
| Ul 94 Flammability Rating | HB |
| Voltage Rating | 120/208V AC |
| Wire Connection Type | Screw Terminal |
| Wire Size | 14 AWG to 8 AWG |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 1.82 |
| Ship height (cm) | 11.75 |
| Ship length (cm) | 30.01 |
| Ship width (cm) | 12.54 |
| Country of Origin | US |
Product Variants
| Product | Model | No. Of Poles | For Max. Cable Dia. | Housing Color | Connection Orientation | Phase | For Min. Cable Dia. | Voltage | Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
4880-C | 3 | 0.7" | Black, White | Straight | 3 | - | 250V AC | 15A | €73.86 | |
 |
2741 | 3 | 1.15" | Black, White | Straight | 3 | 0.595" | 600V AC | 30A | €81.37 | |
 |
7102-C | 2 | 0.7" | Black, White | Straight | 1 | 0.245" | 250V AC | 20A | €36.84 | |
 |
4720-C | 2 | 0.685" | Black, White | Straight | 1 | 0.23" | 125V AC | 15A | €29.56 | |
 |
2311-PLC | 2 | 0.78" | Black, White | Straight | - | 0.385" | 125V AC | 20A | €59.06 | |
 |
4570-C | 2 | 0.685" | Black, White | Straight | 1 | 0.23" | 250V AC | 15A | €33.06 | |
 |
2341 | 2 | 0.78" | Black, White | Straight | 1 | 0.385" | 480V AC | 20A | €50.39 |
