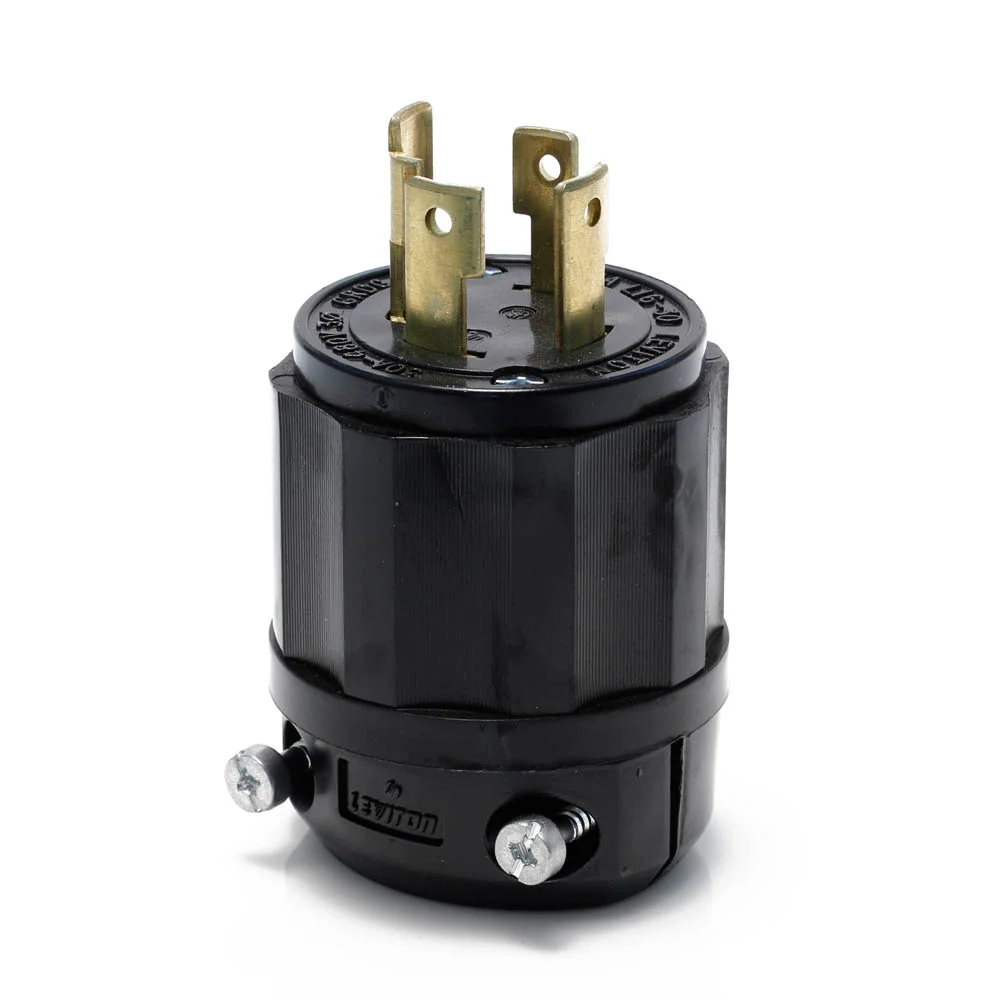

LEVITON 2731-B Grounding Cable Mount Locking Plug, 3-Phase, 480 VAC, 30 A, 3 Poles, 4 Wires, Black
Item: CR9HDXModel: 2731-BCross Ref: 792TA4
7 In Stock
Ships within 2 days via
5.00% off
€70.19 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Locking Plug |
| Ac Hp Ratings At Rated Voltage | 10 hp |
| Amps | 30A |
| Assembly Screws Finish | Zinc Plated |
| Assembly Screws Material | Steel |
| Back Cover | Thermoplastic |
| Blade Material | Brass |
| Blades/contacts | Solid Brass |
| Body Material | Nylon |
| Clamp Insert Material | Nylon |
| Color | Black |
| Connection Orientation | Straight |
| Cord Range | 0.595" to 1.15" |
| Cord-clamp | Nylon |
| Current Interrupting | Certified For Current Interrupting At Full Rated Current |
| Current Rating | 30A |
| Device Type | Locking Plug |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Environment | Dry |
| Face Dia. | 1.97" |
| Flammability | Rated HB Or Better UL94 |
| For Environment | Dry |
| For Maximum Cable Diameter | 1.15" |
| For Minimum Cable Diameter | 0.595" |
| Grade | Federal Specification |
| Grounding | Grounded , Grounding |
| Housing Color | Black |
| Housing Material | Nylon |
| Hp Rating | 10 hp |
| Market | Industrial |
| Max. Operating Temp. | 60°C |
| Maximum Wire Size | 8 AWG |
| Midget Locking | No |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 14 AWG |
| Nema Plug Configuration | L16-30P |
| Nema Rating | NEMA WD-6 |
| No. Of Phase | 3 |
| Number Of Blades | 4 |
| Number Of Poles | 3 |
| Operating Temp. | -40°C to +60°C |
| Phase | 3.0 |
| Polarized | Yes |
| Resistance Properties | Chemical Resistant, Impact Resistant, UV/Sunlight Resistant |
| Temp. Rise | Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current |
| Terminal Accom. | 18 AWG to 10 AWG |
| Terminal Id | Brass Hot, Green Ground, Silver Neutral |
| Terminal Screws | Brass |
| Ul 94 Flammability Rating | HB |
| Voltage | 480V AC |
| Voltage Rating | 480V AC |
| Wire | 4 |
| Wire Connection Type | Screw Terminals |
| Wire Gauge | 14 AWG to 8 AWG |
| Wire Module | Nylon |
| Wiring Style | Standard |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 13.65 |
| Ship length (cm) | 29.85 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Connection Orientation | Number Of Poles | Number Of Blades | Housing Color | Current Rating | Voltage Rating | Phase | Grade | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
4880-C | Straight | 3 | 3 | Black, White | 15A | 250V AC | 3.0 | General Use | €73.86 | |
 |
2741 | Straight | 3 | 4 | Black, White | 30A | 600V AC | 3.0 | Federal Specification | €81.37 | |
 |
7102-C | Straight | 2 | 2 | Black, White | 20A | 250V AC | Single | Federal Specification | €36.84 | |
 |
4720-C | Straight | 2 | 3 | Black, White | 15A | 125V AC | Single | Federal Specification | €29.56 | |
 |
2311-PLC | Straight | 2 | 3 | Black, White | - | - | - | Federal | €59.06 | |
 |
4570-C | Straight | 2 | 3 | Black, White | 15A | 250V AC | Single | Federal Specification | €33.06 | |
 |
2341 | Straight | 2 | 3 | Black, White | 20A | 480V AC | Single | Federal Specification | €50.39 |
