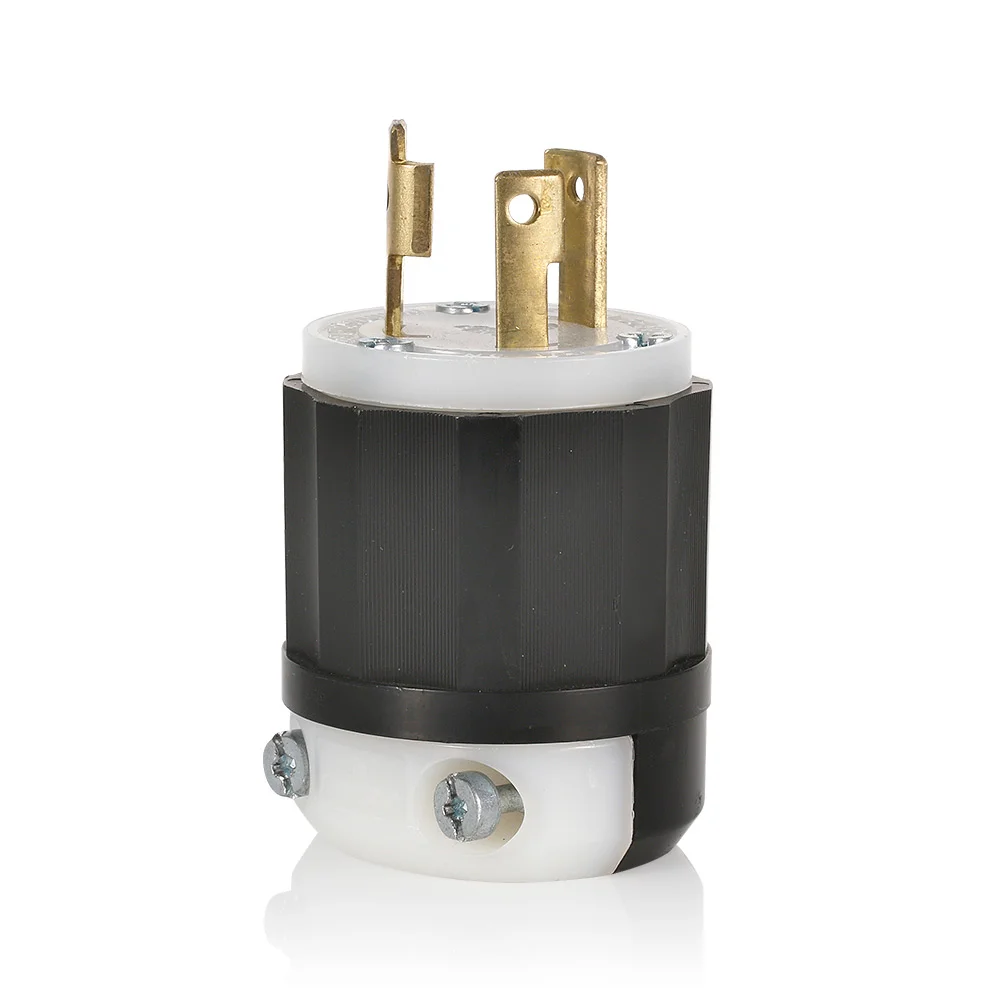

LEVITON 2611 Locking Plug, L5-30P, 125V AC, 30 A, 2 Poles, Black/White, Screw Terminals, L5-30 | CR9HDW 792T73

LEVITON 2611 Locking Plug, 125 VAC, 30 A, 2 Poles, 3 Wires, Black/White

Item: CR9HDWModel: 2611Cross Ref: 792T73
7 In Stock

Ships within 2 days via

€70.18
5.00% off
€66.68 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Locking Plug
Ac Hp Ratings At Rated Voltage 2 hp
Amps 30A
Assembly Screws Finish Zinc Plated
Assembly Screws Material Steel
Back Cover Thermoplastic
Blade Material Brass
Blades/contacts Solid Brass
Body Length 2.49"
Body Material Nylon
Clamp Insert Material Nylon
Color Black And White
Connection Orientation Straight
Cord Range 0.52" to 0.93"
Cord-clamp Nylon
Current Interrupting Certified For Current Interrupting At Full Rated Current
Current Rating 30A
Device Type Locking Plug
Dielectric Voltage Withstands 2000V Per UL498
Environment Dry
Face Dia. 1 21/25"
Face Diameter 1.84"
Flammability Rated V-2 Per UL 94
For Environment Dry
For Maximum Cable Diameter 0.93"
For Minimum Cable Diameter 13/25"
Grade Federal Specification
Grounding Grounded , Grounding
Housing Color Black, White
Housing Material Nylon
Hp Rating 2 hp
Ip Rating Not Rated
Length 3.47"
Market Industrial
Max. Operating Temp. 60°C
Maximum Wire Size 8 AWG
Midget Locking No
Min. Wire Size 16 AWG
Minimum Operating Temperature -40°C
Nema Plug Configuration L5-30P
Nema Rating NEMA WD-6
No. Of Wires 3
Number Of Blades 3
Number Of Poles 2
Operating Temp. -40°C to +60°C
Outside Dia. 2 2/25"
Outside Diameter 2.08"
Overall Length 3.47"
Phase Single
Polarized Yes
Product Datasheet leviton-5410-w.pdf
Resistance Properties Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
Shrouded No
Temp. Rise Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current
Terminal Accom. 18 AWG to 10 AWG
Terminal Id Brass Hot, Green Ground, Silver Neutral
Terminal Screws Brass
Torque Range 10 lbs.-in. to 14 lbs.-in.
Ul 94 Flammability Rating HB
Voltage 125V AC
Voltage Rating 125V AC
Wire Connection Type Screw Terminals
Wire Gauge 16 AWG to 8 AWG
Wire Module Nylon
Wiring Style Standard

Shipping Info:

Ship weight (kg) 0.14
Ship height (cm)12.54
Ship length (cm)30.01
Ship width (cm)5.87
Country of OriginMX

Documentation:

Datasheet

Product Variants

ProductModelConnection OrientationNumber Of PolesNumber Of BladesHousing ColorCurrent RatingVoltage RatingPhaseGradePrice
LEVITON 4880-C Locking Plug, L11-15P, 250V AC, 15 A, 3 Poles, Black/White, Screw Terminals | CR9HDF 792TH5 4880-CStraight33Black, White15A250V AC3.0General Use€73.86
LEVITON 2741 Locking Plug, L17-30P, 600V AC, 30 A, 3 Poles, Black/White, Screw Terminals, L17-30 | CR9HDH 792TA6 2741Straight34Black, White30A600V AC3.0Federal Specification€81.37
LEVITON 7102-C Locking Plug, L2-20P, 250V AC, 20 A, 2 Poles, Black/White, Screw Terminals, L2-20 | CR9HDJ 792TX6 7102-CStraight22Black, White20A250V ACSingleFederal Specification€36.84
LEVITON 4720-C Locking Plug, L5-15P, 125V AC, 15 A, 2 Poles, Black/White, Screw Terminals, L5-15 | CR9HDK 792TH0 4720-CStraight23Black, White15A125V ACSingleFederal Specification€29.56
LEVITON 2311-PLC Locking Plug, L5-20P, 125V AC, 20 A, 2 Poles, Black/White, Screw Terminals, L5-20 | CR9HDM 792T40 2311-PLCStraight23Black, White---Federal€59.06
LEVITON 4570-C Locking Plug, L6-15P, 250V AC, 15 A, 2 Poles, Black/White, Screw Terminals, L6-15 | CR9HDN 792TG8 4570-CStraight23Black, White15A250V ACSingleFederal Specification€33.06
LEVITON 2341 Locking Plug, L8-20P, 480V AC, 20 A, 2 Poles, Black/White, Screw Terminals, L8-20 | CR9HDQ 792T48 2341Straight23Black, White20A480V ACSingleFederal Specification€50.39
