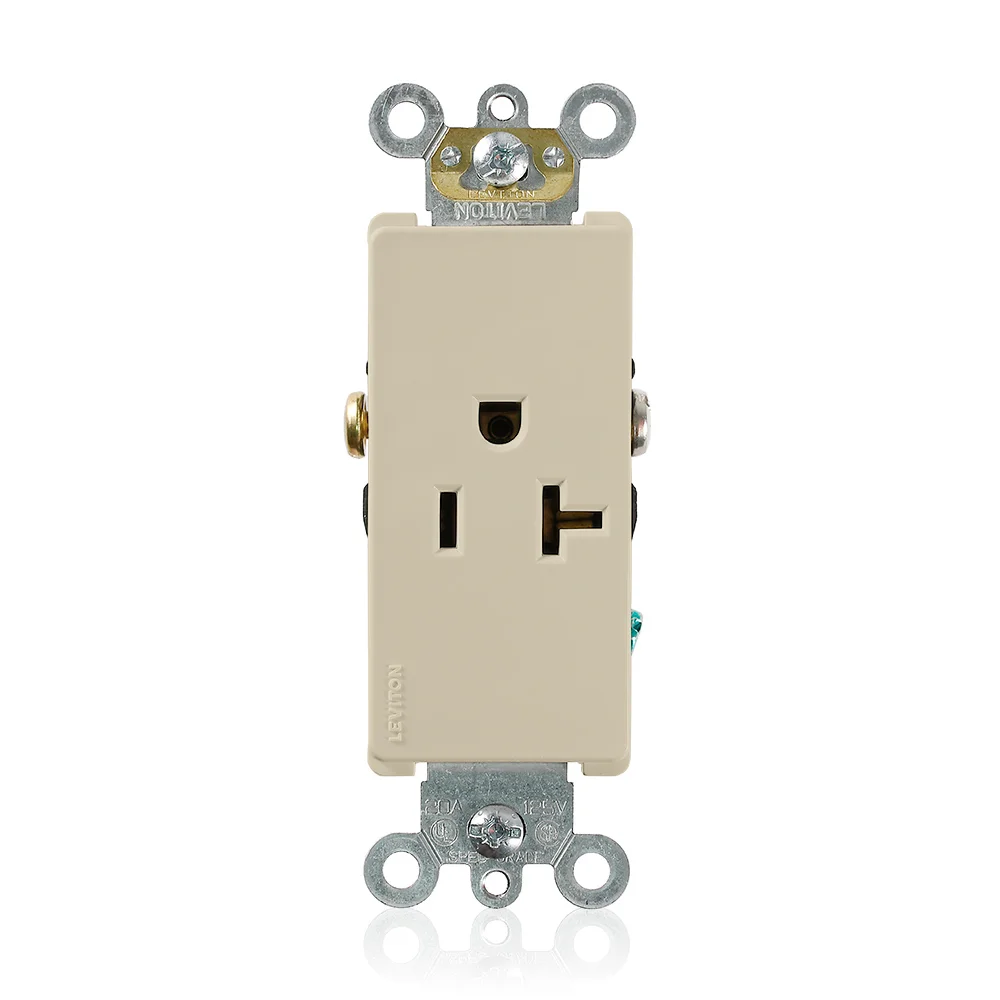

LEVITON 16351-I Straight Blade Single Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory
Item: CR9HZPModel: 16351-ICross Ref: 792T11
7 In Stock
Ships within 2 days via
5.00% off
€28.04 /unit
This product can only be shipped in multiples of 100Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Receptacle |
| Ac Hp Ratings At Rated Voltage | 1 hp |
| Amps | 20A |
| Body Material | Thermoplastic , Thermoplastic Nylon |
| Clamp Nuts Finish | Zinc Plated |
| Clamp Nuts Material | Steel |
| Color | Ivory |
| Connection Orientation | Straight |
| Contact Material | Brass |
| Cover Type | No Cover |
| Current Limiting | Full Rated Current |
| Current Rating | 20A |
| Device Type | Single Receptacle Outlet |
| Dielectric Voltage | Withstands 2000V Per UL498 |
| Face Material | Thermoplastic Nylon |
| Face Plate Height | 2 4/5" |
| Face Plate Width | 1.3" |
| Features | Smooth Face |
| Flammability | Rated V-2 Per UL 94 |
| Gfci | No |
| Grade | Commercial |
| Ground Clips Material | Brass |
| Grounding | Grounded , Self Grounding |
| Grounding Screw Material | Brass |
| Grounding Screw Size | #8-32 |
| Housing Color | Ivory |
| Hp | 1 hp |
| Includes | Strap Material |
| Includes Mounting Hardware | Yes |
| Line Contacts Material | Brass |
| Line Contacts Style | Triple Wipe |
| Line Contacts Thickness | 0.031" |
| Max. Wire Size | 10 AWG |
| Maximum Operating Temperature | 140°F |
| Min. Operating Temp. | -40°C |
| Min. Wire Size | 14 AWG |
| Minimum Operating Temperature | -40°F |
| Mounting Hardware Included | Yes |
| Mounting Type | Flush |
| Nema Enclosure Rating | Not Rated |
| Nema Rating | NEMA WD-6 |
| Number Of Outlets | 1 |
| Number Of Poles | 2 |
| Number Of Wires | 3 |
| Operating Temp. | -40°C to +60°C |
| Phase | Single |
| Polarized | Yes |
| Product Datasheet | leviton-5410-w.pdf |
| Receptacle Type | Single |
| Standards | Ansi C73, Nema Wd-6, Ul 498 File E13399 |
| Strap Material | Steel |
| Temp. Rise | Max. 30°C After 250 Cycles Ol At 200 Percent Rated Current |
| Terminal Accom. | 14 AWG to 10 AWG |
| Terminal Id | Brass Hot, Green Ground, White Neutral |
| Terminal Screws | Brass 10-32 |
| Termination | Back Or Side Wire |
| Ul 94 Flammability Rating | V-2 |
| Voltage | 125V AC |
| Voltage Rating | 125V AC |
| Wire Connection Location | Back, Side |
| Wire Connection Type | Screw Terminals |
| Yoke Finish | Zinc Plated |
| Yoke Material | Steel |
Shipping Info:
| Ship weight (kg) | 0.81 |
| Ship height (cm) | 25.4 |
| Ship length (cm) | 50.8 |
| Ship width (cm) | 3.51 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Receptacle Type | Wire Connection Type | Number Of Poles | Number Of Wires | Housing Color | Wire Connection Location | Phase | Current Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
15379-C | Single | Screw Terminals | 2 | 3 | White | Back | Single | 20A | €62.36 | |
 |
GFWR1-E | Decorator Duplex | Screw Terminals | 2 | 3 | Black | Back, Side | Single | 15A | €73.60 | |
 |
GFNT1 | Decorator Duplex | Screw Terminals | 2 | 3 | Brown | Side | Single | 15A | €45.43 | |
 |
GFNT1-T | Decorator Duplex | Screw Terminals | 2 | 3 | Light Almond | Back, Side | Single | 15A | €50.06 | |
 |
GFWR1-W | Decorator Duplex | Screw Terminals | 2 | 3 | White | Back, Side | Single | 15A | €69.27 | |
 |
GFWR2-E | Decorator Duplex | Screw Terminals | 2 | 3 | Black | Back, Side | Single | 20A | €75.21 | |
 |
GFNT2 | Decorator Duplex | Screw Terminals | 2 | 3 | Brown | Back, Side | Single | 20A | €42.47 |
