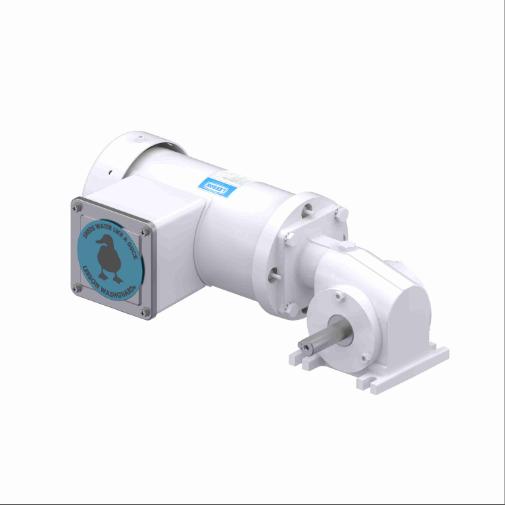

LEESON M1145147.00 CM38T17FZ23A Right Angle Gearmotor, 0.38 HP, 3 Phase, 60 Hz, 190V, 172 RPM
Get it by Tuesday, Dec 23
€1,296.91 /unit
This product can only be shipped in multiples of 40Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Gearmotor |
| Ambient Temp. | 40°C |
| Amps | 1.4-1.3A |
| Assembly | M1041319 |
| Base To Center Of Shaft | 1.67" |
| Bearing Size | 6201-13 |
| Bearing Type | Ball |
| Capacitor Required | Yes |
| Code | G |
| Connection | Const Torque Speed Range |
| Drive End Bearing Size | 6201 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Duty Rating | Continuous |
| Enclosure Type | Tefc |
| Explosion Proof | Brake Motors |
| Features | Ball Bearings Used In Gear Housing, Hardened Worm-Type Gearing Used, Interior Components Protected Against Corrosion, O-Rings And Gaskets Used For Sealing, Output Shafts Have Needle Bearings For High Load Capacities, SeaLED Output Shafts, Shaft Material Coated With Teflon/Ceramic Plating, Ul Listed And Csa Certified, White Epoxy Painted Motors |
| Frame | 38 |
| Frame Length | 6.38" |
| Frame Size | 38 |
| Frame Suffix | Not Available |
| Frequency | 60 Hz |
| Full Load Amps | 1.3-1.4A |
| Full Load Current | 1.4-1.3A |
| Gear Ratio | 10:1 |
| Height | 6.69" |
| Housing Material Finish | White Epoxy |
| Hp | 19/50 hp |
| Input Horsepower | 3/8 hp |
| Insulation Class | Class F |
| Keyway Depth | 1" |
| Keyway Type | Square |
| Keyway Width | 3/16" |
| Kw | 0.28 kW |
| Length | 16 1/2" |
| Length Less Shaft | 11.04" |
| Lubrication | Oil Bath |
| Max. Ambient Temp. | 40°C |
| Maximum Ambient Temperature | 104°F |
| Maximum Output Speed | 172 RPM |
| Maximum Torque | 105 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Insulation Class | Class F |
| Motor Type | 3-Phase |
| Mount Type | Horizontal |
| Mounting | Special |
| Mounting Orientation | Horizontal |
| Mounting Type | Special |
| Nameplate Speed | 172 RPM |
| Number Of Output Shafts | 1 |
| Operating Voltage | 208-230V AC |
| Opp. Drive End Bearing Type | Ball |
| Outline | OLM1145147 |
| Output Direction | Right Hand |
| Output Kw | 0.28 kW |
| Output Shaft Diameter | 5/8" |
| Output Shaft Length | 1 1/2" |
| Overall Height | 5.19" |
| Overall Length | 12 4/5" |
| Overall Width | 6.68" |
| Overhung Load Capacity | 235 lbs.-ft. |
| Overrlung Ld. | 235 lbs. |
| Packaging | M1307027.01 |
| Phase | 3 |
| Rotation | CW/CCW |
| Rotation Type | Reversible |
| Rpm | 172 RPM |
| Series | 13 Series |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 1/2" |
| Shaft Orientation | Right Angle |
| Shaft Type | Right Angle |
| Standards | Csa, Ul |
| Starting Torque | 105 lbs.-in. |
| Test Card | 05 |
| Torque | 105 lbs.-in. |
| Type | TF |
| Voltage | 208-230V |
| Winding | MT38432 |
Shipping Info:
| Ship weight (kg) | 8.1 |
| Ship height (cm) | 16.99 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 19.51 |
| Country of Origin | US |
Product Details:
- HPKW: .375/.375
- Bearing OPE: 6201-13
- Bearing PE: 6201-13
- Nameplate: M1004149
- Overrlung Ld.: 235
- Winding: MT38432
- GROUP: 1 G
- Paint: 305053.01
Product Variants
| Product | Model | Rotation | Rpm | Full Load Amps | Shaft Orientation | Number Of Output Shafts | Motor Type | Motor Enclosure | Overhung Load Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

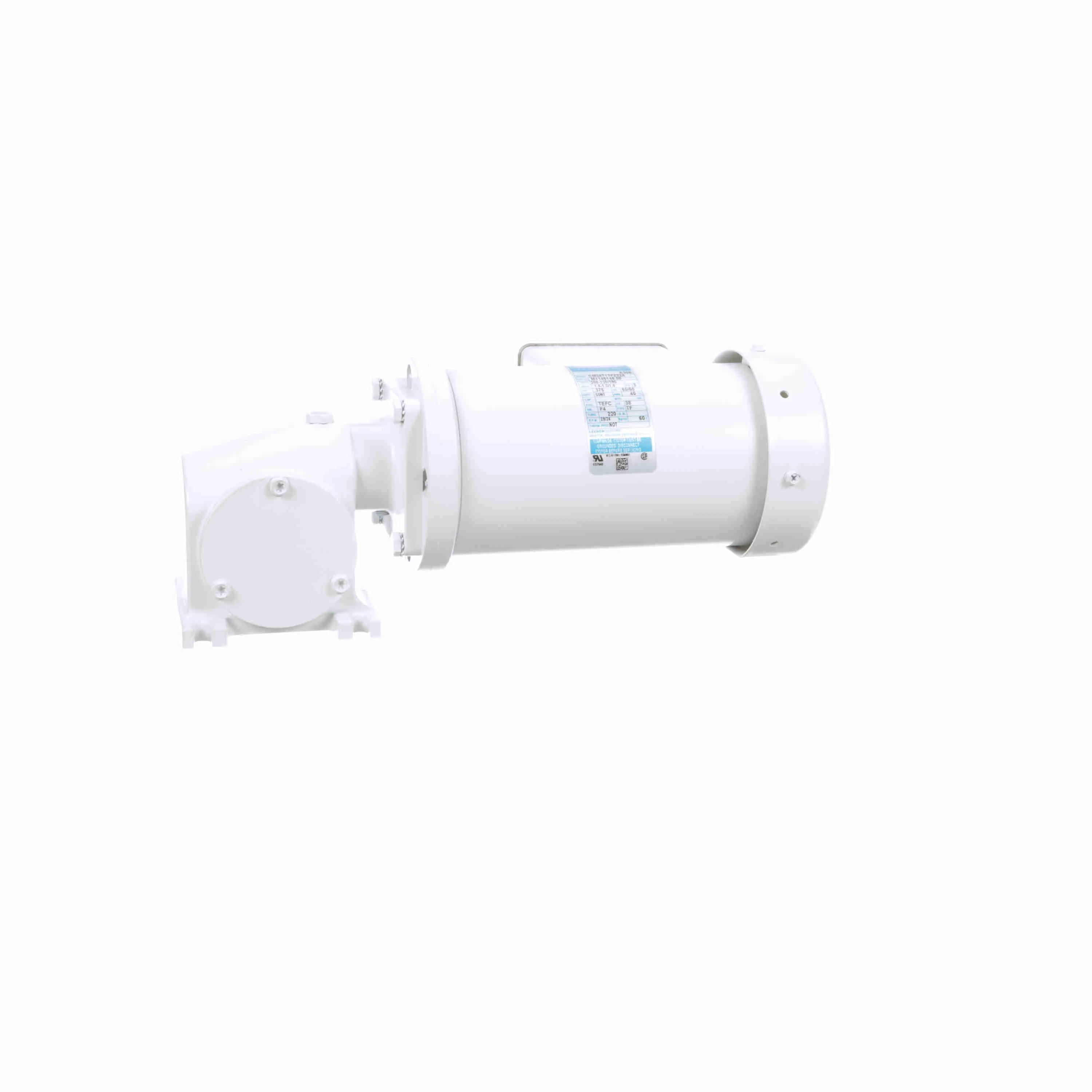

M1145146.00 | Reconn | 29/24 RPM | 1.6/1.4-1.3A | - | - | - | - | - | €429.76 |
