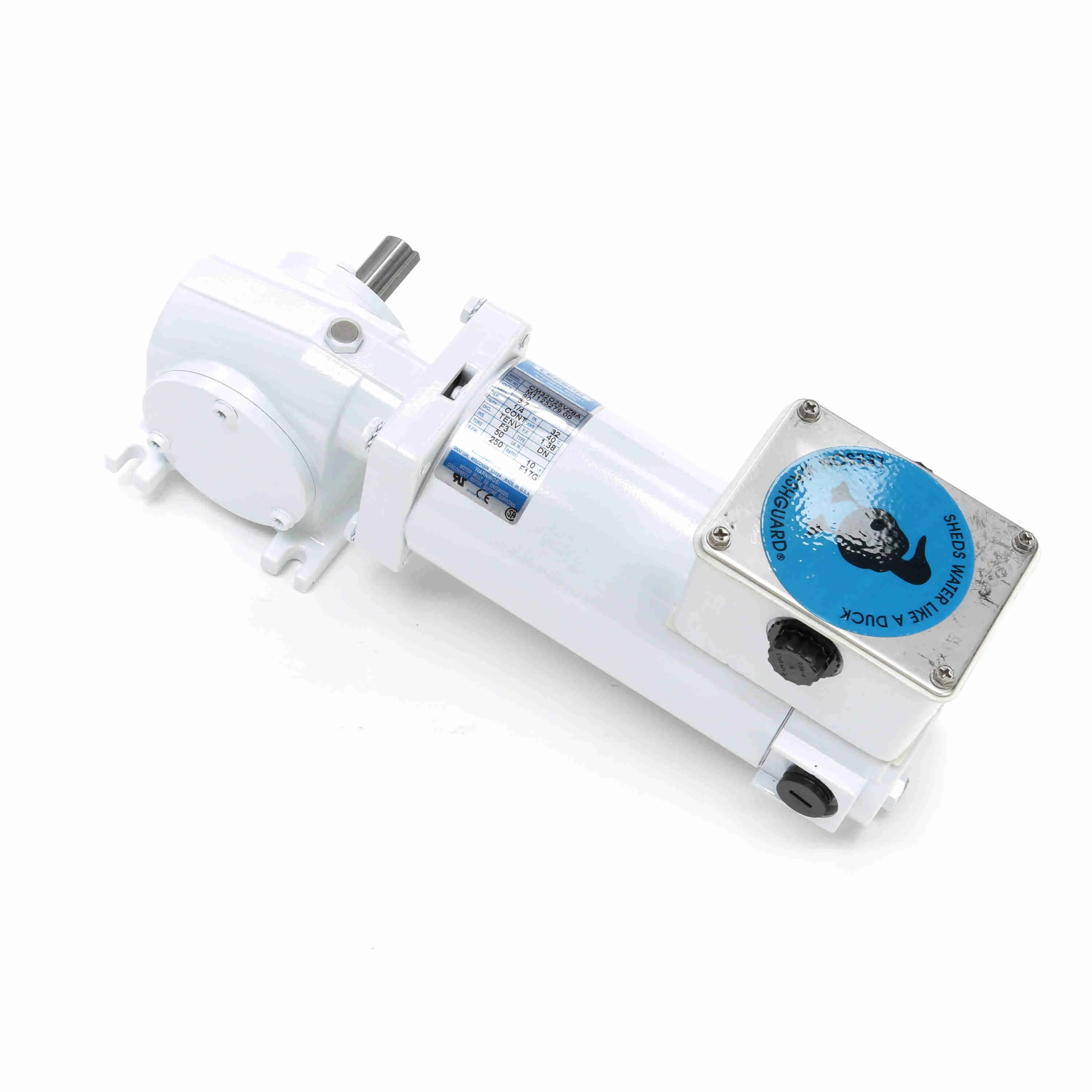

LEESON M1125279.00 CM32D25VZ8A Right Angle Gearmotor, 0.25 HP, 90V, 250 RPM
Get it by Tuesday, Aug 25
€948.06 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | DC Gearmotor |
| Ambient Temp. | 40°C |
| Amps | 3.7A |
| Base To Center Of Shaft | 1.67" |
| Bearing Type | Ball |
| Drive End Bearing Size | 6201 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 45.1% |
| Enclosure Type | Tenv |
| Features | Lubrication Is Permanent Semi-Fluid Grease, White Epoxy Coating |
| Frame Length | 5.94" |
| Frame Size | 32 |
| Frame Suffix | Not Available |
| Full Load Amps | 3.7A |
| Gear Ratio | 10:1 |
| Housing Finish | White Epoxy |
| Hp | 1/4 hp |
| Input Hp | 1/4 hp |
| Insulation Class | Class F |
| Ip Rating | IP55 |
| Keyway Depth | 1 1/8" |
| Keyway Type | Square |
| Keyway Width | 3/16" |
| Kw | 0.19 kW |
| Length Less Shaft | 11 3/25" |
| Lubrication | Oil Bath |
| Max. Ambient Temp. | 40°C |
| Max. Output Speed | 250 RPM |
| Max. Torque | 50 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Non Ventilated |
| Motor Insulation Class | Class F |
| Motor Type | Permanent Magnet DC |
| Mounting Orientation | Horizontal |
| Mounting Type | Special |
| Nameplate Speed | 250 RPM |
| Operating Voltage | 90V DC |
| Opp Drive End Bearing Size | 6201 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 0.19 kW |
| Output Shaft Dia. | 5/8" |
| Output Shaft Length | 1 13/16" |
| Overall Height | 6 3/5" |
| Overall Length | 12.86" |
| Overall Width | 3 21/25" |
| Product Datasheet | leeson-m1125279-00.pdf |
| Rotation | CW, CCW |
| Rotation Type | Reversible |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 4/5" |
| Shaft Orientation | Right Angle |
| Shaft Type | Right Angle |
| Speed | 250 RPM |
| Thermal Protection | None |
| Torque | 50 lbs.-in. |
| Voltage | 90V |
Shipping Info:
| Ship weight (kg) | 7.65 |
| Ship height (cm) | 16.99 |
| Ship length (cm) | 41.91 |
| Ship width (cm) | 19.51 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Nameplate Speed | Torque | Full Load Amps | Lubrication | Output Shaft Length | Speed | Overall Height | Max. Output Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M1125278.00 | 125 RPM | 90 lbs.-in. | 3.8A | Oil Bath | 1 13/16" | 125 RPM | 6 3/5" | 125 RPM | €948.06 | |
 |
M1125275.00 | 42 RPM | 80 lbs.-in. | 2.2A | Oil Bath | 1 13/16" | 42 RPM | 6 14/25" | 42 RPM | €1,593.27 | |
 |
M1125277.00 | 62 RPM | 135 lbs.-in. | 3.7A | Polyrex EM | 1.812" | 62 RPM | 6 3/5" | 62 RPM | €1,405.64 |
