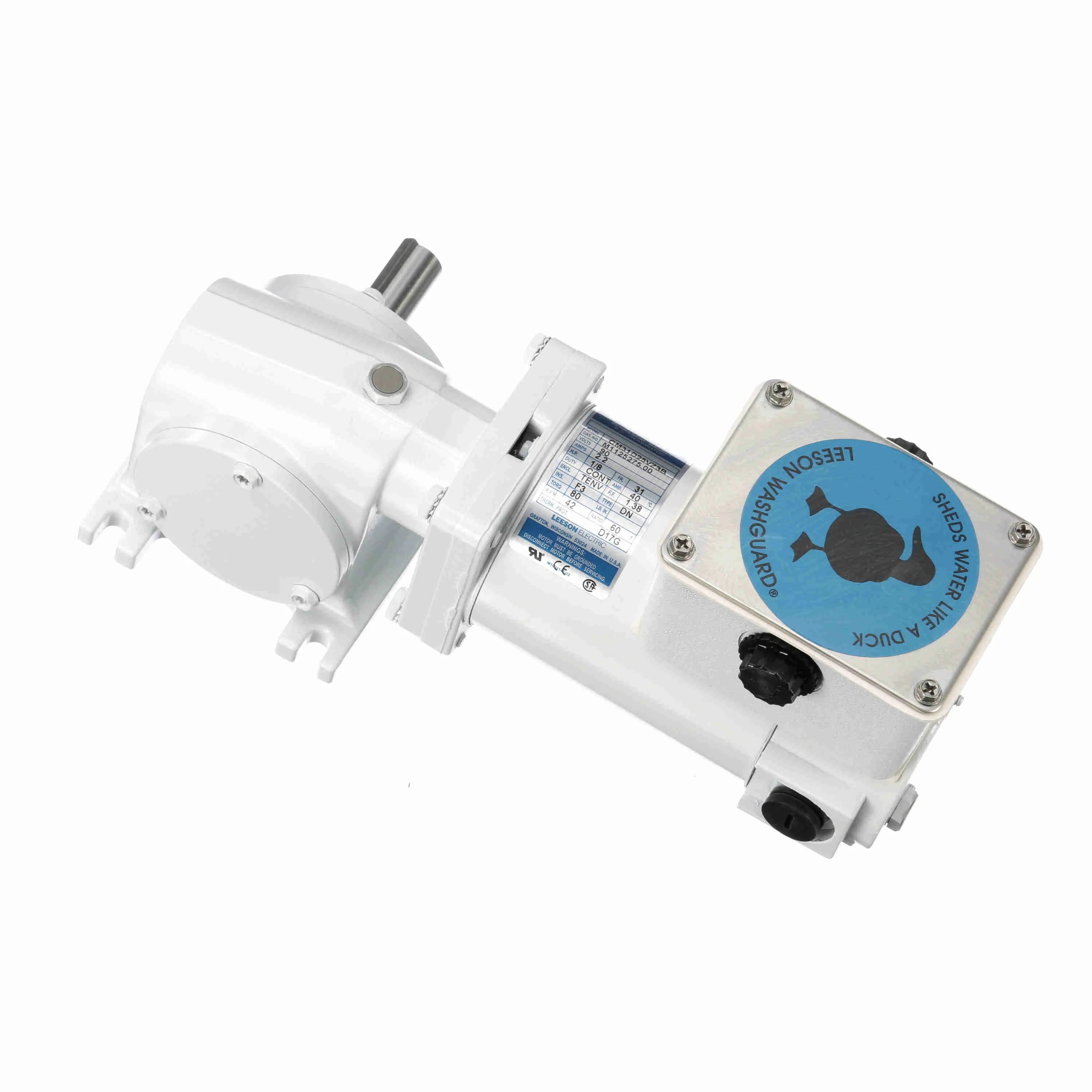

LEESON M1125275.00 CM31D25VZ3B Right Angle Gearmotor, 0.13 HP, 90V, 42 RPM
Item: CR8PNHModel: M1125275.00Cross Ref: 794C04 / CM31D25VZ3B
7 In Stock
Ships within 2 days via
5.00% off
€1,290.89 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | DC Gearmotor |
| Ambient Temp. | 40°C |
| Amps | 2.2A |
| Base To Center Of Shaft | 1.67" |
| Bearing Type | Ball |
| Drive End Bearing Size | 6201 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 19% |
| Enclosure Type | Tenv |
| Features | 303 Stainless Steel Gearbox Output Shaft, Cast Conduit Box With Threaded Conduit Holes And Nitrile Gaskets Keep Water Out, Painted With White Epoxy, Stainless Steel Hardware |
| Frame Length | 3.94" |
| Frame Size | 31 |
| Frame Suffix | Not Available |
| Full Load Amps | 2.2A |
| Gear Ratio | 60:1 |
| Height | 5.63" |
| Housing Finish | White Epoxy |
| Hp | 13/100 hp |
| Input Hp | 1/8 hp |
| Insulation Class | Class F |
| Keyway Depth | 1 1/8" |
| Keyway Type | Square |
| Keyway Width | 3/16" |
| Kw | 0.1 kW |
| Length | 15 1/4" |
| Length Less Shaft | 9 3/25" |
| Lubrication | Oil Bath |
| Max. Ambient Temp. | 40°C |
| Max. Output Speed | 42 RPM |
| Maximum Torque | 80 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Nonventilated |
| Motor Insulation Class | Class F |
| Motor Type | Permanent Magnet DC |
| Mount Type | Special |
| Mounting Orientation | Horizontal |
| Mounting Type | Special |
| Nameplate Rpm | 42 RPM |
| Operating Voltage | 90V DC |
| Opp. Drive End Bearing Size | 6201 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 0.1 kW |
| Output Shaft Dia. | 5/8" |
| Output Shaft Length | 1 13/16" |
| Overall Height | 6 14/25" |
| Overall Length | 10.86" |
| Overall Width | 3 21/25" |
| Overhung Load Capacity | 235 lbs.-ft. |
| Product Datasheet | leeson-m1125275-00.pdf |
| Rotation | CW/CCW |
| Rotation Type | Reversible |
| Rpm | 42 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 4/5" |
| Shaft Orientation | Right Angle |
| Shaft Type | Right Angle |
| Starting Torque | 80 lbs.-in. |
| Torque | 80 lbs.-in. |
| Voltage | 90V |
Shipping Info:
| Ship weight (kg) | 4.95 |
| Ship height (cm) | 14.3 |
| Ship length (cm) | 38.74 |
| Ship width (cm) | 18.11 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Nameplate Rpm | Input Hp | Gear Ratio | Full Load Amps | Lubrication | Overall Length | Overall Height | Efficiency | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M1125278.00 | 125 RPM | 1/4 hp | 20:1 | 3.8A | Oil Bath | 12.86" | 6 3/5" | 40% | €948.06 | |
 |
M1125279.00 | 250 RPM | 1/4 hp | 10:1 | 3.7A | Oil Bath | 12.86" | 6 3/5" | 45.1% | €948.06 | |
 |
M1125277.00 | 62 RPM | 1/4 hp | 40:1 | 3.7A | Polyrex EM | 12.86" | 6 3/5" | 30.5% | €1,281.55 |
