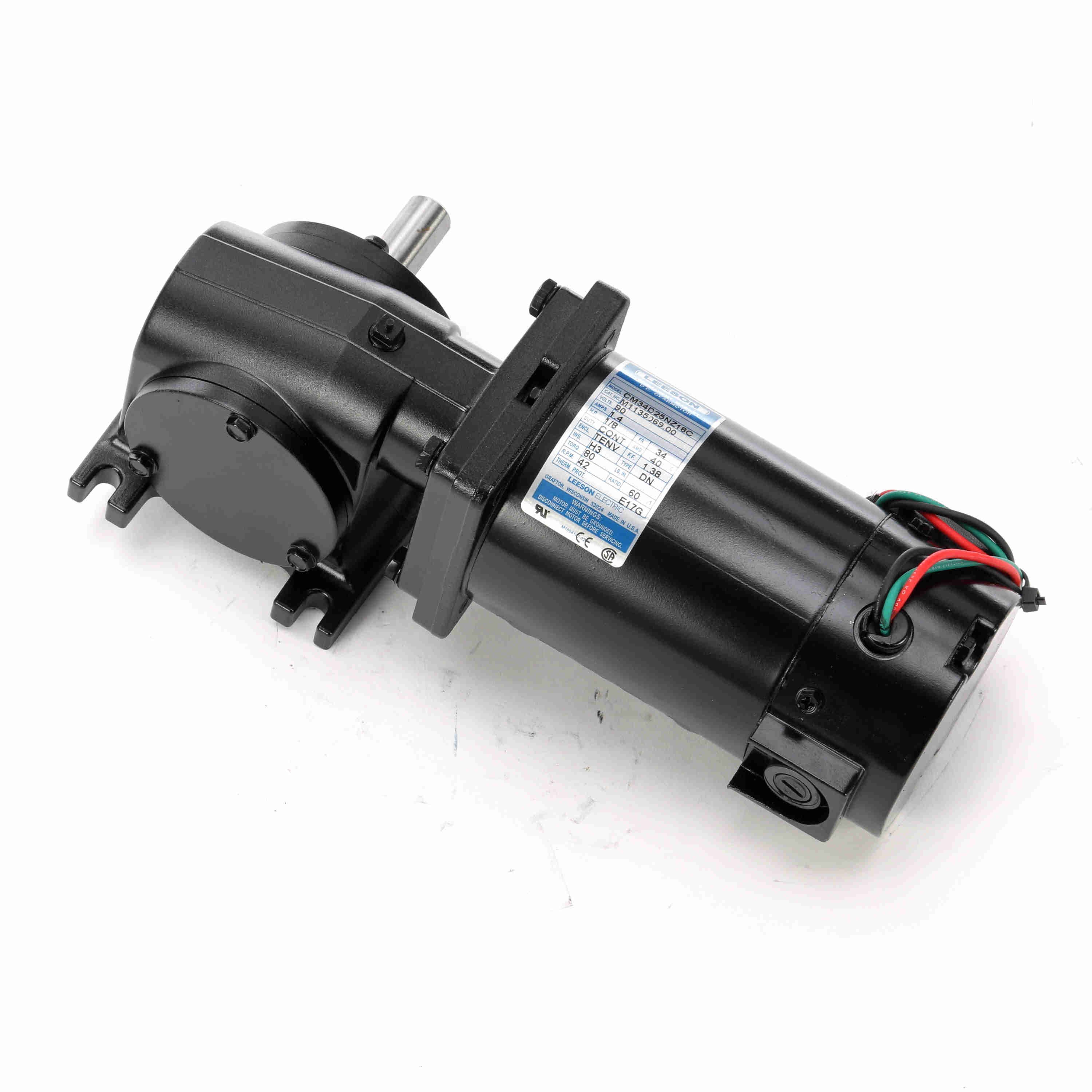

LEESON M1135069.00 CM34D25NZ18C Right Angle Gearmotor, 0.13 HP, 90V, 42 RPM
Item: CR8PNGModel: M1135069.00Cross Ref: 794AX9 / CM34D25NZ18C
7 In Stock
Ships within 2 days via
5.00% off
€1,178.86 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | DC Gearmotor |
| Ambient Temp. | 40°C |
| Amps | 1.4A |
| Assembly | M1040373 |
| Base To Center Of Shaft | 1.67" |
| Connection | Const Torque Speed Range |
| Drive End Bearing Size | 6201 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 20.9% |
| Enclosure Type | Tenv |
| Explosion Proof | Brake Motors |
| Features | Lubrication Is Permanent Semi-Fluid Grease |
| Frame Length | 3.81" |
| Frame Size | 34 |
| Frame Suffix | Not Available |
| Full Load Amps | 1.4A |
| Gear Ratio | 60:1 |
| Height | 5.63" |
| Hp | 13/100 hp |
| Input Hp | 1/8 hp |
| Insulation Class | Class H |
| Keyway Depth | 1 1/4" |
| Keyway Length | 1 1/2" |
| Keyway Type | Square |
| Keyway Width | 3/16" |
| Kw | 0.1 kW |
| Length | 15 1/4" |
| Length Less Shaft | 8 22/25" |
| Lubrication | Semi-Fluid Grease |
| Max. Ambient Temp. | 40°C |
| Max. Output Speed | 42 RPM |
| Max. Torque | 80 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Non Ventilated |
| Motor Insulation Class | Class H |
| Motor Type | Permanent Magnet DC |
| Mounting Orientation | Horizontal |
| Mounting Type | Special |
| Nameplate Speed | 42 RPM |
| Operating Voltage | 90V DC |
| Opp Drive End Bearing Size | 608 |
| Opp. Drive End Bearing Type | Ball |
| Outline | M1030350 |
| Output Kw | 0.1 kW |
| Output Shaft Dia. | 5/8" |
| Output Shaft Length | 1 13/16" |
| Overall Height | 6.61" |
| Overall Length | 10 16/25" |
| Overall Width | 4.09" |
| Overhung Load Capacity | 235 lbs.-ft. |
| Overrlung Ld. | 235 lbs. |
| Product Datasheet | leeson-m1135069-00.pdf |
| Rotation | CW, CCW |
| Rotation Type | Reversible |
| Series | 13 Series |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 4/5" |
| Shaft Orientation | Right Angle |
| Shaft Type | Right Angle |
| Speed | 42 RPM |
| Test Card | 06 |
| Thermal Protection | None |
| Torque | 80 lbs.-in. |
| Type | Dn |
| Voltage | 90V |
| Winding | MD342195 |
Shipping Info:
| Ship weight (kg) | 4.95 |
| Ship height (cm) | 14.3 |
| Ship length (cm) | 38.74 |
| Ship width (cm) | 18.11 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Torque | Full Load Amps | Nameplate Speed | Voltage | Operating Voltage | Bearing Type | Housing Material | Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M1135065.00 | 50 lbs.-in. | 1.3A | 250 RPM | 180V | 180V DC | - | Aluminum | 5/8" | €1,124.97 | |
 |
M1135252.00 | 90 lbs.-in. | 21A | 125 RPM | 12V | 12V DC | Ball | - | 5/8" | €1,140.20 | |
 |
M1135297.00 | 158 lbs.-in. | 24A | 58 RPM | 12V DC | 12V DC | - | Die Cast Aluminum Alloy | 5/8" | €1,049.47 | |
 |
M1135251.00 | 135 lbs.-in. | 21A | 62 RPM | 12V | 12V DC | Ball | - | 5/8" | €1,140.20 | |
 |
M1135064.00 | 90 lbs.-in. | 1.3A | 125 RPM | 180V | 180V DC | Ball | - | 5/8" | €781.34 | |
 |
M1115020.00 | 16 lbs.-in. | 0.85A | 125 RPM | 90V | 90V DC | - | - | 1/2" | €842.01 | |
 |
M1135039.00 | 45 lbs.-in. | 1.4A | 125 RPM | 90V | 90V DC | - | - | 5/8" | €970.18 |
