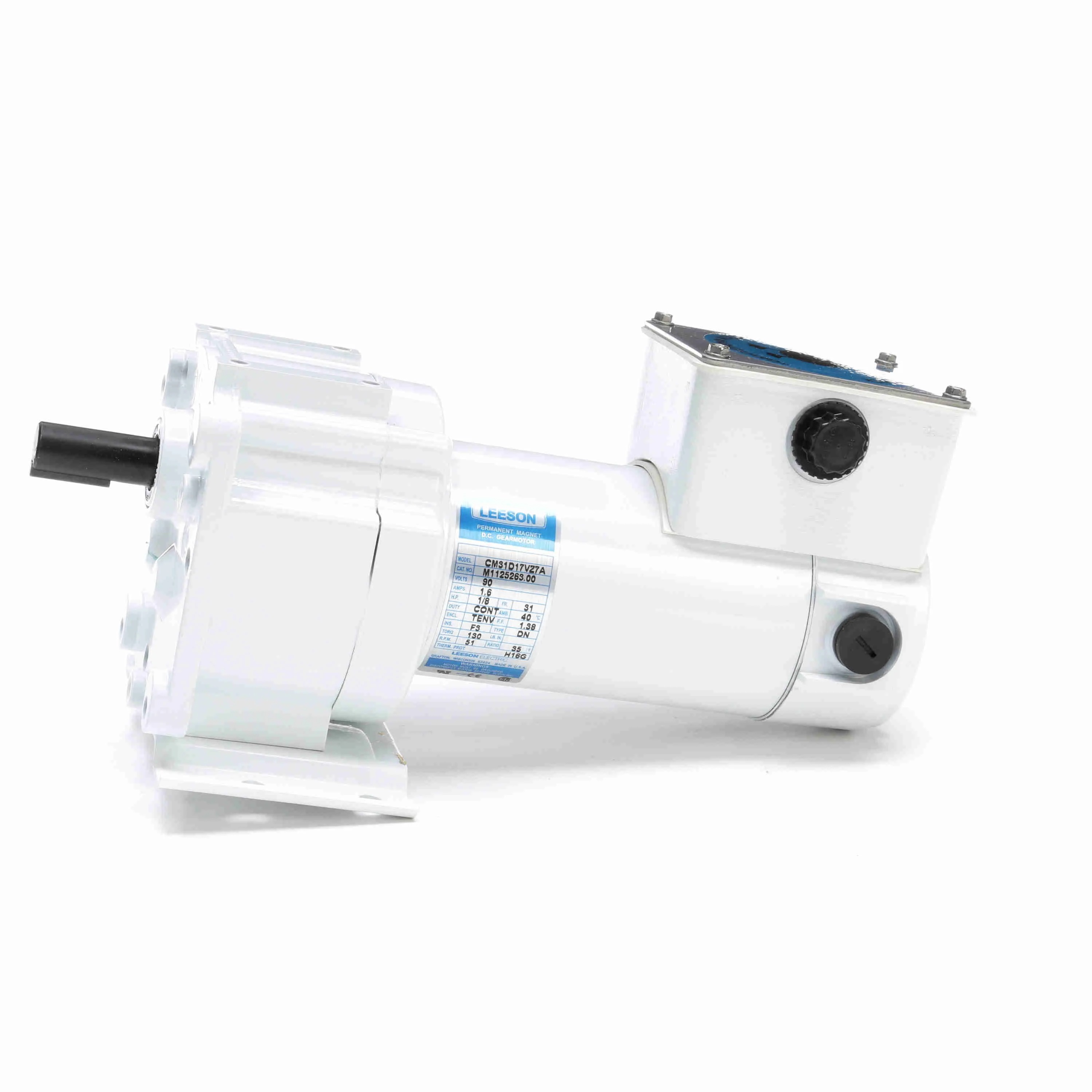

LEESON M1125263.00 CM31D17VZ7A Parallel Shaft Gearmotor, 0.13 HP, 90V, 51 RPM
Get it by Wednesday, May 20
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€1,118.59 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Parallel |
| Ambient Temp. | 40°C |
| Amps | 1.6A |
| Assembly | M1041160 |
| Base To Center Of Shaft | 3 1/2" |
| Bearing Size | 6201-13 |
| Bearing Type | Needle |
| Connection | Const Torque Speed Range |
| Drive End Bearing Size | 6201 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 59.9% |
| Enclosure Type | Tenv |
| Explosion Proof | Brake Motors |
| Features | Lubrication Is Permanent Semi-Fluid Grease |
| Frame Length | 4.94" |
| Frame Size | 31 |
| Frame Suffix | Not Available |
| Full Load Amps | 1.6A |
| Gear Material | Steel |
| Gear Ratio | 35:1 |
| Height | 10 22/25" |
| Hp | 13/100 hp |
| Input Hp | 1/8 hp |
| Insulation Class | Class F |
| Ip Rating | IP55 |
| Keyway Depth | 3/16" |
| Keyway Type | Square |
| Keyway Width | 1" |
| Kw | 0.1 kW |
| Length | 14 11/25" |
| Length Less Shaft | 10 11/25" |
| Lubrication | Polyrex EM |
| Max. Ambient Temp. | 40°C |
| Max. Output Speed | 51 RPM |
| Max. Torque | 220 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Nonventilated |
| Motor Insulation Class | Class F |
| Motor Type | Permanent Magnet DC |
| Mount Hole Center-to-center Length | 1 1/2" |
| Mount Hole Center-to-center Width | 4" |
| Mount Type | Special |
| Mounting Orientation | Horizontal, Vertical with Shaft Down |
| Mounting Type | Special |
| Nameplate Rpm | 51 RPM |
| Operating Voltage | 90V DC |
| Opp. Drive End Bearing Type | Ball |
| Outline | M1030987 |
| Output Kw | 0.1 kW |
| Output Shaft Dia. | 5/8" |
| Output Shaft Length | 1 1/2" |
| Overall Height | 6.35" |
| Overall Length | 11.94" |
| Overall Width | 4 2/25" |
| Overhung Load Capacity | 227 lbs.-ft. |
| Overrlung Ld. | 277 lbs. |
| Product Datasheet | leeson-m1125263-00.pdf |
| Rotation | CW/CCW |
| Rotation Type | Reversible |
| Rpm | 51 RPM |
| Series | P300 Series |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 1/2" |
| Shaft Orientation | Parallel |
| Shaft Type | Parallel |
| Test Card | 03 |
| Torque | 130 lbs.-in. |
| Type | Dn |
| Voltage | 90V |
| Winding | MD312285 |
Shipping Info:
| Ship weight (kg) | 5.4 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Nameplate Rpm | Max. Torque | Input Hp | Overhung Load Capacity | Gear Ratio | Base To Center Of Shaft | Overall Length | Length Less Shaft | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M1125265.00 | 167 RPM | 43 lbs.-in. | 1/8 hp | 197 lbs.-ft. | 11:1 | 3 1/2" | 11.94" | 10 11/25" | €954.29 | |
 |
M1125264.00 | 94 RPM | 220 lbs.-in. | 1/8 hp | 236 lbs.-ft. | 19:1 | 3 1/2" | 11.94" | 10 11/25" | €1,159.85 | |
 |
M1125268.00 | 14 RPM | 341 lbs.-in. | 1/8 hp | 465 lbs.-ft. | 180:1 | 4" | 11 21/25" | 9 21/25" | €944.40 | |
 |
M1125271.00 | 250 RPM | 45 lbs.-in. | 1/4 hp | 201 lbs.-ft. | 10:1 | 4" | 13 21/25" | 11 21/25" | €948.06 | |
 |
M1125262.00 | 31 RPM | 220 lbs.-in. | 1/8 hp | 327 lbs.-ft. | 58:1 | 3 1/2" | 11.94" | 10 11/25" | €932.99 | |
 |
M1125269.00 | 42 RPM | 220 lbs.-in. | 1/4 hp | 327 lbs.-ft. | 58:1 | 4" | 13 21/25" | 11 21/25" | €1,307.93 | |
 |
M1125272.00 | 500 RPM | 25 lbs.-in. | 1/4 hp | 194 lbs.-ft. | 5:1 | 4" | 13 21/25" | 11 21/25" | €948.06 |
