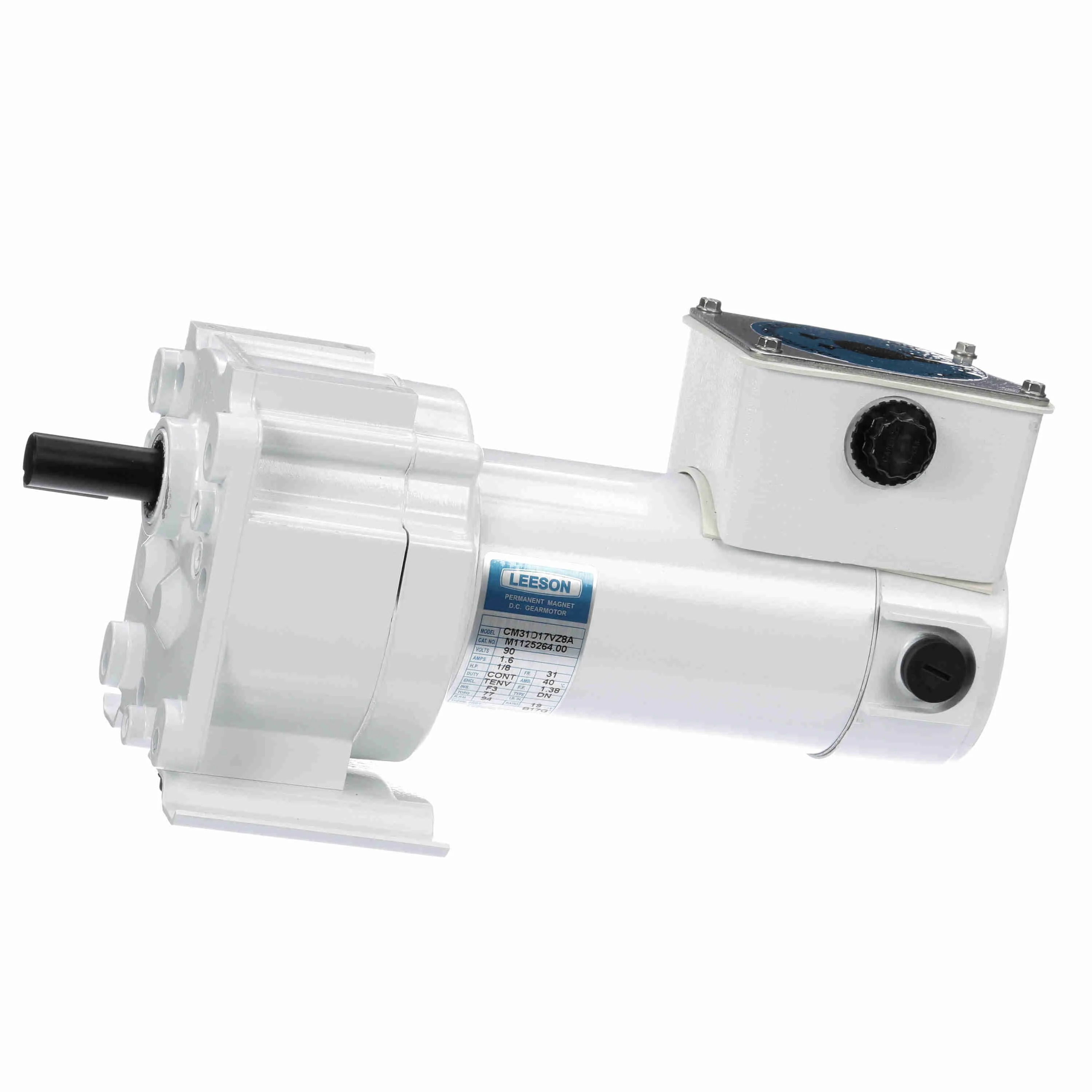

LEESON M1125264.00 CM31D17VZ8A Parallel Shaft Gearmotor, 0.13 HP, 90V, 94 RPM
Get it by Monday, Dec 22
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€1,043.87 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Parallel |
| Ambient Temp. | 40°C |
| Amps | 1.6A |
| Assembly | M1041160 |
| Base To Center Of Shaft | 3 1/2" |
| Bearing Size | 6201-13 |
| Connection | Const Torque Speed Range |
| Drive End Bearing Size | 6201 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 60.2% |
| Enclosure Type | Tenv |
| Explosion Proof | Brake Motors |
| Features | Cast Conduit Box, Double Sealed, Usda Approved White Epoxy Finish |
| Frame Length | 4.94" |
| Frame Size | 31 |
| Frame Suffix | Not Available |
| Full Load Amps | 1.6A |
| Gear Ratio | 19:1 |
| Height | 10 22/25" |
| Housing Finish | White Epoxy |
| Hp | 13/100 hp |
| Input Hp | 1/8 hp |
| Insulation Class | Class F |
| Keyway Depth | 3/16" |
| Keyway Type | Square |
| Keyway Width | 1" |
| Kw | 0.1 kW |
| Length | 14 11/25" |
| Length Less Shaft | 10 11/25" |
| Lubrication | Polyrex EM |
| Max. Ambient Temp. | 40°C |
| Max. Output Speed | 94 RPM |
| Max. Torque | 220 lbs.-in. |
| Motor Duty Class | Continuous |
| Motor Enclosure | Totally Enclosed Nonventilated |
| Motor Insulation Class | Class F |
| Motor Type | Permanent Magnet DC |
| Mount Hole Center-to-center Length | 1 1/2" |
| Mount Hole Center-to-center Width | 4" |
| Mount Type | Special |
| Mounting Orientation | Horizontal, Vertical with Shaft Down |
| Mounting Type | Special |
| Nameplate Rpm | 94 RPM |
| Operating Voltage | 90V DC |
| Opp. Drive End Bearing Type | Ball |
| Outline | M1030987 |
| Output Kw | 0.1 kW |
| Output Shaft Dia. | 5/8" |
| Output Shaft Length | 1 1/2" |
| Overall Height | 6.35" |
| Overall Length | 11.94" |
| Overall Width | 4 2/25" |
| Overhung Load Capacity | 236 lbs.-ft. |
| Overrlung Ld. | 236 lbs. |
| Rotation | CW/CCW |
| Rotation Type | Reversible |
| Rpm | 94 RPM |
| Seal Type | Lubricated Spring Loaded |
| Series | P300 Series |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 1/2" |
| Shaft Orientation | Parallel |
| Shaft Type | Parallel |
| Starting Torque | 77 lbs.-in. |
| Test Card | 04 |
| Torque | 77 lbs.-in. |
| Type | Dn |
| Voltage | 90V |
| Winding | MD312285 |
Shipping Info:
| Ship weight (kg) | 5.4 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Variants
| Product | Model | Shaft Orientation | Operating Voltage | Gear Ratio | Nameplate Rpm | Input Hp | Base To Center Of Shaft | Overhung Load Capacity | Max. Torque | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M1125071.00 | Parallel | 90V DC | 35:1 | 51 RPM | - | 3 1/2" | 277 lbs.-ft. | 130 lbs.-in. | €1,017.86 | |
 |
M1125074.00 | Parallel | 90V DC | 11:1 | 167 RPM | - | - | - | 43 lbs.-in. | €990.65 | |
 |
M1125004.00 | Parallel | 90V DC | 18:1 | 100 RPM | 3/50 hp | - | - | 36 lbs.-in. | €812.90 | |
 |
M1135065.00 | Right Angle | 180V DC | 10:1 | 250 RPM | 1/4 hp | - | 235 lbs.-ft. | - | €1,050.36 | |
 |
M1125069.00 | Parallel | 90V DC | 76:1 | 24 RPM | 13/100 hp | - | - | 280 lbs.-in. | €1,044.63 | |
 |
M1125073.00 | Parallel | 90V DC | 19:1 | 94 RPM | 13/100 hp | - | - | 77 lbs.-in. | €1,152.51 | |
 |
M1135252.00 | Right Angle | 12V DC | 20:1 | 125 RPM | 1/4 hp | 1.67" | 235 lbs.-ft. | - | €1,060.13 |
