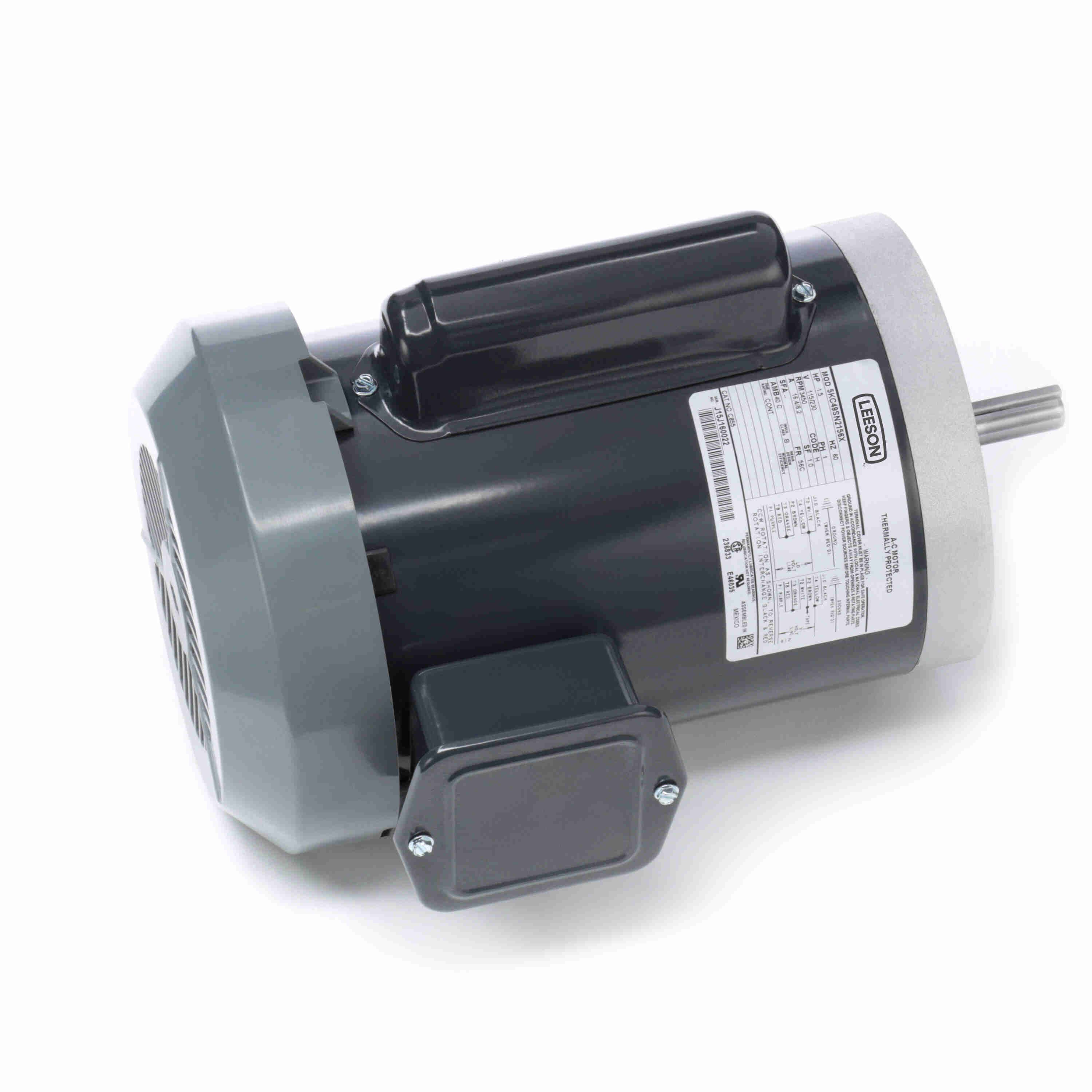

LEESON 5KC49SN2156X C855 General Purpose Motor, 1.50 HP, 1 Phase, 60 Hz, 115/230V, 3600 RPM
Get it by Wednesday, Dec 24
10.00% off
€628.71 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Bearing Type | Ball |
| Body Dia. | 6 3/7" |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency | 74% |
| Frame | 56C |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 16.4/8.2A |
| Hp | 1 1/2 hp |
| Includes | Shaft Slinger And Gasketed Conduit Box |
| Insulation Class | Class B |
| Length Less Shaft | 11 1/16" |
| Max. Ambient Temp. | 104°F |
| Motor Application | Pump |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Face |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Sub Application | Jet Pump |
| Motor Thermal Protection | Auto |
| Motor Type | Capacitor Start |
| Mounting Type | Face |
| Nameplate Rpm | 3450 RPM |
| Nominal Efficiency | 74% |
| Number Of Speeds | 1 |
| Overall Length | 12 15/16" |
| Phase | 1 |
| Rpm Range | 3001-3600 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Shaft Material | Stainless Steel |
| Standards | Csa, Ul Recognized |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115/230V AC |
| Weight | 35 lbs. |
Shipping Info:
| Ship weight (kg) | 15.75 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 38.46 |
| Ship width (cm) | 25.88 |
| HS code | 8501406040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Frequency | Full Load Amps | Mounting Type | Motor Type | Service Factor | Nameplate Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KCR46MN0093 | 115/230V AC | 1/2 hp | 60 Hz | 5.6-5.8/2.8-2.9A | Face | Capacitor Start/Run | 1.25 | 1725 RPM | €814.28 | |
 |
5KCR49UN0107 | 115/230V AC | 1 hp | 60 Hz | 11.4-11.8/5.7-5.9A | Face | Capacitor Start | 1.15 | 1725 RPM | €1,031.58 | |
 |
056C34F5324 | 115/208-230V AC | 1 hp | 60 Hz | 12.4/6.2-6.7A | Rigid Base | Capacitor Start | 1.15 | - | €634.41 | |
 |
5KC32GN25 | 115/230V AC | 1/4 hp | 60 Hz | 5.4/2.7A | Rigid Base | Capacitor Start | 1.0 | 1725 RPM | €401.90 | |
 |
5KC33FN31 | 115/230V AC | 1/3 hp | 60 Hz | 5.6/2.8A | Rigid Base | Capacitor Start | 1.15 | 3450 RPM | €428.16 | |
 |
5KC35MN73 | 115/230V AC | 1/3 hp | 60 Hz | 6/3A | Rigid Base | Capacitor Start | 1.15 | 1725 RPM | €517.19 | |
 |
5KC42GN0018 | 115/230V AC | 1/2 hp | 60 Hz | 8.6/4.3A | Rigid Base | Capacitor Start | 1.15 | 1725 RPM | €618.34 |
