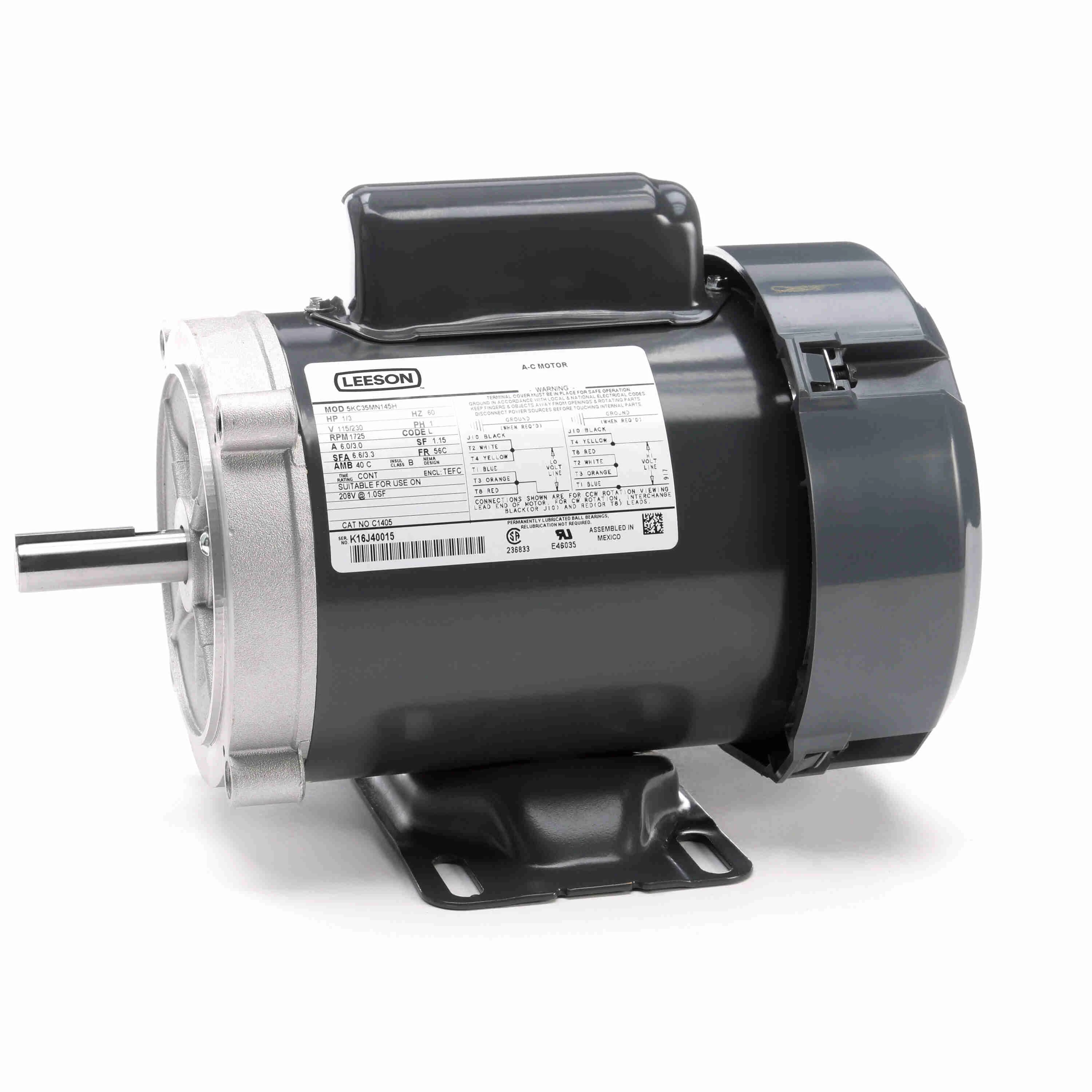

LEESON 5KC35MN145 5KC35MN145H / C1405 General Purpose Motor, 1/3 HP, 1725 RPM, 115/230V, 60 Hz
Get it by Monday, Aug 24
€469.19 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| A | 6/3A |
| Ambient | 40 |
| Bearing Drive End | Locked |
| Duty Cycle | Continuous |
| Enclosure | Totally Enclosed Fan Cooled |
| Frame | 56C |
| Hp | 1/3 hp |
| Insulation Class | Class B |
| Kva Code | L |
| Mounting | WB |
| Opposite End Bearing | Ball |
| Orientation | Horizontal, Vertical |
| Phase | 1 |
| Product Datasheet | leeson-5kc35mn145.pdf |
| Rotation | Select Counter Clockwise |
| Sf | 1.15 |
| Speed | 1725 RPM |
| Starting Type | Switch And Mech |
| Voltage | 115/230V |
Shipping Info:
| Ship weight (kg) | 7.65 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 39.22 |
| Ship width (cm) | 25.88 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Phase | Hp | Full Load Amps | Service Factor | Voltage | Frequency | Mounting Type | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KCR46JN0087Y | 1 | 1/3 hp | 3.8-4/1.9-2A | 1.35 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start | €942.30 | |
 |
5KCR46MN0055Y | 1 | 1/2 hp | 5.6-5.8/2.8-2.9A | 1.25 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €841.44 | |
 |
5KCR46MN0093 | 1 | 1/2 hp | 5.6-5.8/2.8-2.9A | 1.25 | 115/230V AC | 60 Hz | Face | Capacitor Start, Run | €814.28 | |
 |
5KCR46MN0055X | 1 | 1/2 hp | 5.6-5.8/2.8-2.9A | 1.25 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €886.09 | |
 |
5KCR49PN0099X | 1 | 3/4 hp | 8.8-9/4.4-4.5A | 1.25 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €1,094.78 | |
 |
5KCR49UN0107 | 1 | 1 hp | 11.4-11.8/5.7-5.9A | 1.15 | 115/230V AC | 60 Hz | Face | Capacitor Start | €1,031.58 | |
 |
5KCR49UN0106X | 1 | 1 hp | 11.4-11.8/5.7-5.9A | 1.15 | 115/230V AC | 60 Hz | Face, Base | Capacitor Start, Run | €1,060.60 |
