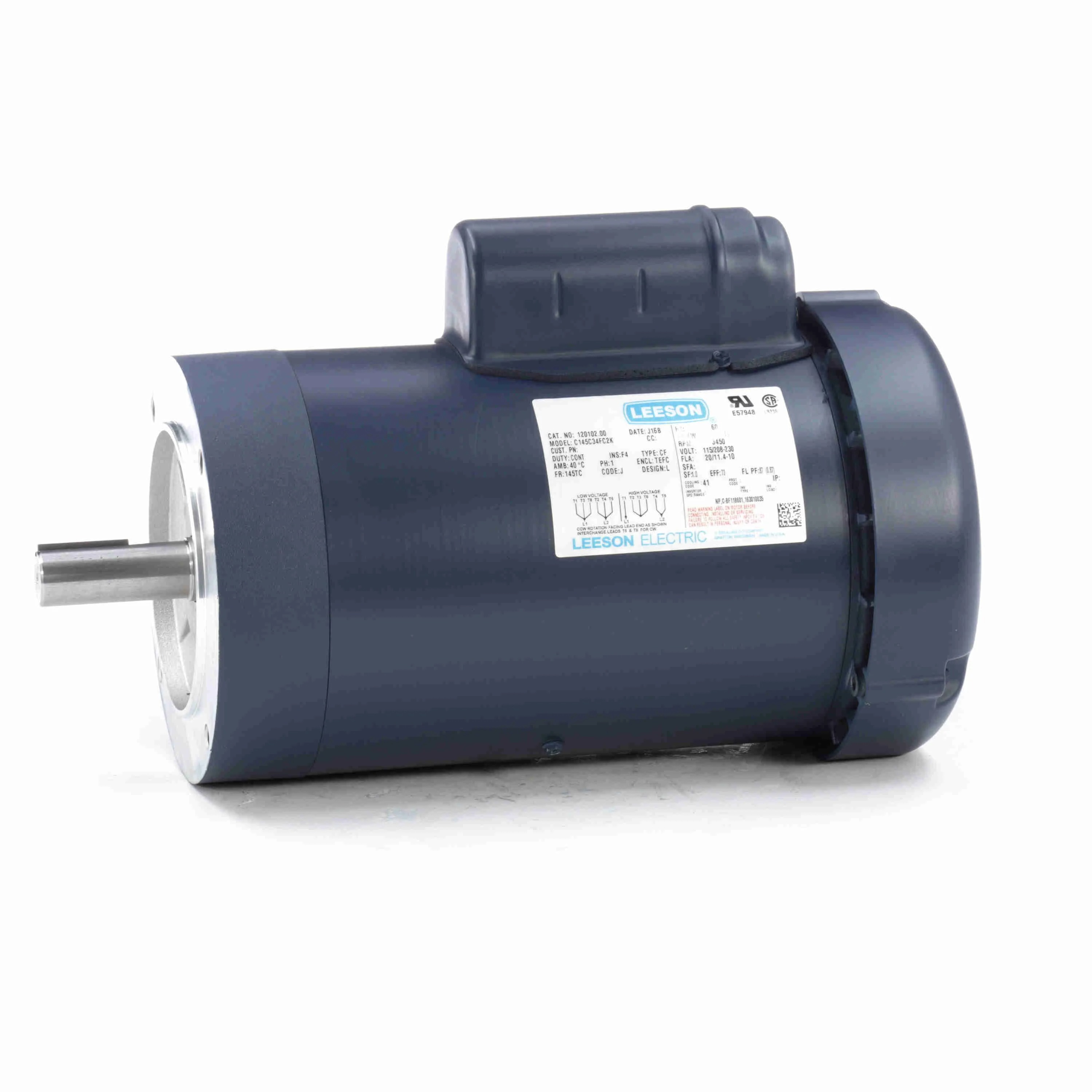

LEESON 120102.00 C145C34FC2K Single Phase Motor | AJ2RFD C145C34FC2K

LEESON 120102.00 C145C34FC2K General Purpose Motor, 2 HP, 1 Phase, 60 Hz, 115/230V, 3600 RPM

Item: AJ2RFDModel: 120102.00Cross Ref: 820HT0 / C145C34FC2K
Check Availability
In Stock
Output KW
Frame

Get it by Tuesday, May 19

€970.23 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Single Phase Motor
Ambient Temp. 40°C
Amps 20/10A
Code J
Conduit Box Position F1
Design Code L
Drive End Bearing Size 6205
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 73%
Electrical Type Capacitor Start, Induction Run
Enclosure Type Tefc
Frame 145TC
Frame Length 8"
Frame Material Rolled Steel
Frame Type 145TC
Frequency 60 Hz
Full Load Amps 20/11.4-10A
Grease Type Polyrex EM
Height 10 22/25"
Hp 2 hp
Insulation Class Class F
Ip Code IP43
Kva Code J
Kw 1.5 kW
Length 19 1/2"
Lubrication Polyrex EM
Max. Rpm 3450 RPM
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Orientation Horizontal
Motor Shaft Rotation Selective Counter Clockwise
Motor Type Capacitor Start
Mounting Type C Face, Footless
Nameplate Rpm 3600 RPM
Nema Design J, L
No. Of Poles 2
No. Of Speeds 1
Opp. Drive End Bearing Size 6203
Opp. Drive End Bearing Type Ball
Output Kw 1.49 kW
Packaging B
Phase 1
Power Factor 87
Product Datasheet leeson-120102-00.pdf
Resistance Main 0.92 ohms
Rpm 3400-3600 RPM
Service Factor 1
Shaft Dia. 7/8"
Shaft Length 2 1/4"
Shaft Type T
Starting Method Across The Line
Thermal Protection No Protection
Type CF
Voltage 115/208-230V
Width 10 11/25"

Shipping Info:

Ship weight (kg) 20.7
Ship height (cm)27.64
Ship length (cm)49.53
Ship width (cm)26.52
Country of OriginUS

Product Details:

    • Eff 100%: 73
    • Bearing OPE: 6203
    • CC Number: EXEMPT
    • Bearing PE: 6205
    • Nameplate: 993500
    • Winding: C632213
    • GROUP: 3
    • Paint: BLUE - LEESON (ENAMEL)
