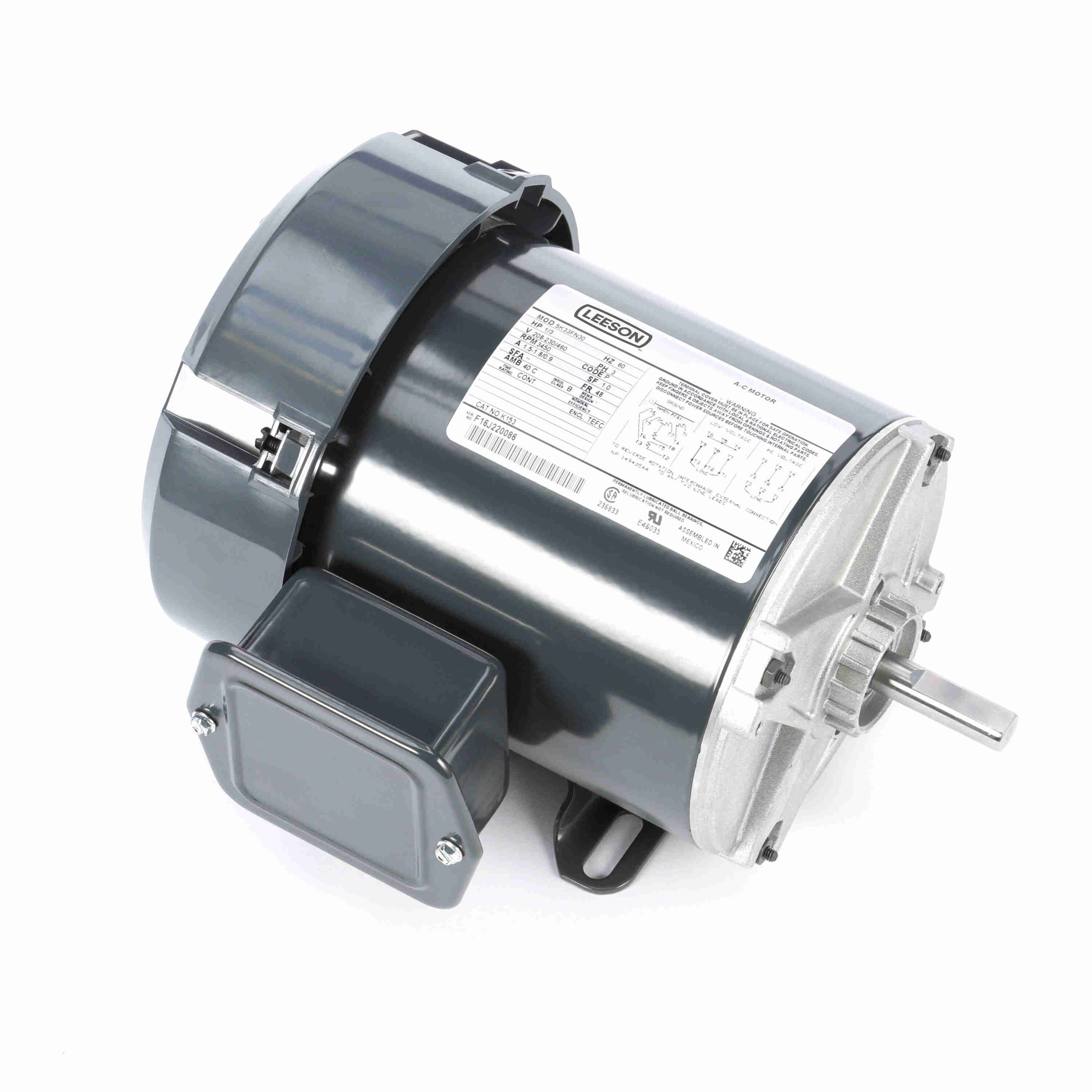

LEESON 5K33FN30 K153 General Purpose Motor, 0.33 HP, 3 Phase, 60 Hz, 208-230/460V, 3600 RPM
Get it by Tuesday, Aug 18
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€409.36 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Capacitor Required | No |
| Efficiency | 59.5% , 61% |
| Efficiency Group | Standard |
| Frame | 48 |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 1.8-1.5/0.9A |
| Hp | 1/3 hp |
| Insulation Class | Class B |
| Inverter Rated | No |
| Length Less Shaft | 8 11/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | CW, CCW |
| Motor Thermal Protection | None |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Speed | 3450 RPM |
| Nema Design | B |
| No. Of Speed | 1 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 61% |
| Overall Length | 10 3/16" |
| Phase | 3 |
| Product Datasheet | leeson-5k33fn30.pdf |
| Service Factor | 1.0 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 1/2" |
| Speed | 3001-3600 RPM |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V AC |
Shipping Info:
| Ship weight (kg) | 7.2 |
| Ship height (cm) | 24.13 |
| Ship length (cm) | 38.46 |
| Ship width (cm) | 25.88 |
| HS code | 8501514040 |
| Country of Origin | MX |
