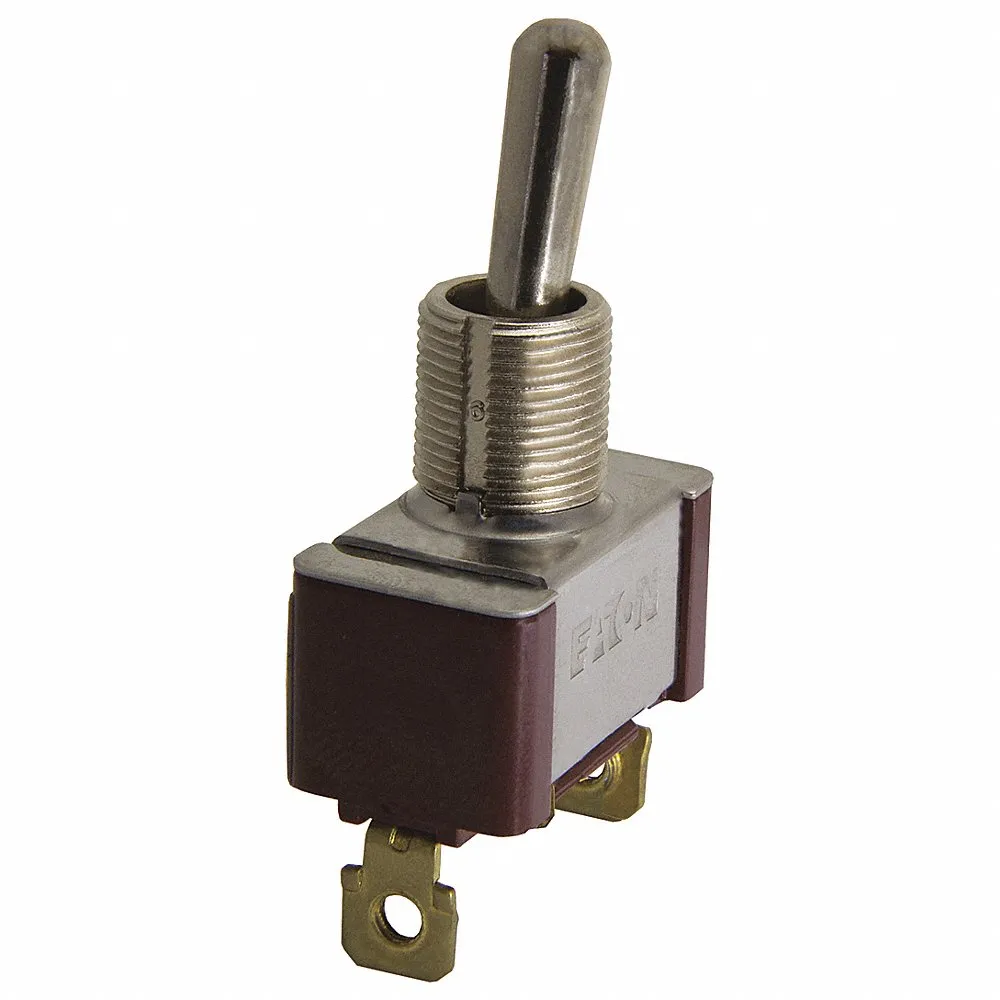

EATON 7546K36 Toggle Switch, SPST, 2 Connections, On/Off, 10A, 250 VAC/20A, 125 VAC, 3/4HP, Screw
Item: BJ6XEWModel: 7546K36Cross Ref: 21EV97
7 In Stock
Ships within 2 days via
10.00% off
€13.01 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Toggle Switch |
| Ac Contact Rating | 10A @ 250V, 20A @ 125V |
| Actuator Color | Silver |
| Actuator Length | 17/25" |
| Bushing Length | 0.469" |
| Circuit Position Down | Off |
| Circuit Position Up | On |
| Contact Form | SPST |
| Features | Rotate Keyway 180° |
| Horsepower | 1/2 hp @ 125V AC, 3/4 hp @ 250V AC |
| Includes | Panel Mounting |
| Lever Length | 0.469" |
| Metal Actuator Finish | Silver |
| Number Of Connections | 2 |
| Number Of Poles | 1 |
| Number Of Positions | 3 |
| Operating Temperature - Maximum | 150°F |
| Operating Temperature - Minimum | 0°F |
| Overall Depth | 1.22" |
| Overall Height | 2.07" |
| Overall Width | 0.62" |
| Product Height | 1 1/5" |
| Product Type | Toggle Switch |
| Product Width | 3/4" |
| Series | 7500 Series |
| Stem Color | Silver |
| Stem Dia. And Thread Size | 1/2" |
| Stem Diameter | 0.47" |
| Stem Length | 0.47" |
| Stem Thread Size | 15/32"-32 |
| Switch Function Configuration | On/None/Off |
| Terminal Connection Type | Screw Terminals |
| Terminals | Screw |
Shipping Info:
| Ship height (cm) | 3.05 |
| Ship length (cm) | 3.33 |
| Ship width (cm) | 1.91 |
| Country of Origin | MX |
Product Variants
| Product | Model | Number Of Connections | Terminals | Contact Form | Ac Contact Rating | Actuator Length | Stem Length | Number Of Poles | Number Of Positions | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
7500K14 | 2 | Screw | SPST | 10A @ 250V, 20A @ 125V | 14/25" | 0.47" | 1 | 3 | €10.23 | |
 |
7501K13 | 2 | Solder Lug | SPST | 10A @ 250V, 20A @ 125V | 14/25" | 0.47" | 1 | 3 | €8.28 | |
 |
7501K15 | 2 | Quick Connect | SPST | 10A @ 250V, 20A @ 125V | 14/25" | 0.47" | 1 | 3 | €7.98 | |
 |
7503K15 | 3 | Spade | SPST | 10A @ 250V, 20A @ 125V | 14/25" | 0.47" | 1 | 3 | €14.68 | |
 |
7503K13 | 3 | Solder Lug | SPST | 10A @ 250V, 20A @ 125V | 14/25" | 0.47" | 1 | 3 | €8.12 | |
 |
7502K13 | 3 | Screw | SPST | 10A @ 250V, 20A @ 125V | 14/25" | 0.47" | 1 | 3 | €14.13 | |
|
7504K4 | 3 | Screw | SPST | 10A @ 250V, 20A @ 125V | 14/25" | 0.47" | 1 | 3 | €12.17 |
