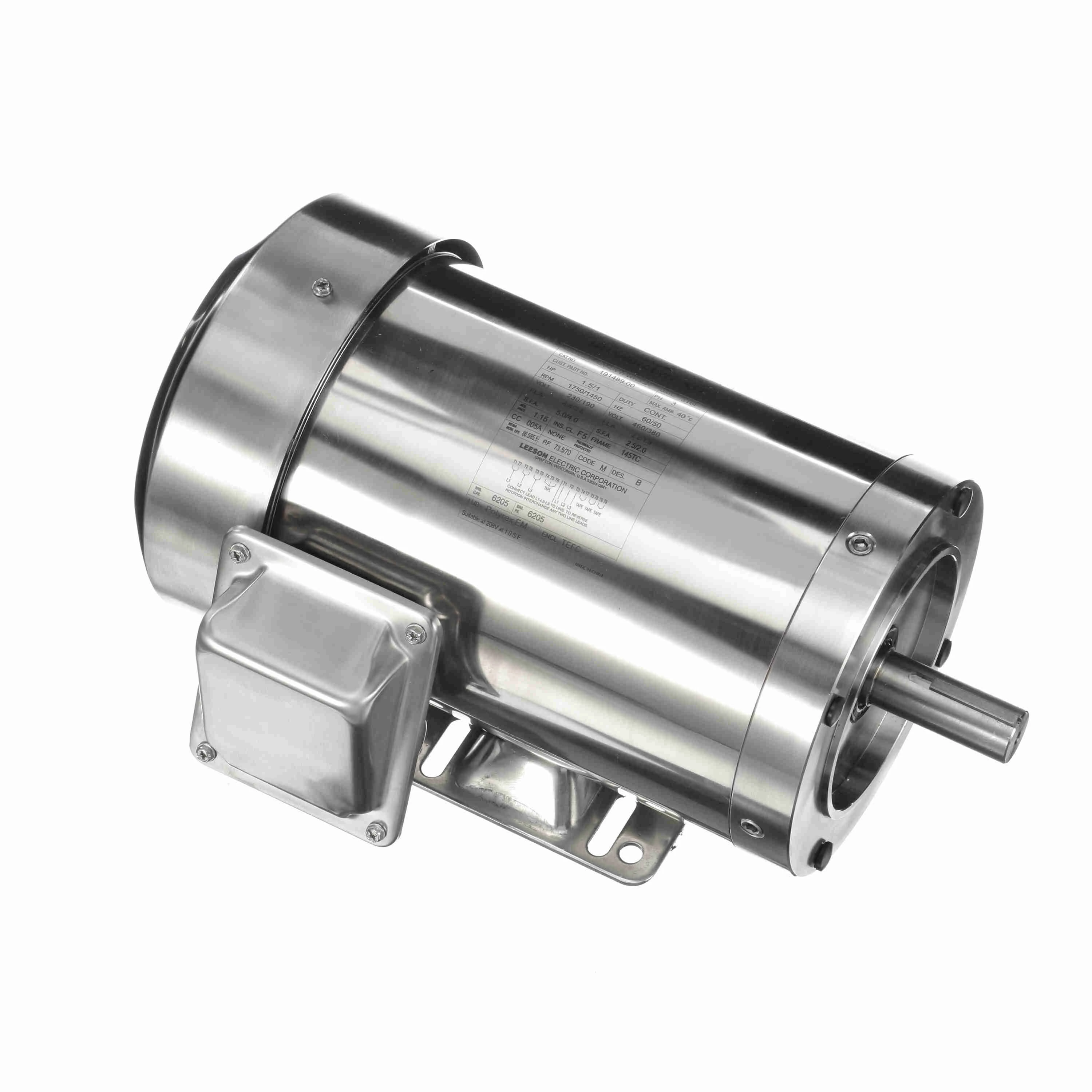

LEESON 191414.00 C6T11NK4A General Purpose Motor, 0.50/0.33 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1200 RPM
Get it by Friday, Aug 28
5.00% off
€1,681.62 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Amps | 2/1A |
| Application | Washdown |
| Bearing Type | Ball |
| Body Dia. | 6 1/2" |
| Bolt Circle Dia. | 5 7/8" |
| Code | K |
| Conduit Box Location | Exterior |
| Design | B |
| Design Code | B |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 80% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tenv |
| Finish | Unfinished |
| Frame | 56C |
| Frame Length | 6" |
| Frame Material | Stainless Steel |
| Frame Type | 56C |
| Frequency | 50/60 Hz |
| Frequency | 50/60 Hz , 60 Hz |
| Full Load Amps | 2-2.1/1A |
| Grade | Grade 300 |
| Grease Type | Polyrex EM |
| Height | 9.65" |
| Hp | 1/2 hp |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Ip Code | IP55 |
| Kva Code | K |
| Kw | 0.37 kW |
| Length | 11.22" |
| Length Less Shaft | 8 1/2" |
| Max. Ambient Temp. | 40°C |
| Max. Speed | 1140 RPM |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Non Ventilated |
| Motor Frame Material | Stainless Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face, Base |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | CW, CCW |
| Motor Thermal Protection | None |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Speed | 1140 RPM |
| Nema Design | B |
| No. Of Poles | 6 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 80% |
| Opp Drive End Bearing Size | 6205 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 9 3/4" |
| Packaging | B |
| Phase | 3 |
| Power | 0.37 kW |
| Power Factor | 59 |
| Product Datasheet | leeson-191414-00.pdf |
| Product Type | Washdown Motor |
| Resistance Main | 25.6 ohms |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Material | Stainless Steel |
| Shaft Type | NEMA 56 |
| Speed | 1100-1200 RPM |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Type | TN |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V |
| Width | 11" |
Shipping Info:
| Ship weight (kg) | 14.85 |
| Ship height (cm) | 24.51 |
| Ship length (cm) | 28.5 |
| Ship width (cm) | 27.94 |
| Country of Origin | CN |
Product Details:
- Eff 100%: 80
- Bearing OPE: 6205
- CC Number: EXEMPT
- Bearing PE: 6205
- Winding: QT6363
- GROUP: 3
- Paint: VERIFY
- S. F Amps: 2.2-2.1 / 1.05
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Frequency | Full Load Amps | Mounting Type | Ambient Temp. | Thermal Protection | Motor Shaft Rotation | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
191201.00 | 208-230/460V | 33/100 hp | 60 Hz | 1.2-1.3/0.65A | Rigid Base | 104°F | No Protection | CW, CCW | €1,362.75 | |
 |
191415.00 | 208-230/460V | 3/4 hp | 60 Hz | 3.2/1.6A | Rigid Base | 104°F | No Protection | CW, CCW | €2,629.22 | |
 |
191419.00 | 208-230/460V AC | 1/2 hp | 50/60 Hz | 26.4/13.2A | Round | 104°F | None | CWSE | €1,585.92 | |
 |
191203.00 | 208-230/460V | 1/2 hp | 60 Hz | 1.5-1.6/0.75A | Face, Base | 104°F | No Protection | CW, CCW | €1,684.06 | |
 |
191206.00 | 208-230/460V AC | 3/4 hp | 50/60 Hz | 2-2.2/1A | Face, Base | 104°F | None | CW, CCW | €1,871.69 | |
 |
191208.00 | 208-230/460V | 3/4 hp | 50/60 Hz | 2.3-2.4/1.2A | Face | 104°F | No Protection | CWSE | €1,701.66 | |
 |
191205.00 | 208-230/460V | 1/2 hp | 60 Hz | 1.6-1.5/0.8A | Face | 40°C | No Protection | Clockwise Shaft End | €1,307.41 |
