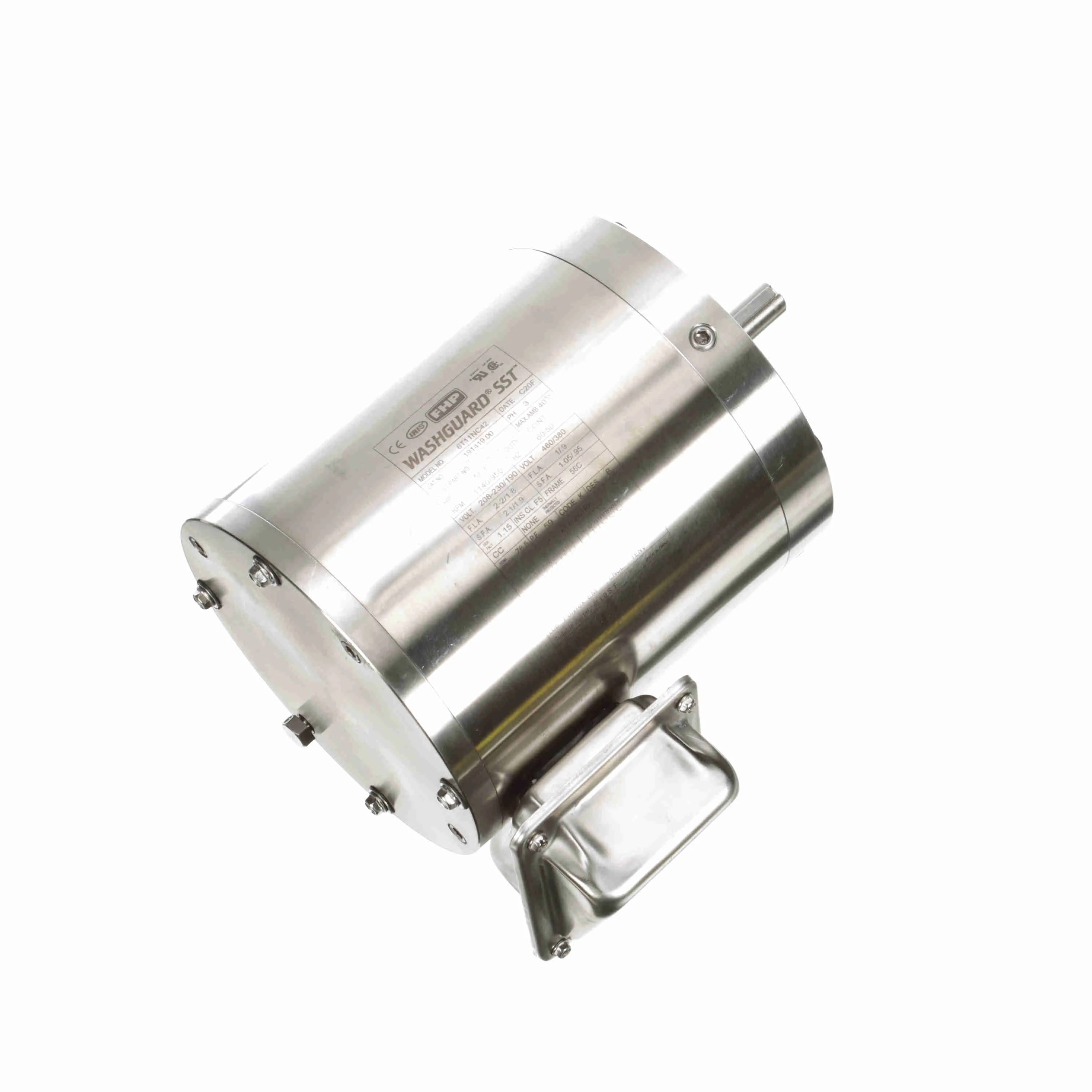

LEESON 191419.00 C6T11NC42A General Purpose Motor 50-60 Hertz | AJ2TMN 48ZH57 / C6T11NC42A

LEESON 191419.00 C6T11NC42A General Purpose Motor, 0.50/0.33 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1200 RPM

Item: AJ2TMNModel: 191419.00Cross Ref: 48ZH57 / C6T11NC42A
Check Availability
In Stock
HP
Efficiency

Get it by Tuesday, May 19

€1,779.66
5.00% off
€1,690.68 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Washdown Motor
Ambient Temp. 104°F
Application Washdown
Bearing Type Ball
Body Dia. 6 1/2"
Bolt Circle Dia. 5 7/8"
Code K
Conduit Box Location Exterior
Conduit Box Position F1
Design B
Duty Cycle Continuous
Finish Unfinished
Frame 56C
Frame Material Stainless Steel
Frequency 50/60 Hz
Full Load Amps 26.4/13.2A
Grade Grade 300
Grease Type Polyrex EM
Hp 1/2 hp
Insulation Class Class F
Length Less Shaft 8 1/2"
Max. Ambient Temp. 40°C
Motor Application Washdown
Motor Bearings Ball
Motor Design 3-Phase
Motor Enclosure Design Totally Enclosed Non Ventilated
Motor Frame Material Stainless Steel
Motor Mounting Position Horizontal
Motor Mounting Type Face
Motor Service Factor 1.15
Motor Shaft Design Keyed
Motor Shaft Rotation Counter Clockwise Shaft End
Motor Shaft Rotation CWSE
Motor Type Three Phase
Mounting Type Round
Nameplate Rpm 1140 RPM
Nema Design B
No. Of Speeds 1
Nominal Efficiency 80%
Overall Length 9 3/4"
Packaging B
Phase 3
Power 0.37 kW
Power Factor 59
Product Datasheet leeson-191419-00.pdf
Product Type Washdown Motor
Rotation Reversible
Service Factor 1.15
Shaft Dia. 5/8"
Shaft Length 1 7/8"
Shaft Material Stainless Steel
Standards Ce, Csa Certified, Ul Recognized
Thermal Protection None
Type TN
Usable @ 200v No
Usable @ 208v Yes
Voltage 208-230/460V AC

Shipping Info:

Ship weight (kg) 13.05
Ship height (cm)24.51
Ship length (cm)28.5
Ship width (cm)27.94
Country of OriginCN

Product Details:

    • Eff 100%: 80
    • Bearing OPE: 6205
    • CC Number: EXEMPT
    • Bearing PE: 6205
    • Winding: QT6363
    • GROUP: 3
    • Paint: VERIFY
    • S. F Amps: 2.2-2.1 / 1.05

Documentation:

Datasheet

Product Variants

ProductModelVoltageNameplate RpmHpFrequencyFull Load AmpsMounting TypeAmbient Temp.Thermal ProtectionPrice
LEESON 191201.00 C6T17NK29A Washdown Motor 50-60 Hertz | AJ2TLU 48ZH62 / C6T17NK29A 191201.00208-230/460V1750 RPM33/100 hp60 Hz1.2-1.3/0.65ARigid Base104°FNo Protection€1,529.07
LEESON 191414.00 C6T11NK4A General Purpose Motor 50-60 Hertz | AJ2TMH 48ZH65 / C6T11NK4A 191414.00208-230/460V1140 RPM1/2 hp60 Hz2-2.1/1ARigid Base104°FNo Protection€1,808.49
LEESON 191415.00 C6T17NK5A General Purpose Motor 50-60 Hertz | AJ2TMK 48ZH68 / C6T17NK5A 191415.00208-230/460V1140 RPM3/4 hp60 Hz3.2/1.6ARigid Base104°FNo Protection€2,482.84
LEESON 191203.00 Washdown Motor, 1/2 hp, 3 Phase, 3450 Rpm | CH6HZJ 48ZH63 191203.00208-230/460V3450 RPM1/2 hp60 Hz1.5-1.6/0.75AFace/Base104°FNo Protection€1,707.43
LEESON 191206.00 Washdown Motor, 3/4 hp, 3 Phase, 3450 Rpm | CH6HZK 48ZH66 191206.00208-230/460V AC3450 RPM3/4 hp50/60 Hz2-2.2/1AFace/Base104°FNone€1,801.31
LEESON 191208.00 Washdown Motor, 3/4 hp, 3 Phase, 1740 Rpm | CH6HZL 48ZH58 191208.00208-230/460V1740 RPM3/4 hp50/60 Hz2.3-2.4/1.2AFace104°FNo Protection€1,834.52
LEESON 191205.00 Washdown Motor, 3-Phase, 1/2 HP, 1, 740 Nameplate RPM, 208-230/460VAC, 56C | CR8PTL 48ZH56 191205.00208-230/460V1740 RPM1/2 hp60 Hz1.6-1.5/0.8AFace40°CNo Protection€1,508.40
