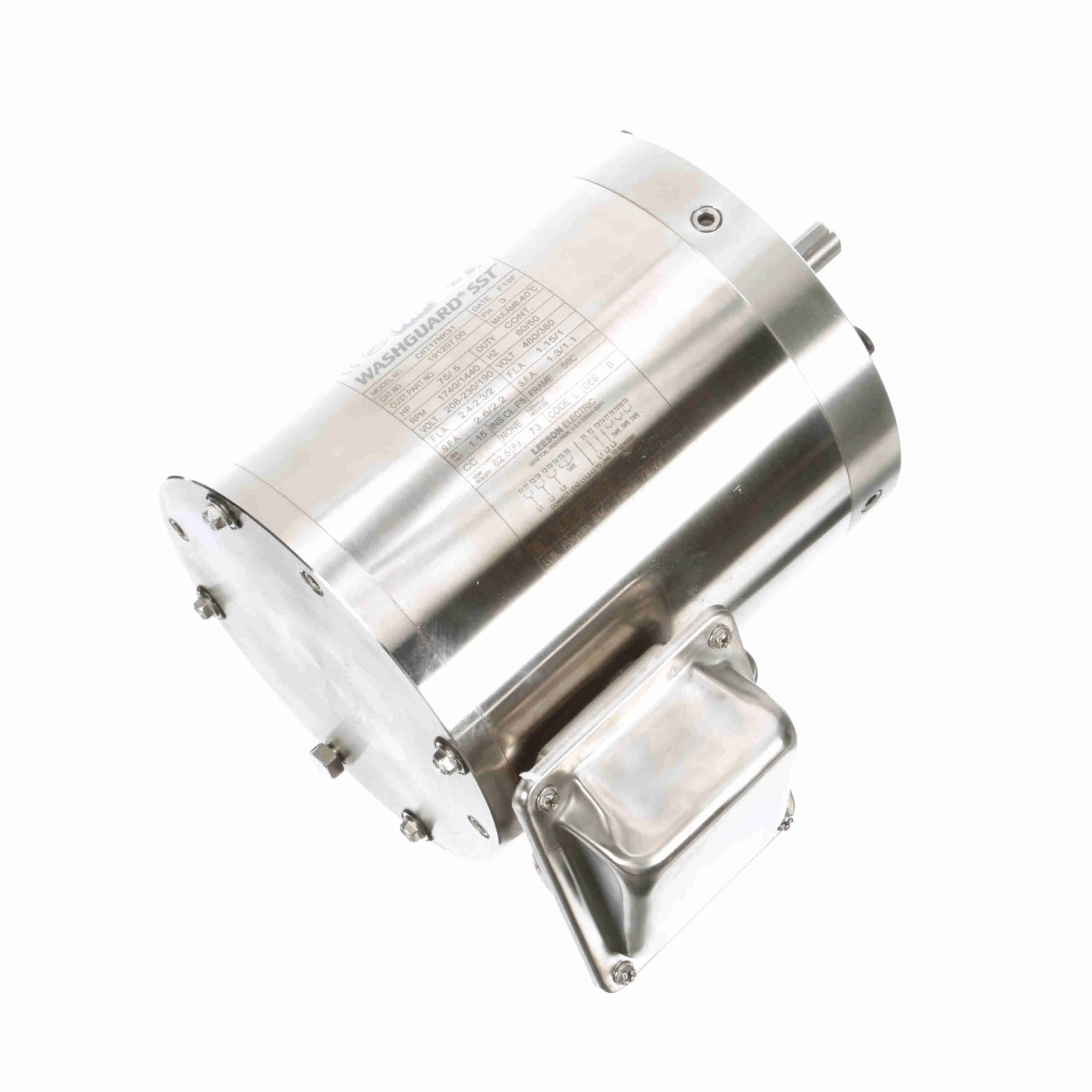

LEESON 191207.00 C6T17NK31A General Purpose Motor, 0.75/0.50 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 RPM
Get it by Tuesday, May 19
5.00% off
€2,088.20 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Amps | 2.3/1.2A |
| Bearing Type | Ball |
| Body Dia. | 6.7" |
| Design Code | B |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 82.5% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tenv |
| Endshield Material | Stainless Steel |
| Frame | 56C |
| Frame Length | 6" |
| Frame Material | Stainless Steel |
| Frame Type | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 2.4-2.3/1.2A |
| Height | 9.65" |
| Hp | 3/4 hp |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Ip Code | IP55 |
| Kva Code | L |
| Kw | 0.56 kW |
| Length | 11.22" |
| Max. Ambient Temp. | 40°C |
| Max. Rpm | 1740 RPM |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Frame Material | Stainless Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | NEMA 56 |
| Motor Shaft Rotation | CW/CCW |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1740 RPM |
| Nema Design | B |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 82.5% |
| Opp. Drive End Bearing Size | 6205 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 9 3/4" |
| Phase | 3 |
| Power Factor | 73 |
| Product Datasheet | leeson-191207-00.pdf |
| Product Type | Washdown Motor |
| Resistance Main | 17.8 ohms |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V |
| Width | 11" |
Shipping Info:
| Ship weight (kg) | 15.75 |
| Ship height (cm) | 24.51 |
| Ship length (cm) | 28.5 |
| Ship width (cm) | 27.94 |
| Country of Origin | CN |
Documentation:
Product Variants
| Product | Model | Voltage | Nameplate Rpm | Hp | Frequency | Full Load Amps | Mounting Type | Ambient Temp. | Thermal Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
191201.00 | 208-230/460V | 1750 RPM | 33/100 hp | 60 Hz | 1.2-1.3/0.65A | Rigid Base | 104°F | No Protection | €1,529.07 | |
 |
191414.00 | 208-230/460V | 1140 RPM | 1/2 hp | 60 Hz | 2-2.1/1A | Rigid Base | 104°F | No Protection | €1,808.49 | |
 |
191415.00 | 208-230/460V | 1140 RPM | 3/4 hp | 60 Hz | 3.2/1.6A | Rigid Base | 104°F | No Protection | €2,482.84 | |
 |
191419.00 | 208-230/460V AC | 1140 RPM | 1/2 hp | 50/60 Hz | 26.4/13.2A | Round | 104°F | None | €1,779.66 | |
 |
191203.00 | 208-230/460V | 3450 RPM | 1/2 hp | 60 Hz | 1.5-1.6/0.75A | Face/Base | 104°F | No Protection | €1,707.43 | |
 |
191206.00 | 208-230/460V AC | 3450 RPM | 3/4 hp | 50/60 Hz | 2-2.2/1A | Face/Base | 104°F | None | €1,801.31 | |
 |
191208.00 | 208-230/460V | 1740 RPM | 3/4 hp | 50/60 Hz | 2.3-2.4/1.2A | Face | 104°F | No Protection | €1,834.52 |
