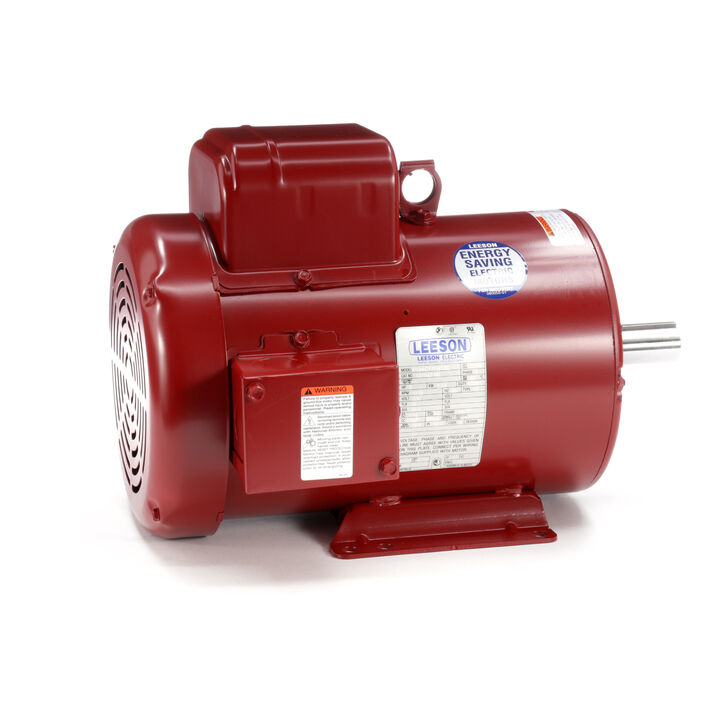

LEESON 131542.00 P184C17FB13C Agricultural Motor, 3 HP, 1 Phase, 60 Hz, 230V, 1800 RPM
Get it by Tuesday, Aug 25
5.00% off
€1,347.36 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Farm Duty Motor |
| Application | Farm Duty |
| Assembly | 180-033 |
| Bearing Type | Ball |
| Capacitor Required | Yes |
| Code | K |
| Drive End Bearing Size | 6206 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 75.5% |
| Enclosure Type | Tefc |
| Finish | Enamel |
| Frame | 184T |
| Frame Material | Rolled Steel |
| Frame Type | 184T |
| Frequency | 60 Hz |
| Full Load Amps | 19A |
| Hp | 3 hp |
| Insulation Class | Class F |
| Kw | 2.2 kW |
| Lubrication | Polyrex EM |
| Max. Ambient Temp. | 40°C |
| Motor Application | High Torque |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| Nameplate Speed | 1740 RPM |
| Nema Design | L |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp Drive End Bearing Size | 6205 |
| Opp. Drive End Bearing Type | Ball |
| Output Power | 2.24 kW |
| Overall Length | 16 7/16" |
| Packaging | B |
| Phase | 1 |
| Power | 2.24 kW |
| Power Factor | 68 |
| Service Factor | 1.15 |
| Shaft Dia. | 1 1/8" |
| Shaft Length | 2 3/4" |
| Speed | 1700-1800 RPM |
| Thermal Protection | Manual |
| Type | CF |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230V |
Shipping Info:
| Ship weight (kg) | 38.7 |
| Ship height (cm) | 31.45 |
| Ship length (cm) | 51.13 |
| Ship width (cm) | 37.16 |
| Country of Origin | MX |
Product Details:
- S. F Amps: 21.0
- Eff 100%: 75.5
- Bearing OPE: 6205
- CC Number: EXEMPT
- Bearing PE: 6206
- Nameplate: 081285
- Winding: C8429
- GROUP: 2
- Paint: RED (ENAMEL)
Product Variants
| Product | Model | Voltage | Hp | Frame | Motor Application | Motor Design | Insulation Class | Service Factor | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
110086.00 | 115/208-230V | 1/2 hp | 56 | Farm Duty | Capacitor Start | Class B | 1.15 | 10 1/2" | €378.51 | |
 |
110087.00 | 115V | 3/4 hp | 56 | Farm Duty | Capacitor Start | Class B | 1.15 | 11 1/2" | €548.26 | |
 |
110088.00 | 115V | 1 hp | 56 | Farm Duty | Capacitor Start | Class F | 1 | 12" | €1,080.61 | |
 |
110089.00 | 115/208-230V | 1 1/2 hp | 56H | Farm Duty | Capacitor Start, Run | Class F | 1.15 | 13" | €1,084.30 | |
 |
110090.00 | 230V | 2 hp | 56HZ | Farm Duty | Capacitor Start, Run | Class F | 1.15 | 13 15/16" | €1,546.43 | |
 |
113256.00 | 115/208-230V | 33/100 hp | 56 | Farm Duty | Capacitor Start | Class B | 1.15 | 10 1/2" | €792.27 | |
 |
113938.00 | 115/208-230V | 1 1/2 hp | 56HZ | Farm Duty | Capacitor Start, Run | Class F | 1.15 | 13 7/16" | €626.04 |
