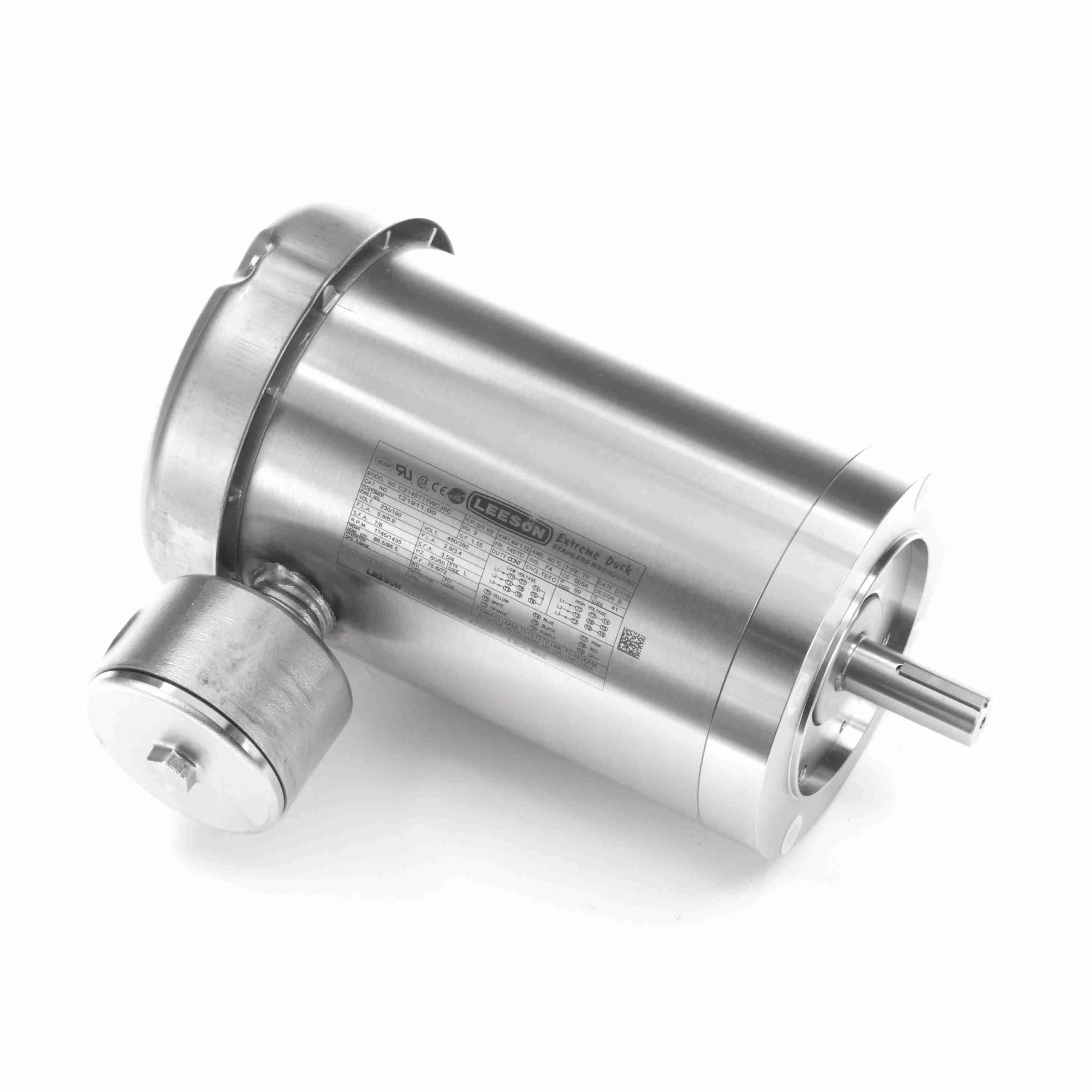

LEESON 121911.00 CZ145T17UC1E General Purpose Motor, 2/1.50 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 RPM
Get it by Tuesday, Aug 25
5.00% off
€3,929.04 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Amps | 5.8/2.9A |
| Application | Washdown |
| Bearing Type | Ball |
| Body Dia. | 6 14/25" |
| Bolt Circle Dia. | 5 7/8" |
| Cc Number | CC005A |
| Code | L |
| Conduit Box Position | F1 |
| Design | B |
| Design Code | B |
| Drain Plug | C Face |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tefc |
| End Shield Material | Stainless Steel |
| Finish | Paint Free |
| Frame | 143TC |
| Frame Length | 8 1/4" |
| Frame Material | Stainless Steel |
| Frame Type | 145TC |
| Frequency | 50/60 Hz |
| Frequency | 60 Hz |
| Grade | Grade 300 |
| Grease Type | Polyrex EM |
| Height | 12 22/25" |
| Hp | 2 hp |
| Insulation Class | Class F |
| Ip Code | IP69 |
| Kva Code | L |
| Kw | 1.5 kW |
| Length | 17.94" |
| Max. Speed | 1745 RPM |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Orientation | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | CW, CCW |
| Motor Type | Three Phase |
| Mounting Type | Round |
| Nameplate Speed | 1745 RPM |
| Nema Design | B |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 86.5% |
| Opp Drive End Bearing Size | 6205 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 13 3/16" |
| Packaging | B |
| Phase | 3 |
| Power | 1.5 kW |
| Power Factor | 75.6 |
| Product Datasheet | leeson-121911-00.pdf |
| Removable Base | No |
| Resistance Main | 6 ohms |
| Rotation | Reversible |
| Service Factor | 1.15 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2 1/4" |
| Shaft Material | Stainless Steel |
| Shaft Type | T |
| Speed | 1700-1800 RPM |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Type | TF |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V |
| Width | 13.06" |
Shipping Info:
| Ship weight (kg) | 25.2 |
| Ship height (cm) | 32.72 |
| Ship length (cm) | 45.57 |
| Ship width (cm) | 33.17 |
| Country of Origin | US |
Product Details:
- Supersedes Leeson - 121743.00
- Eff 100%: 86.5
- Bearing OPE: 6205
- CC Number: CC005A
- Bearing PE: 6205
- Nameplate: 213-0016
- Winding: T634340
- GROUP: 11
- S. F Amps: 7 / 3.5
Documentation:
Product Variants
| Product | Model | Frequency | Voltage | Hp | Mounting Type | Motor Enclosure Design | Full Load Amps | Motor Type | Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
121880.00 | 60 Hz | 230/460V | 1 1/2 hp | Rigid Base | Totally Enclosed Fan Cooled | 2.4A | Three Phase | 7/8" | €3,005.18 | |
 |
121881.00 | 60 Hz | 230V | 2 hp | Rigid Base | Totally Enclosed Fan Cooled | 2A | Three Phase | 7/8" | €2,046.12 | |
 |
121882.00 | 60 Hz | 230/460V | 2 hp | Rigid Base | Totally Enclosed Fan Cooled | 2A | Three Phase | 7/8" | €2,065.47 | |
 |
103412.00 | 60 Hz | 208-230/460V | 3/4 hp | Rigid Base | Totally Enclosed Fan Cooled | 2.5-2.4/1.2A | Squirrel Cage Induction Run | 5/8" | €3,557.60 | |
 |
103414.00 | 60 Hz | 208-230/460V | 3/4 hp | Round | Totally Enclosed Fan Cooled | 2.5-2.4/1.2A | Squirrel Cage Induction Run | 5/8" | €1,663.89 | |
 |
119512.00 | 60 Hz | 208-230/460V | 1 hp | Round | Totally Enclosed Fan Cooled | 3.2/1.6A | Three Phase | 5/8" | €3,106.91 | |
 |
119520.00 | 60 Hz | 208-230/460V | 1 1/2 hp | Round | Totally Enclosed Fan Cooled | 4.6-4.8/2.4A | Three Phase | 5/8" | €1,815.13 |
