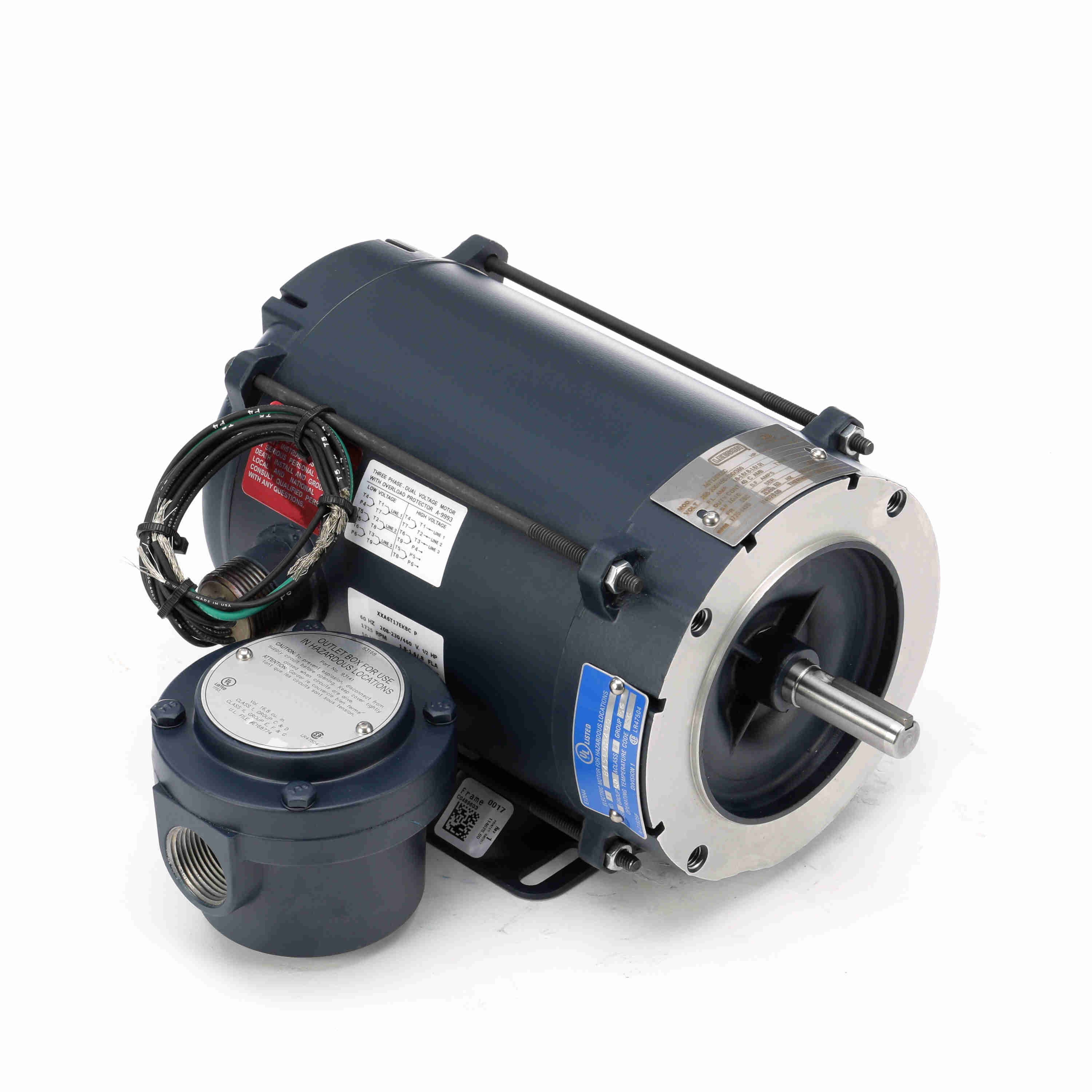

LEESON 114628.00 6T17EK8C Explosion Proof Motor, 0.50 HP, 3 Phase, 60/50 Hz, 208-230/460 and 190/380V, 1800 RPM
Get it by Tuesday, Dec 23
10.00% off
€1,417.53 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Explosion Proof Motor |
| Ambient Temp. | 40°C |
| Amps | 1.6-1.8/0.8A |
| Assembly | B-LO6421C-681 |
| Code | L |
| Design | B |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 80% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | EPNV |
| Frame | 56C |
| Frame Length | 6.81" |
| Frame Material | Rolled Steel |
| Frame Type | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 1.8-1.6/0.8A |
| Grease Type | Polyrex EM |
| Hazardous Location | Div 1 Exp Proof Cl I Gr Cd Cl Ii Gr Fg T3C |
| Hazardous Location Class | 1C, D/2F, G |
| Height | 8 3/25" |
| Hp | 1/2 hp |
| Insulation Class | Class B |
| Ip Code | IP54 |
| Kva Code | L |
| Kw | 0.37 kW |
| Length | 16.38" |
| Lubrication | Polyrex EM |
| Max. Rpm | 1725 RPM |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Reversible |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1800/1500 RPM |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Rating | 0.37 kW |
| Packaging | B |
| Phase | 3 |
| Power | 0.37 kW |
| Power Factor | 72 |
| Resistance Main | 36.24 ohms |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Starting Method | Across The Line |
| Temp. Code | T3C |
| Thermal Protection | Automatic |
| Type | TE |
| Voltage | 208-230/460V |
| Width | 10 1/2" |
Shipping Info:
| Ship weight (kg) | 13.95 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 41.61 |
| Ship width (cm) | 26.67 |
| Country of Origin | MX |
Product Details:
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6203
- Nameplate: A-92340
- Winding: ZT471
- GROUP: 3
- Paint: BLUE - LEESON (ENAMEL)
- Eff 100%: 80 / 78.5
Product Variants
| Product | Model | Voltage | Hp | Frame | Nameplate Rpm | Frame Material | Service Factor | Enclosure Type | No. Of Poles | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
114626.00 | 208-230/460V | 33/100 hp | 56C | 1800/1500 RPM | Rolled Steel | 1 | EPNV | 4 | €1,537.76 | |
 |
114630.00 | 208-230/460V | 3/4 hp | 56C | 1800/1500 RPM | Rolled Steel | 1 | EPFC | 4 | €1,722.65 | |
 |
116190.00 | 208-230/460V | 1/2 hp | 56C | 1800 RPM | Rolled Steel | 1 | EPFC | 4 | €1,088.81 | |
 |
116191.00 | 208-230/460V | 3/4 hp | 56C | 1800 RPM | Rolled Steel | 1 | EPFC | 4 | €1,834.59 | |
 |
117859.00 | 208-230/460V | 33/100 hp | 56C | 1800/1500 RPM | Rolled Steel | 1 | EPNV | 4 | €1,024.61 | |
 |
119436.00 | 230/460V | 1 hp | 56C | 3600/3000 RPM | Rolled Steel | 1 | EPFC | 2 | €1,264.72 | |
 |
119437.00 | 230/460V | 1 hp | 56C | - | Rolled Steel | 1 | EPFC | 4 | €2,040.14 |
