LEESON 112428.00 C6T17WB7G General Purpose Motor, 0.75 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM
Get it by Wednesday, Dec 24
10.00% off
€1,031.86 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Washdown Motor |
| Ambient Temp. | 104°F |
| Amps | 2.8/1.4A |
| Application | Washdown |
| Bearing Type | Ball |
| Body Dia. | 7.38" |
| Code | K |
| Color | White |
| Conduit Box Location | Exterior |
| Design | B |
| Design Code | B |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 77% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Tefc |
| Finish | Epoxy Coated |
| Frame | 56 |
| Frame Length | 5" |
| Frame Material | Rolled Steel |
| Frame Type | 56 |
| Frequency | 60 Hz |
| Full Load Amps | 1.4A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 3/4 hp |
| Hz | 60 Hz |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Ip Code | IP55 |
| Kva Code | K |
| Kw | 0.56 kW |
| Length | 14 11/25" |
| Length Less Shaft | 8 9/16" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Max. Rpm | 1725 RPM |
| Motor Application | Washdown |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.15 |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1725 RPM |
| Nema Design | B |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 77% |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 10 1/2" |
| Packaging | B |
| Phase | 3 |
| Power | 0.56 kW |
| Power Factor | 65 |
| Product Type | Washdown Motor |
| Removable Base | No |
| Resistance Main | 26.24 ohms |
| Rotation | Reversible |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Standards | Bissc, Ce, Csa, Ul |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Type | TF |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 208-230/460V |
| Weight | 30 lbs. |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 13.5 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Eff 100%: 77
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6205
- Nameplate: 080904
- Winding: T634188
- GROUP: 3
- Paint: WHITE - LEESON (EPOXY)
- S. F Amps: 3 / 1.5
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Finish | Frame | Full Load Amps | Service Factor | Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
112427.00 | 208-230/460V | 1/2 hp | 1725 RPM | Epoxy Coated | 56 | 2A | 1.15 | 5/8" | €872.33 | |
 |
119475.00 | 208-230/460V | 1 hp | 1760 RPM | Epoxy Coated | 143JM | 3.2/1.6A | 1.15 | 5/8" | €1,599.78 | |
 |
121865.00 | 230/460V | 1 hp | 1760 RPM | Unfinished | 143T | 3.2/1.6A | 1.15 | 7/8" | €1,514.71 | |
 |
121866.00 | 230/460V | 2 hp | 1745 RPM | Epoxy Coated | 145T | 2A | 1.15 | 7/8" | €1,559.84 | |
 |
121869.00 | 230/460V | 1 1/2 hp | 1750 RPM | Epoxy Coated | 145T | 2.4A | 1.15 | 7/8" | €891.01 | |
 |
132196.00 | 230/460V | 3 hp | 1760 RPM | Epoxy Coated | 182T | 7.8/3.9A | 1.15 | 1 1/8" | €1,594.30 | |
 |

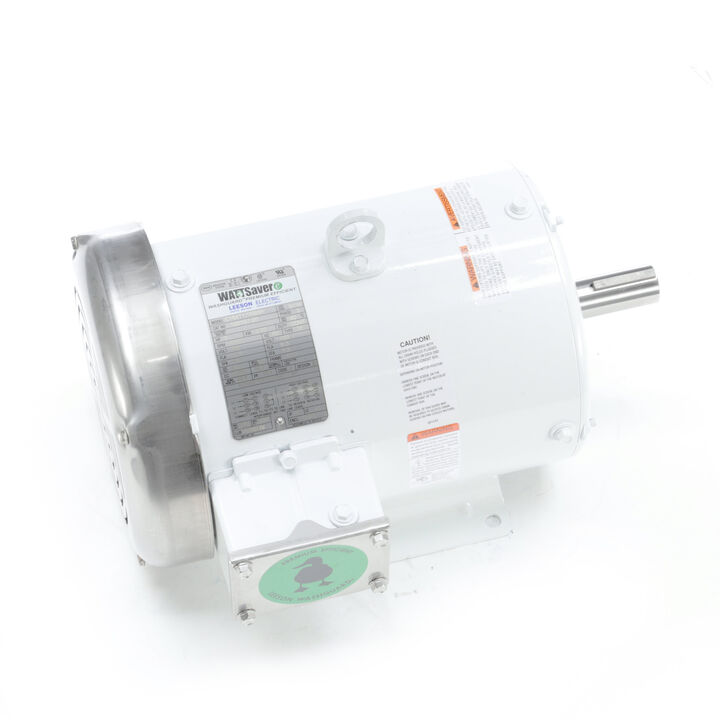

132197.00 | 230/460V | 5 hp | 1760 RPM | Epoxy Coated | 184T | 12.6/6.3A | 1.15 | 1 1/8" | €2,318.42 |
