LEESON 119475.00 C6T17WB18A General Purpose Motor, 1 HP, 3 Phase, 60 Hz, 230/460V, 1800 RPM

Item: AJ2RCQModel: 119475.00Cross Ref: 52ZW10 / C6T17WB18A

Check Availability

In Stock

Get it by Wednesday, Dec 24

~~€1,599.78~~

10.00% off

€1,439.81 /unit

Add To Cart

Request a Quote

Payment

Delivery

Product Specifications:

Item	Washdown Motor
Ambient Temp.	104°F
Amps	3.2/1.6A
Application	Washdown
Bearing Type	Ball
Body Dia.	7.38"
Bolt Circle Dia.	5 7/8"
Cc Number	CC005A
Code	N
Color	White
Conduit Box Location	Exterior
Design	B
Design Code	B
Drain Plug	(4) Shaft End, (4) Lead End, (2) In Conduit Box
Drive End Bearing Size	6205
Drive End Bearing Type	Ball
Duty Cycle	Continuous
Efficiency	85.5%
Electrical Type	Squirrel Cage, Induction Run
Enclosure Type	Tefc
Endshield Material	Cast Iron
Finish	Epoxy Coated
Frame	143JM
Frame Length	6 3/4"
Frame Material	Rolled Steel
Frame Type	56
Frequency	60 Hz
Full Load Amps	3.2/1.6A
Grease Type	Polyrex EM
Height	10 22/25"
Hp	1 hp
Hz	60 Hz
Ins. Class	Class F
Insulation Class	Class F
Ip Code	IP55
Kva Code	No
Kw	0.75 kW
Length	14 11/25"
Length Less Shaft	10 5/16"
Manufacturers Warranty Length	1 yr.
Max. Ambient Temp.	40°C
Max. Rpm	1760 RPM
Motor Application	Washdown
Motor Bearings	Ball
Motor Design	3-Phase
Motor Enclosure Design	Totally Enclosed Fan Cooled
Motor Frame Material	Steel
Motor Mounting Position	Horizontal
Motor Mounting Type	Rigid Base
Motor Orientation	Horizontal
Motor Service Factor	1.15
Motor Shaft Design	Keyed
Motor Shaft Rotation	Clockwise, Counter Clockwise
Motor Shaft Rotation	Clockwise/Counter Clockwise
Motor Sub Application	Crop Dryer
Motor Type	Three Phase
Mounting Type	Rigid Base
Nameplate Rpm	1760 RPM
Nema Design	B
No. Of Poles	4
No. Of Speeds	1
Nominal Efficiency	85.5%
Opp. Drive End Bearing Size	6203
Opp. Drive End Bearing Type	Ball
Overall Length	12 1/4"
Packaging	B
Phase	3
Power	0.75 kW
Power Factor	68.5
Product Type	Washdown Motor
Resistance Main	12.96 ohms
Rotation	Reversible
Rpm	1700-1800 RPM
Service Factor	1.15
Shaft Dia.	5/8"
Shaft Length	1.94"
Shaft Material	Stainless Steel
Shaft Type	NEMA 56
Standards	Bissc Approved, Ce, Csa Certified, Ul Recognized, Usda Approved
Starting Method	Across The Line
Thermal Protection	No Protection
Type	TF
Usable @ 200v	No
Usable @ 208v	Yes
Voltage	208-230/460V
Weight	57 lbs.
Width	10 11/25"

Shipping Info:

Ship weight (kg)	25.65
Ship height (cm)	27.64
Ship length (cm)	36.68
Ship width (cm)	26.52
Country of Origin	US

Product Details:

Supersedes Leeson - 112627.00
Eff 100%: 85.5
Bearing OPE: 6203
CC Number: EXEMPT
Bearing PE: 6205
Nameplate: 081341
Winding: T634342
GROUP: 3
Paint: WHITE - LEESON (EPOXY)
S. F Amps: 3.6-3.6 / 1.8

Product Variants

Model	Voltage	Hp	Nameplate Rpm	Finish	Frame	Full Load Amps	Service Factor	Shaft Dia.	Price
112427.00	208-230/460V	1/2 hp	1725 RPM	Epoxy Coated	56	2A	1.15	5/8"	€872.33
112428.00	208-230/460V	3/4 hp	1725 RPM	Epoxy Coated	56	1.4A	1.15	5/8"	€1,146.51
121865.00	230/460V	1 hp	1760 RPM	Unfinished	143T	3.2/1.6A	1.15	7/8"	€1,514.71
121866.00	230/460V	2 hp	1745 RPM	Epoxy Coated	145T	2A	1.15	7/8"	€1,559.84
121869.00	230/460V	1 1/2 hp	1750 RPM	Epoxy Coated	145T	2.4A	1.15	7/8"	€891.01
132196.00	230/460V	3 hp	1760 RPM	Epoxy Coated	182T	7.8/3.9A	1.15	1 1/8"	€1,594.30

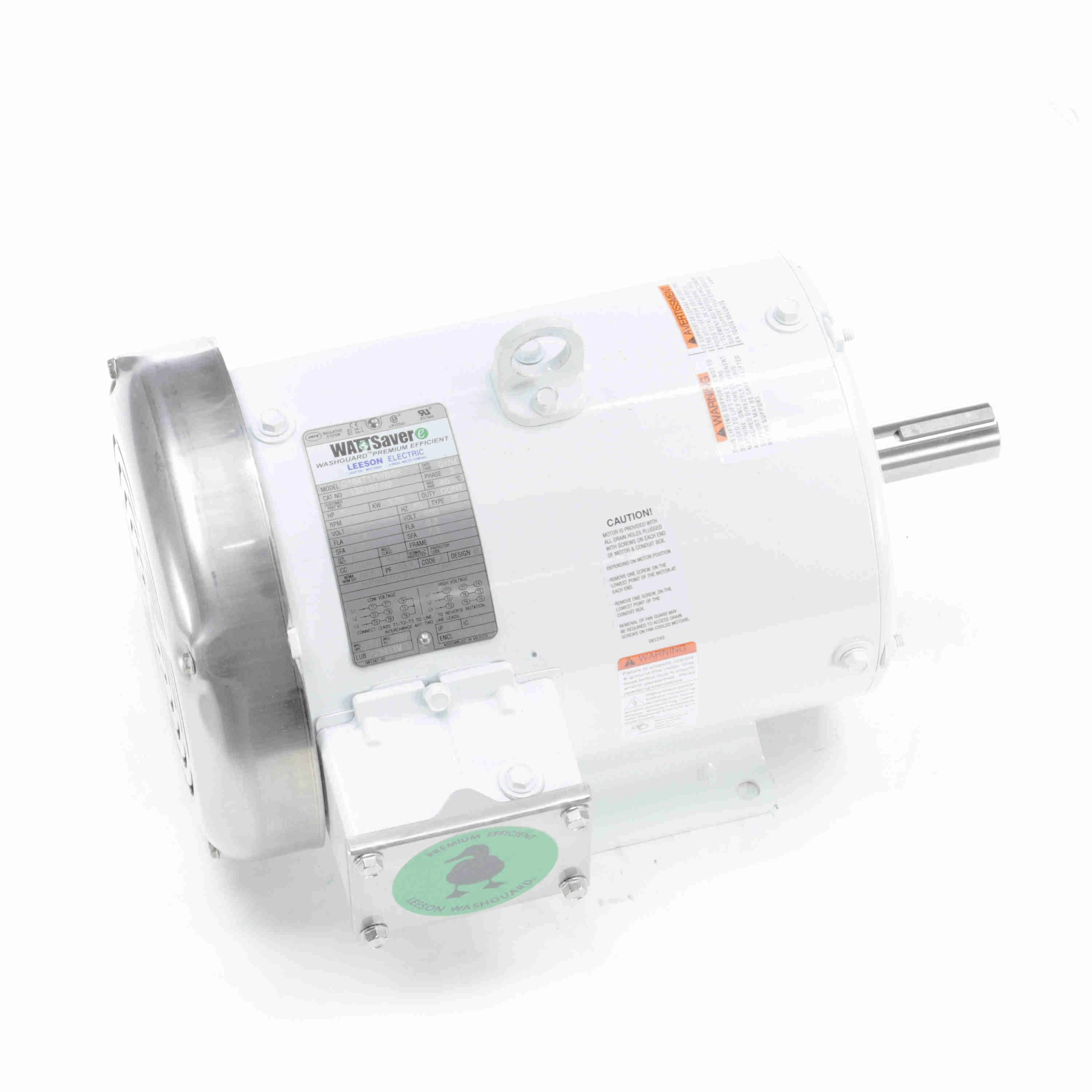

132197.00	230/460V	5 hp	1760 RPM	Epoxy Coated	184T	12.6/6.3A	1.15	1 1/8"	€2,318.42
