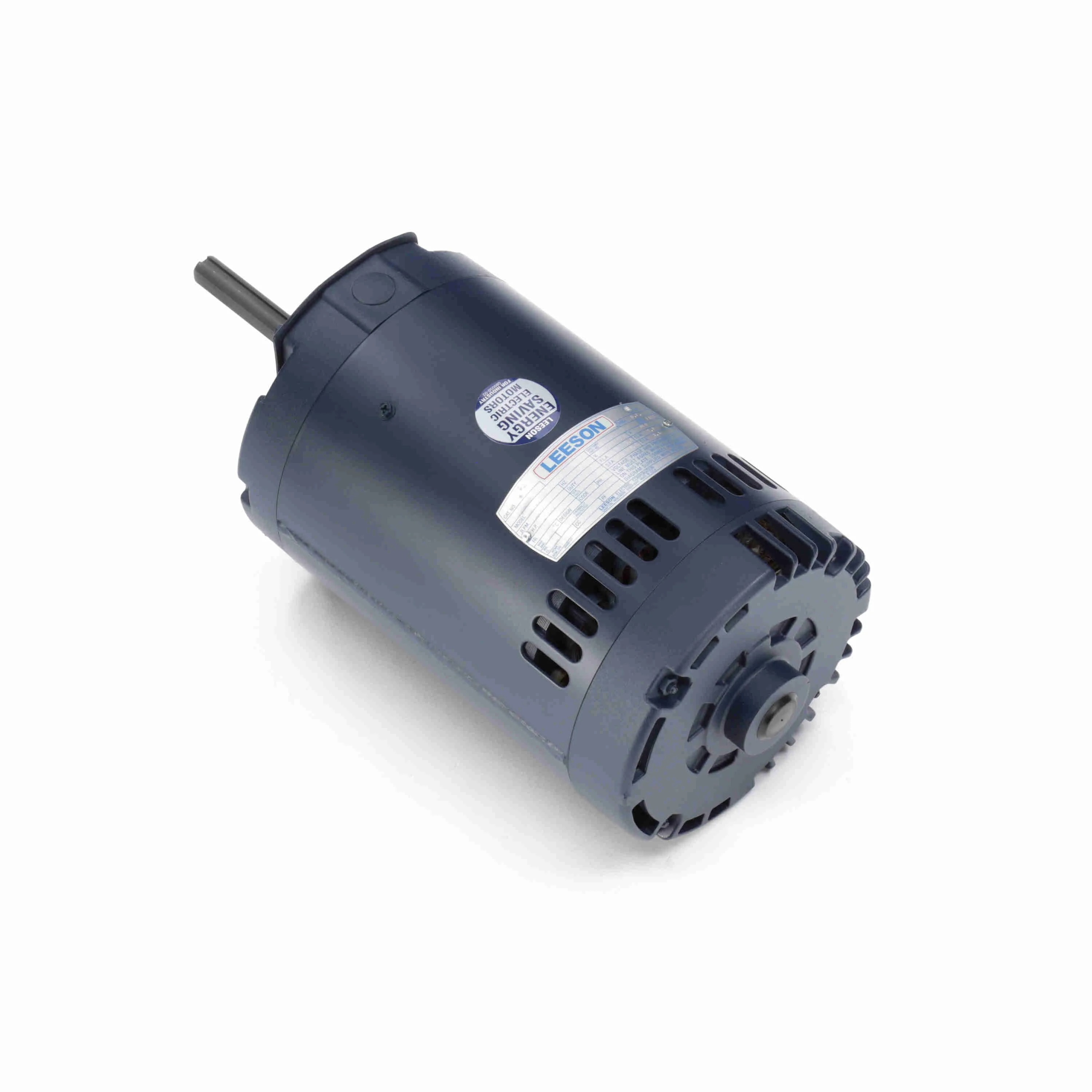

LEESON 111148.00 A6T11DZ2E Condenser Fan Motor, 1.50 HP, 3 Ph, 60 Hz, 230/460V, 1200 RPM
Get it by Tuesday, May 19
€917.79 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HVAC Motor |
| Ambient Temp. | 40°C |
| Amps | 5.6/2.8A |
| Assembly | 42500 |
| Code | J |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 79% |
| Electrical Type | Squirrel Cage, Induction Run |
| Enclosure Type | Odpao |
| Frame | 56Y |
| Frame Length | 7 1/2" |
| Frame Material | Rolled Steel |
| Frame Type | 56Y |
| Frequency | 60 Hz |
| Full Load Amps | 5.7-5.6/2.8A |
| Height | 10 22/25" |
| Hp | 1 1/2 hp |
| Insulation Class | Class B |
| Ip Code | IP22 |
| Kva Code | J |
| Kw | 1.1 kW |
| Length | 19 1/2" |
| Max. Rpm | 1140 RPM |
| Motor Mounting Type | Belly Band |
| Motor Orientation | Shaft Up |
| Motor Shaft Rotation | Reversible |
| Motor Type | TD |
| Mounting Type | Round Belly Band |
| No. Of Poles | 6 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Packaging | B |
| Phase | 3 |
| Power | 1.12 kW |
| Power Factor | 68 |
| Product Datasheet | leeson-111148-00.pdf |
| Rpm | 1100-1200 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 3 3/4" |
| Shaft Type | Single Special Extension |
| Starting Method | Across The Line |
| Thermal Protection | Automatic |
| Voltage | 208-230/460V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 20.25 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
Leeson 111148.00 general-purpose motor is ideal for heating and cooling HVAC equipment, food & beverage coolers, and vending machines.
Features:
- This motor features rolled steel construction with epoxy finish for structural rigidity and corrosion resistance on exposed surfaces.
- It has a drip-proof enclosure to protect the motor windings from overheating.
- This general-purpose motor has an auxiliary switch for two-speed operation.
- Leeson 111148.00 general-purpose motor comes with an automatic reset protector to ensure overload protection.
- It is equipped with double sealed ball bearings for low rotational friction while running at a maximum speed of 11400 rpm.
- This motor has an enclosed shaft end shield that protects the shaft from contaminants.
Standards and Approvals:
- UL
- CSA
Frequently Asked Questions:
Q. What is the advantage of Polyrex EM grease used in Leeson 111148.00 general-purpose motor?
A. This grease provides lubrication of ball bearings at high temperatures (-20 to 300 degrees F).
Q. What is the efficiency of Leeson 111148.00 general-purpose motor?
A. This motor delivers an efficiency of 79% under full load conditions.
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Motor Enclosure Design | Motor Mounting Type | Frame | Max. Ambient Temp. | Motor Thermal Protection | Nameplate Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056T11O5303 | 200-230/460V AC | 1 1/2 hp | Open Air Over | Band, Stud | 56Y | 70°C | Auto | 1140 RPM | €599.97 | |
 |
056T11O5302 | 200-230/460V | 1 hp | Open Air Over | Band, Stud | 56Y | 70°C | Automatic | 1140 RPM | €688.79 | |
 |
056T8O5307 | 208-230/460V AC | 1 1/2 hp | Open Air Over | Band, Stud | 56Y | 70°C | Automatic | 850 RPM | €1,192.71 | |
 |
056T11O5304 | 200-230/460V AC | 2 hp | Open Air Over | Band, Stud | 56Y | 70°C | Automatic | 1140 RPM | €1,064.83 | |
 |
5K49RN6429S | 575V AC | 1 hp | Dripproof | C Face Footless | 56Z | 65°C | Automatic | 1140 RPM | €745.76 | |
 |
056T8O5302 | 200-230/460V AC | 1 hp | Open Air Over | Band, Stud | - | 70°C | Auto | - | €1,100.24 | |
 |
056T11O5300 | 200-230/460V AC | 1/2 hp | - | - | - | - | - | - | €767.00 |
