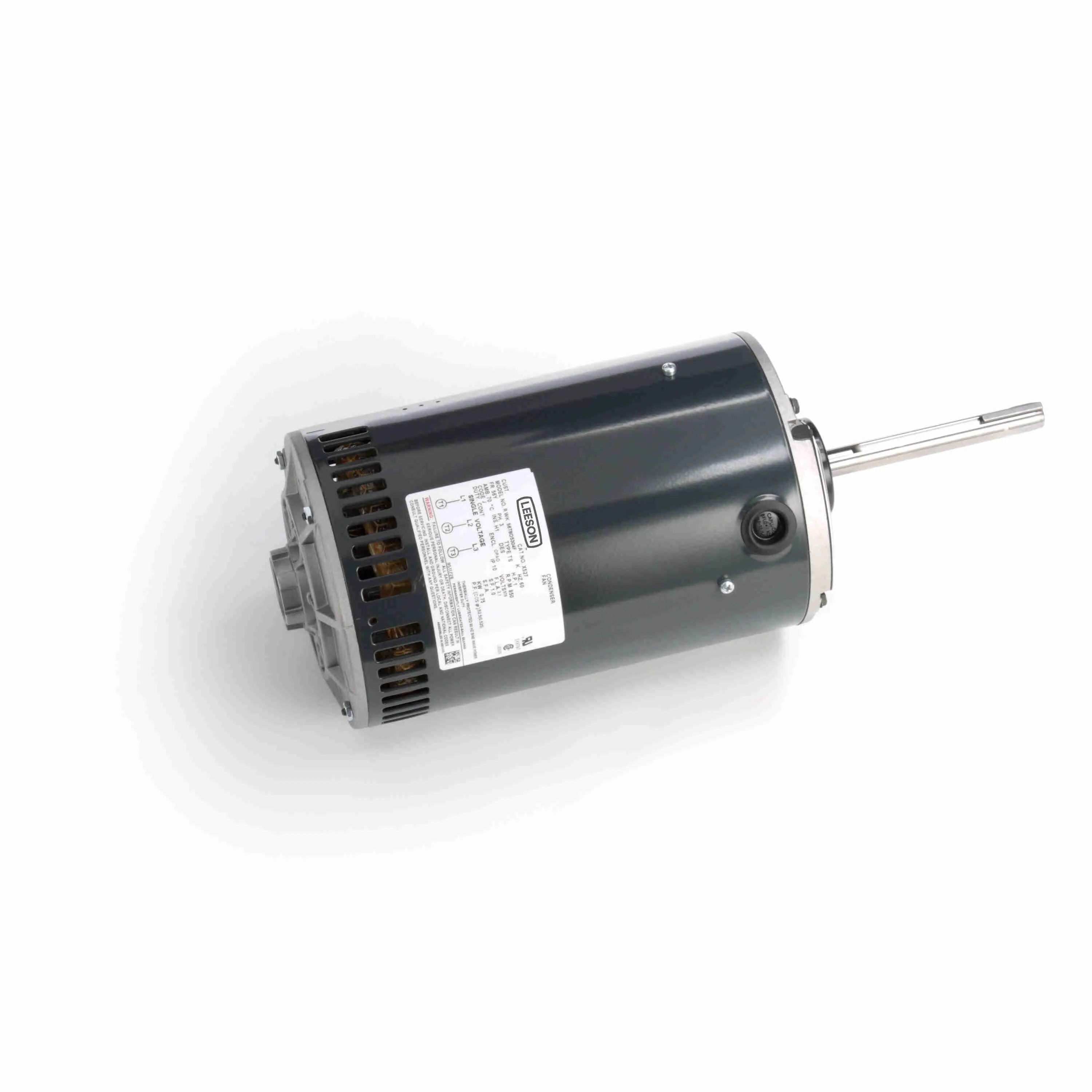

LEESON 056T8O5304 X527 / 56T8O5304F Condenser Fan Motor, 1 HP, 3 Phase, 60 Hz, 575V, 900 RPM
Get it by Wednesday, Dec 17
10.00% off
€1,552.16 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HVAC Motor |
| Ambient (c) | 70°C |
| Ambient Temp. | 70°C |
| Assembly | F1 Only |
| Bearing Type | Ball |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency | 74.5% |
| Enclosure Type | Open Air Over |
| Frame | 56Y |
| Frequency | 60 Hz |
| Full Load Amps | 2.1A |
| Full Load Efficiency | 74.5% |
| Hp | 1 hp |
| Insulation Class | Class H |
| Max. Ambient Temp. | 70°C |
| Motor Enclosure Design | Open Air Over |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Belly Band |
| Motor Thermal Protection | Automatic |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Belly Band Footless |
| Nameplate Rpm | 900 RPM |
| Nema Design | No Design Code |
| Number Of Speeds | 1 |
| Phase | 3 |
| Power | 0.75 kW |
| Rpm | 900 RPM |
| Service Factor | 1 |
| Shaft Orientation | Horizontal |
| Thermal Protection | Automatic |
| Voltage | 575V AC |
Shipping Info:
| Ship weight (kg) | 20.25 |
| Ship height (cm) | 20.62 |
| Ship length (cm) | 50.5 |
| Ship width (cm) | 26.04 |
| HS code | 8501516040 |
| Country of Origin | MX |
Product Details:
- Starting Type: ACROSS THE LINE
- KVA Code: J
- Drive End Bearing: BALL
- IP Code: 10
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
Product Variants
| Product | Model | Voltage | Hp | Motor Enclosure Design | Motor Mounting Type | Max. Ambient Temp. | Frame | Motor Thermal Protection | Nameplate Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

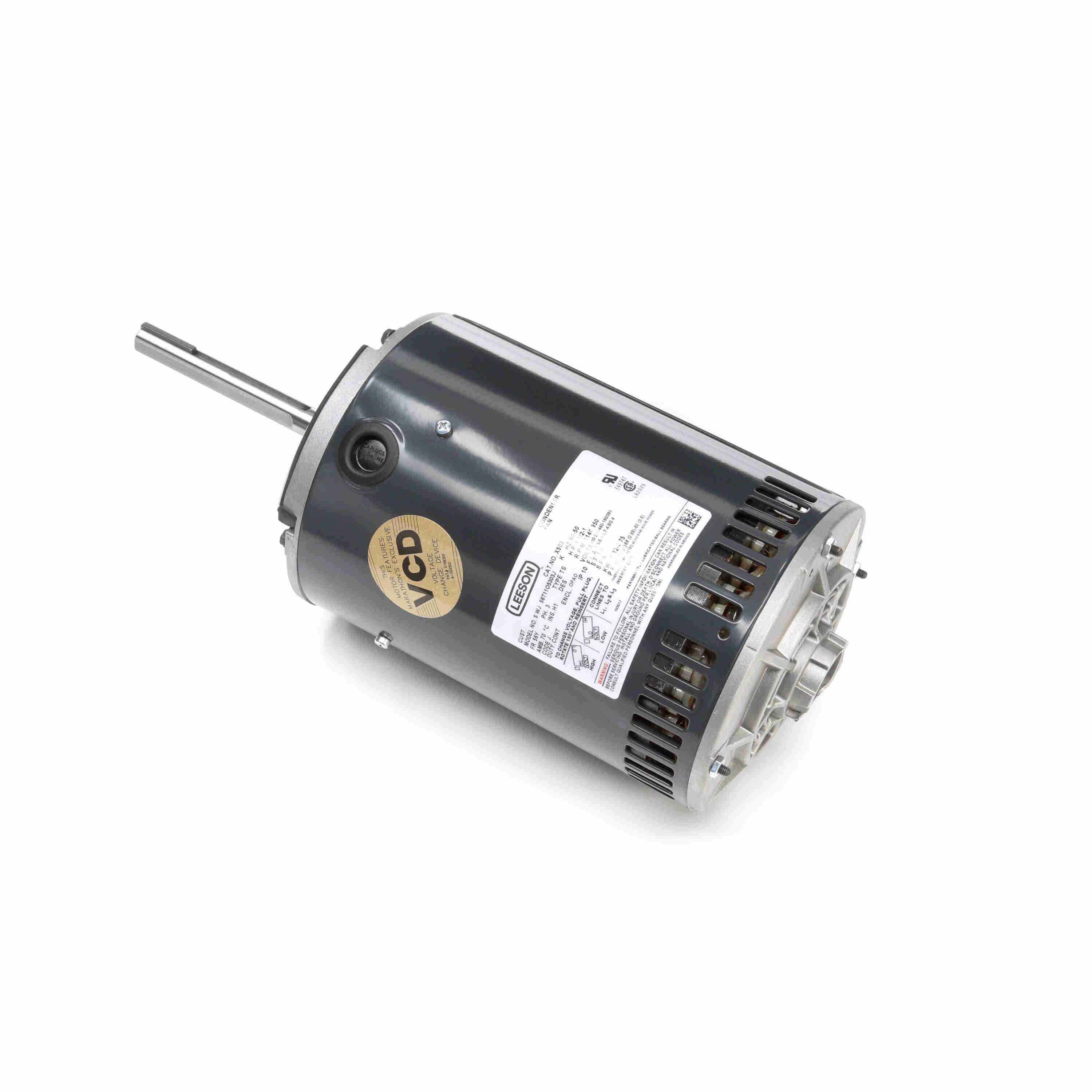

056T11O5303 | 200-230/460V AC | 1 1/2 hp | Open Air Over | Band, Stud | 70°C | 56Y | Auto | 1140 RPM | €599.97 | |
 |

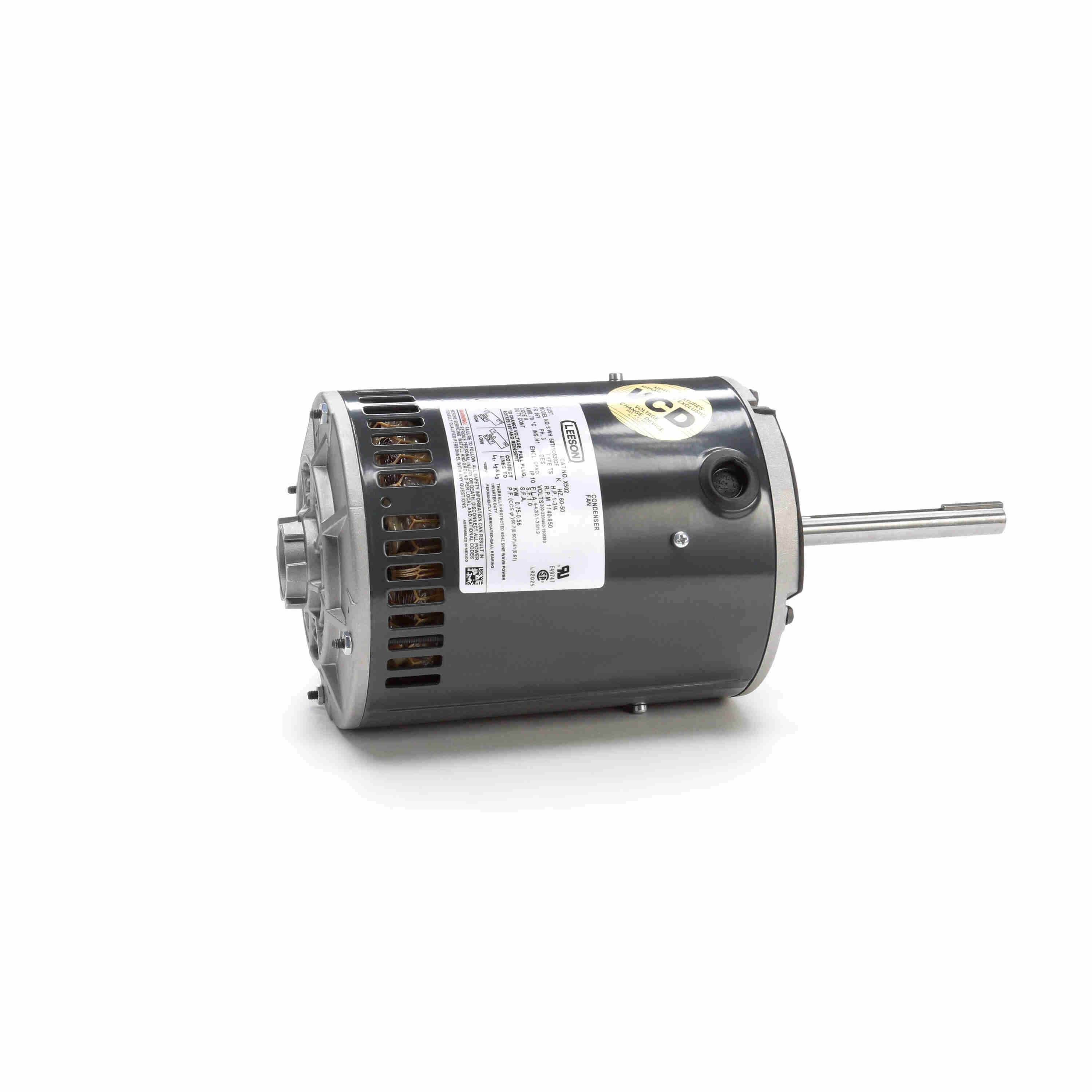

056T11O5302 | 200-230/460V | 1 hp | Open Air Over | Band, Stud | 70°C | 56Y | Automatic | 1140 RPM | €688.79 | |
 |

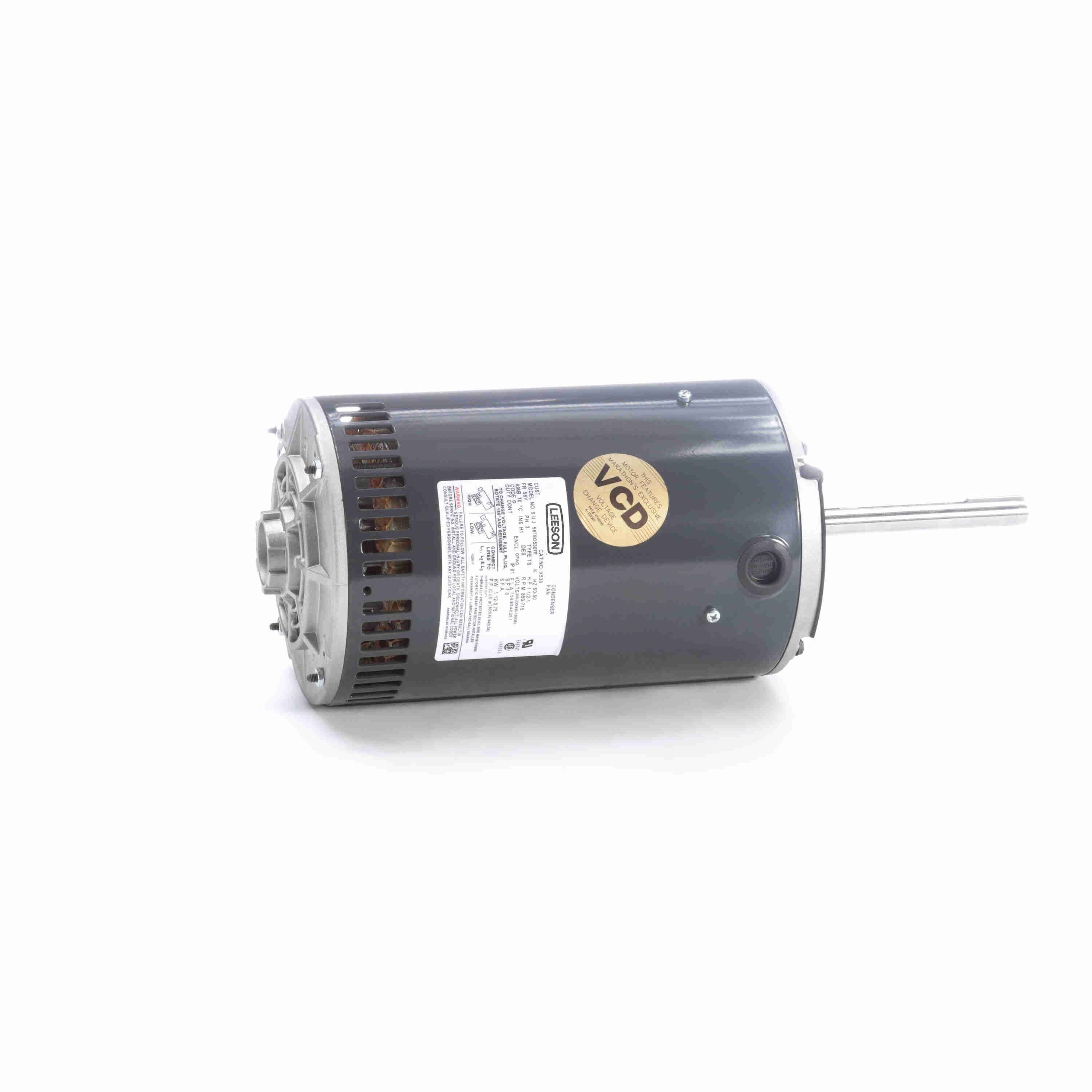

056T8O5307 | 208-230/460V AC | 1 1/2 hp | Open Air Over | Band, Stud | 70°C | 56Y | Automatic | 850 RPM | €1,192.71 | |
 |

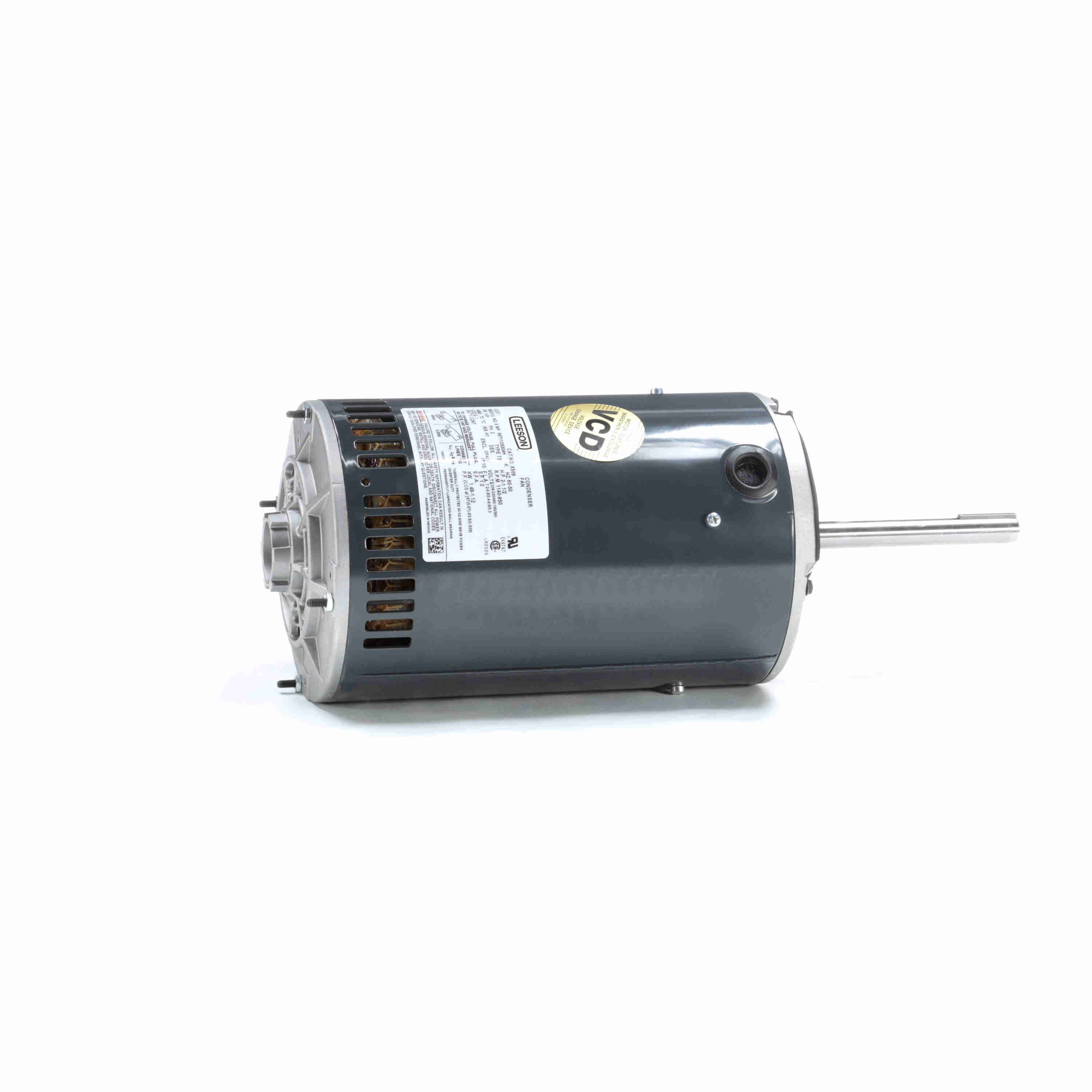

056T11O5304 | 200-230/460V AC | 2 hp | Open Air Over | Band, Stud | 70°C | 56Y | Automatic | 1140 RPM | €1,064.83 | |
 |

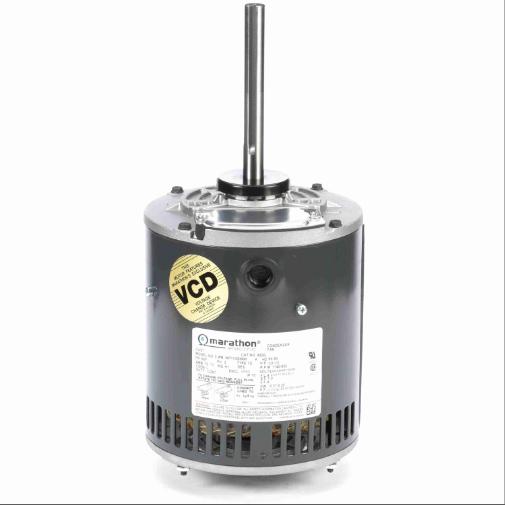

5K49RN6429S | 575V AC | 1 hp | Dripproof | C Face Footless | 65°C | 56Z | Automatic | 1140 RPM | €745.76 | |
 |

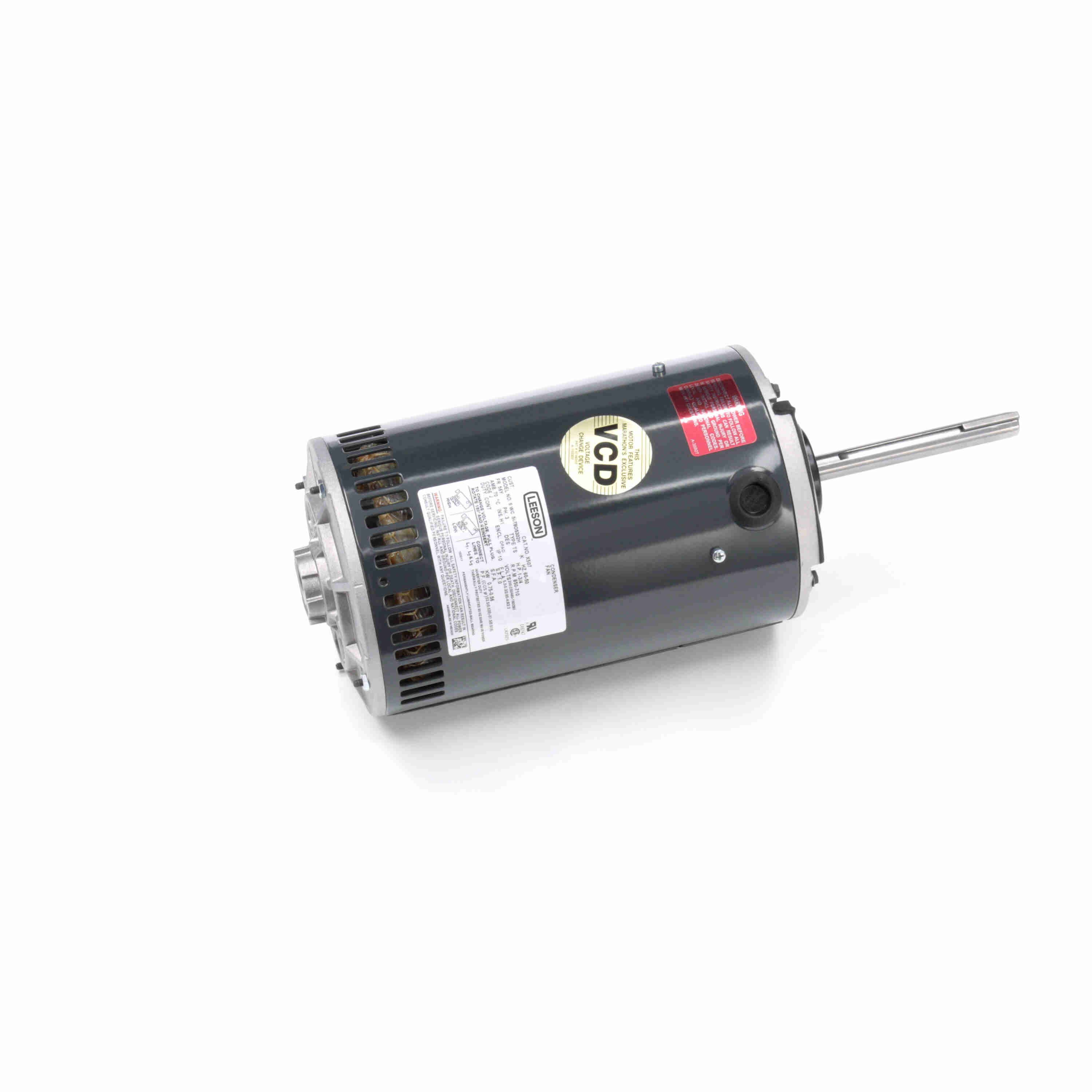

056T8O5302 | 200-230/460V AC | 1 hp | Open Air Over | Band, Stud | 70°C | - | Auto | - | €1,100.24 | |
 |

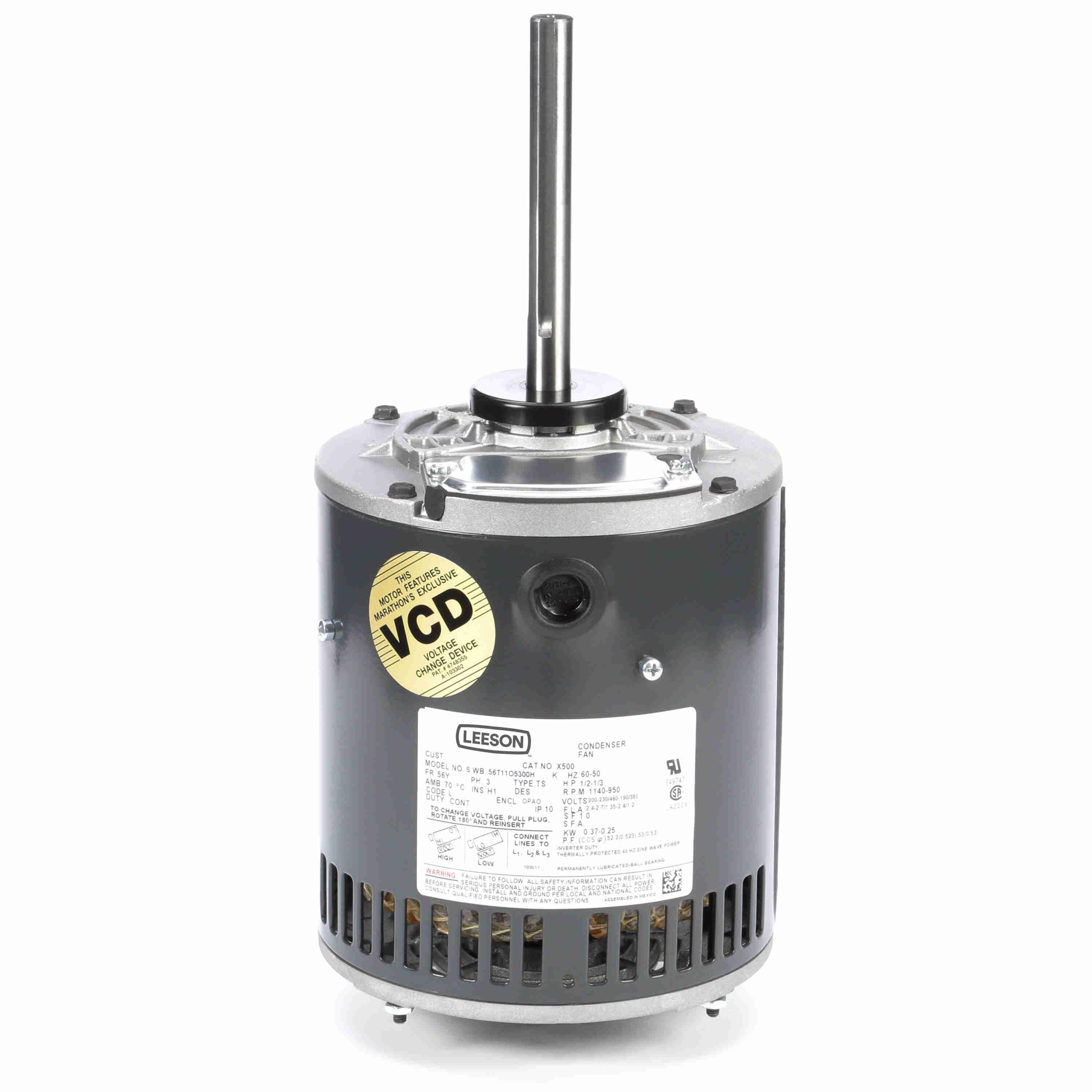

056T11O5300 | 200-230/460V AC | 1/2 hp | - | - | - | - | - | - | €767.00 |
