LEESON 110492.00 M6C17FC12J Agricultural Motor, 0.50 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM
Get it by Wednesday, Dec 24
10.00% off
€818.46 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Farm Duty Motor |
| Amps | 8.8/4.4A |
| Application | Farm Duty |
| Assembly | 042504 |
| Bearing Type | Ball |
| Capacitor Required | Yes |
| Code | L |
| Conduit Box Position | F1 |
| Design Code | No |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 66% |
| Electrical Type | Capacitor Start, Induction Run |
| Enclosure Type | Tefc |
| Finish | Enamel |
| Frame | 56C |
| Frame Length | 5 1/2" |
| Frame Material | Rolled Steel |
| Frame Type | 56C |
| Frequency | 60 Hz |
| Full Load Amps | 8.8/4.4A |
| Height | 10 22/25" |
| Hp | 1/2 hp |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Insulation Class | Class B |
| Ip Code | IP43 |
| Kva Code | L |
| Kw | 0.37 kW |
| Length | 14 11/25" |
| Length Less Shaft | 9 1/8" |
| Lubrication | Polyrex EM |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 40°C |
| Max. Rpm | 1725 RPM |
| Motor Application | Farm Duty |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face |
| Motor Orientation | Horizontal |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | High Torque |
| Motor Thermal Protection | Manual |
| Motor Type | Capacitor Start |
| Mounting Type | Round |
| Nameplate Rpm | 1725 RPM |
| Nema Design | N |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 66% |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Power | 0.37 kW |
| Overall Length | 11" |
| Packaging | B |
| Phase | 1 |
| Power | 0.37 kW |
| Power Factor | 58 |
| Resistance Main | 3.4 ohms |
| Rpm | 1700-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Starting Method | Across The Line |
| Thermal Protection | Manual |
| Type | CF |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V |
| Weight | 24 lbs. |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 10.8 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Eff 100%: 66
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6203
- Nameplate: 993500
- Winding: C634257
- GROUP: 3
- Paint: RED (ENAMEL)
- S. F Amps: 9.4 / 4.7
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Frame | Insulation Class | Service Factor | Mounting Type | Motor Shaft Rotation | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

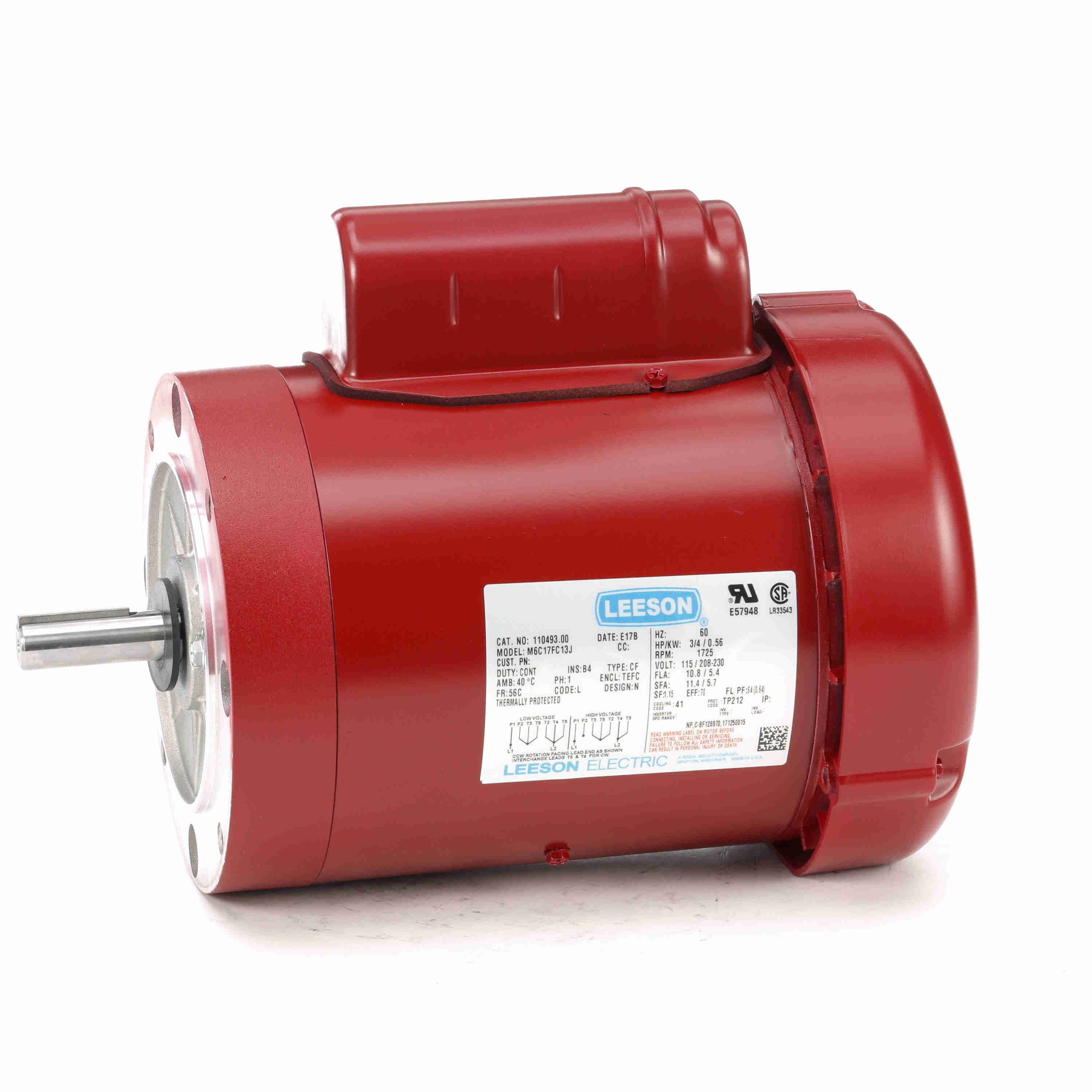

110493.00 | 115/208-230V | 3/4 hp | 1725 RPM | 56C | Class B | 1.15 | Round | CW/CCW | €509.92 | |
 |

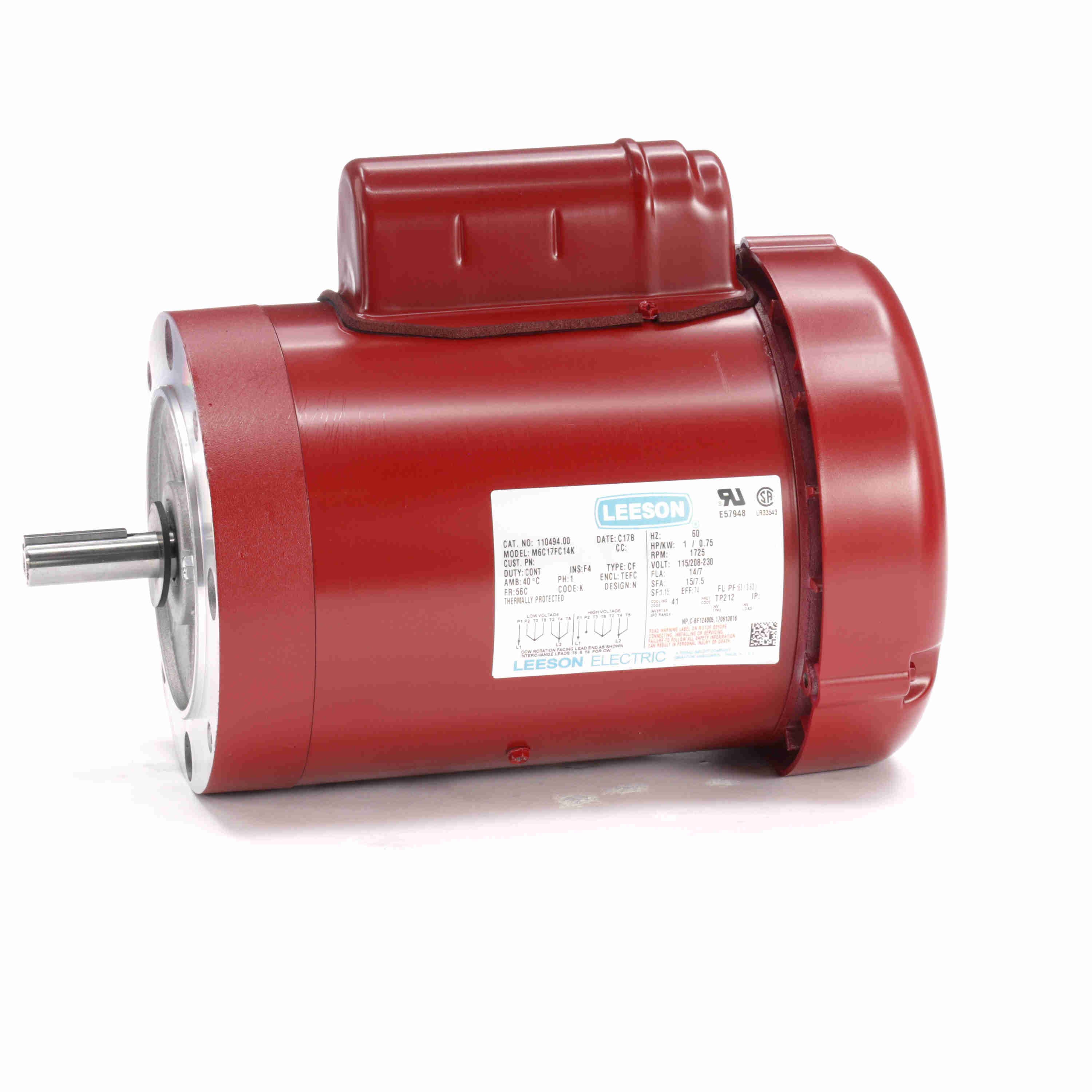

110494.00 | 115/208-230V | 1 hp | 1725 RPM | 56C | Class F | 1 | Round | CW/CCW | €1,024.72 | |
 |

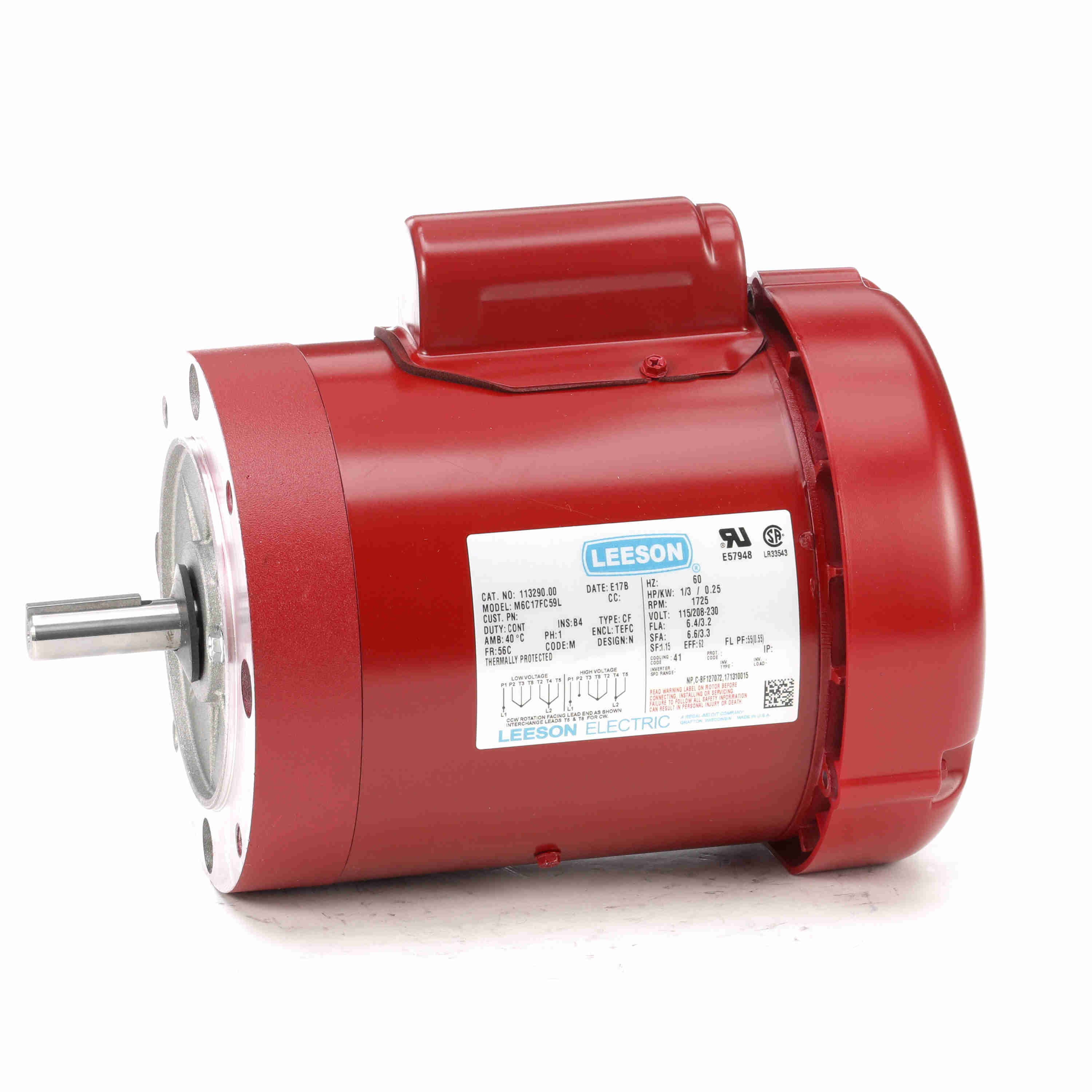

113290.00 | 115/208-230V | 33/100 hp | 1725 RPM | 56C | Class B | 1.15 | Round | CW/CCW | €733.51 | |
 |

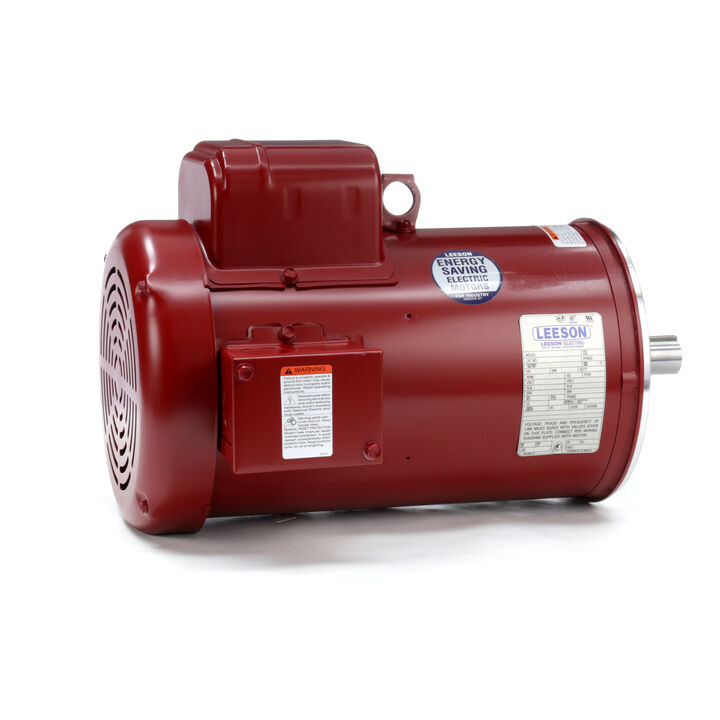

131602.00 | 230V | 5 hp | 1800 RPM | 184TC | Class F | 1.15 | C Face, Footless | Selective Counter Clockwise | €1,674.53 | |
 |

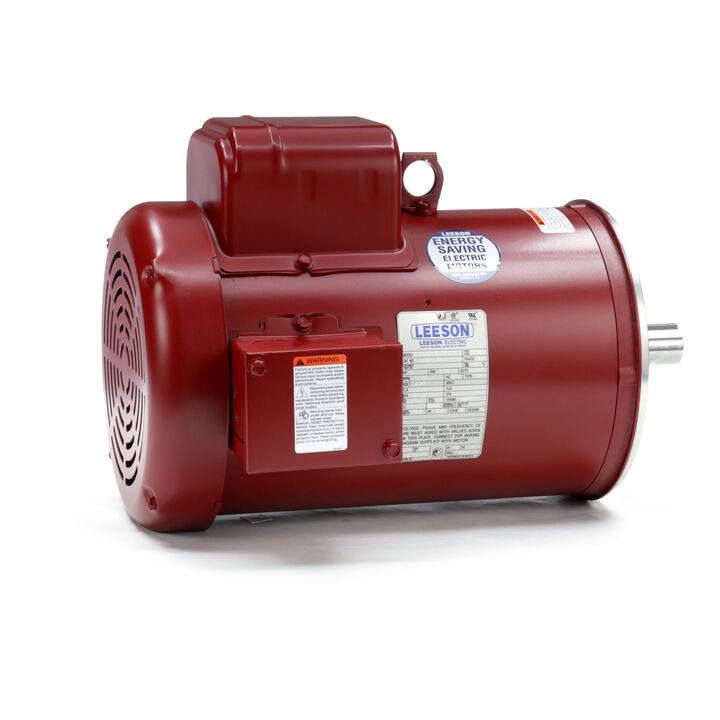

131603.00 | 230V | 3 hp | 1800 RPM | 184TC | Class F | 1.15 | C Face, Footless | Selective Counter Clockwise | €1,365.68 |
