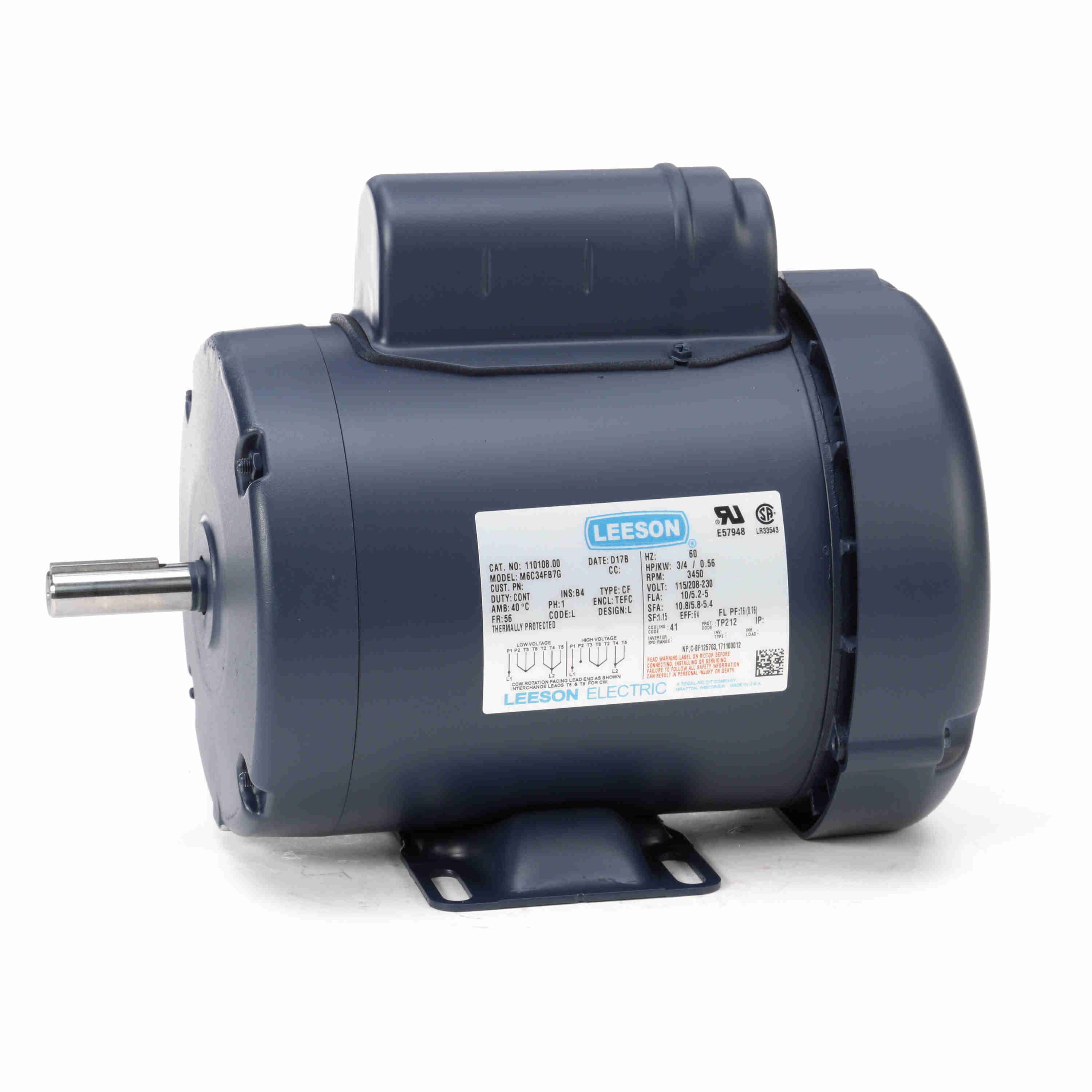

LEESON 110108.00 M6C34FB7G General Purpose Motor, 0.75 HP, 1 Phase, 60 Hz, 115/230V, 3600 RPM
Get it by Tuesday, Dec 23
10.00% off
€686.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Totally Enclosed Motor |
| Ambient Temp. | 104°F |
| Amps | 10/5A |
| Bearing Protection | Double Shield |
| Bearing Type | Ball |
| Code | L |
| Design Code | L |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 64% |
| Electrical Type | Capacitor Start, Induction Run |
| Enclosure Type | Tefc |
| Frame | 56 |
| Frame Length | 6" |
| Frame Material | Rolled Steel |
| Frame Type | 56 |
| Frequency | 60 Hz |
| Full Load Amps | 10/5.2-5A |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 3/4 hp |
| Hz | 60 Hz |
| Includes | Key |
| Ins. Class | Class B |
| Insulation Class | Class B |
| Inverter Rated | No |
| Ip Code | IP43 |
| Kva Code | L |
| Kw | 0.56 kW |
| Length | 14 11/25" |
| Length Less Shaft | 9 9/16" |
| Lubrication | Polyrex EM |
| Manufacturers Warranty Length | 18 Months |
| Max. Ambient Temp. | 104°F |
| Max. Rpm | 3450 RPM |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Rolled Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Orientation | Horizontal |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Manual |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3450 RPM |
| Nema Design | L |
| No. Of Phase | 1 |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Nominal Efficiency | 64% |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 0.56 kW |
| Overall Length | 11 1/2" |
| Packaging | B |
| Part Winding Start Capable | No |
| Power Factor | 76 |
| Removable Base | Permanently Lubricated Bearings |
| Resistance Main | 2.4 ohms |
| Rpm | 3400-3600 RPM |
| Rpm Range | 3001-3600 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 22/25" |
| Shaft Type | NEMA 56 |
| Standards | Csa, Ul |
| Starting Method | Across The Line |
| Thermal Protection | Manual |
| Type | CF |
| Usable @ 200v | Yes |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V |
| Warranty | 1.5 yrs. |
| Weight | 29 lbs. |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 13.05 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Eff 100%: 64
- Bearing OPE: 6203
- CC Number: EXEMPT
- Bearing PE: 6203
- Nameplate: 993500.01
- Winding: C632210
- GROUP: 3
- Paint: BLUE - LEESON (ENAMEL)
- S. F Amps: 10.8 / 5.8-5.4
Product Variants
| Product | Model | Voltage | Nameplate Rpm | Hp | Full Load Amps | Mounting Type | Motor Type | Service Factor | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
092116.00 | 115/208-230V | 1800 RPM | 17/100 hp | 4.2/2.1A | Rigid Base | Capacitor Start | 1.15 | 42 | €461.70 | |
 |
100955.00 | 115/208-230V | 1800 RPM | 33/100 hp | 6.6/2.9-3.3A | Rigid Base | Capacitor Start | 1.15 | 48 | €422.66 | |
 |
102013.00 | 115/208-230V | 1200 RPM | 17/100 hp | 3.8/1.8-1.9A | Rigid Base | Capacitor Start | 1.15 | 48 | €550.91 | |
 |
102016.00 | 115/208-230V | 3600 RPM | 33/100 hp | 5.6/2.5-2.8A | Rigid Base | Capacitor Start | 1.15 | 48 | €571.76 | |
 |
102018.00 | 115/208-230V | 1800 RPM | 33/100 hp | 6.6/2.9-3.3A | Rigid Base | Capacitor Start | 1.15 | 48 | €485.11 | |
 |
102020.00 | 115/208-230V | 3600 RPM | 1/2 hp | 7/3.4-3.5A | Rigid Base | Capacitor Start | 1.15 | 48 | €415.41 | |
 |
110013.00 | 115/208-230V | 1725 RPM | 3/4 hp | 10.8/5.4A | Rigid Base | Capacitor Start/Run | 1.15 | 56 | €716.58 |
