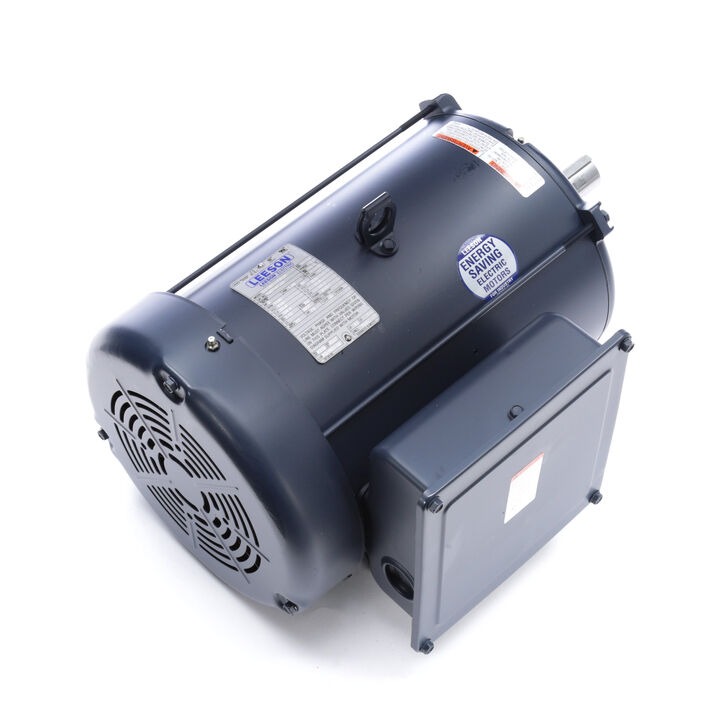

LEESON 140747.00 C215K11FB3A General Purpose Motor, 2 HP, 1 Phase, 60 Hz, 115/208-230V, 1200 RPM
Get it by Monday, Dec 22
€2,463.05 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Single Phase Motor |
| Ambient Temp. | 40°C |
| Code | J |
| Drive End Bearing Size | 6207 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 77% |
| Enclosure Type | Tefc |
| Frame | 215T |
| Frame Material | Rolled Steel |
| Frame Type | 215T |
| Frequency | 60 Hz |
| Full Load Amps | 22.4/11.6-11.2A |
| Grease Type | Polyrex EM |
| Hp | 2 hp |
| Insulation Class | Class F |
| Kw | 1.5 kW |
| Lubrication | Polyrex EM |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Capacitor Start/Run |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1200 RPM |
| Nema Design | J, L |
| No. Of Poles | 6 |
| Opp. Drive End Bearing Size | 6206 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 1.49 kW |
| Packaging | B |
| Phase | 1 |
| Power Factor | 75 |
| Rpm | 1100-1200 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1 3/8" |
| Shaft Length | 3.38" |
| Type | KF |
| Voltage | 115/208-230V |
Shipping Info:
| Ship weight (kg) | 53.1 |
| Ship height (cm) | 36.2 |
| Ship length (cm) | 57.48 |
| Ship width (cm) | 40.97 |
| Country of Origin | MX |
Product Details:
- Eff 100%: 77
- Bearing OPE: 6206
- CC Number: EXEMPT
- Bearing PE: 6207
- Nameplate: 081285
- Winding: K966
- GROUP: 3
- Paint: BLUE - LEESON (ENAMEL)
- S. F Amps: 24.4 / 12.2
Product Variants
| Product | Model | Voltage | Nameplate Rpm | Hp | Full Load Amps | Mounting Type | Motor Type | Service Factor | Frame | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
092116.00 | 115/208-230V | 1800 RPM | 17/100 hp | 4.2/2.1A | Rigid Base | Capacitor Start | 1.15 | 42 | €461.70 | |
 |
100955.00 | 115/208-230V | 1800 RPM | 33/100 hp | 6.6/2.9-3.3A | Rigid Base | Capacitor Start | 1.15 | 48 | €422.66 | |
 |
102013.00 | 115/208-230V | 1200 RPM | 17/100 hp | 3.8/1.8-1.9A | Rigid Base | Capacitor Start | 1.15 | 48 | €550.91 | |
 |
102016.00 | 115/208-230V | 3600 RPM | 33/100 hp | 5.6/2.5-2.8A | Rigid Base | Capacitor Start | 1.15 | 48 | €571.76 | |
 |
102018.00 | 115/208-230V | 1800 RPM | 33/100 hp | 6.6/2.9-3.3A | Rigid Base | Capacitor Start | 1.15 | 48 | €485.11 | |
 |
102020.00 | 115/208-230V | 3600 RPM | 1/2 hp | 7/3.4-3.5A | Rigid Base | Capacitor Start | 1.15 | 48 | €415.41 | |
 |
110013.00 | 115/208-230V | 1725 RPM | 3/4 hp | 10.8/5.4A | Rigid Base | Capacitor Start/Run | 1.15 | 56 | €716.58 |
