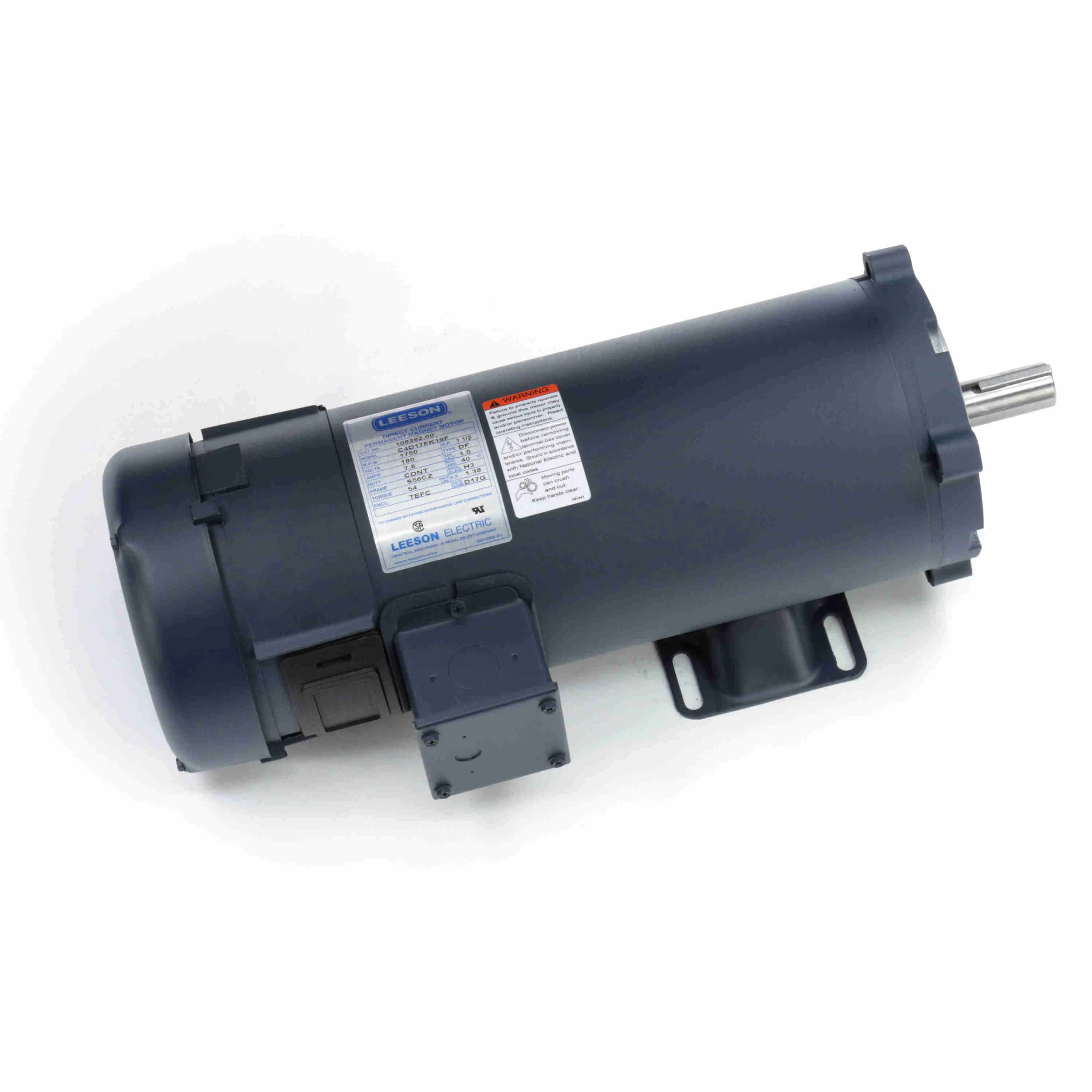

LEESON 108262.00 C4D17FK19F SCR Motor, 1.50 HP, 180V, 1750 RPM
Get it by Wednesday, Apr 1
5.00% off
€1,791.63 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | DC Motor |
| Amps | 7.6A |
| Bearing Type | Ball |
| Brush Type | External |
| Drive End Bearing Size | 6205 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 86.5% |
| Enclosure Type | Tefc |
| Form Factor | 1.38 |
| Frame | S56CZ |
| Frame Length | 9.97" |
| Frame Type | S56CZ |
| Full Load Amps | 7.6A |
| Full Load Torque | 54 in.-lbs. |
| Full Load Torque | 54 lbs.-in. |
| Grease Type | Polyrex EM |
| Height | 10 22/25" |
| Hp | 1 1/2 hp |
| Ins. Class | Class H |
| Insulation Class | Class H |
| Kw | 1.1 kW |
| Length | 19 1/2" |
| Length Less Shaft | 15 1/4" |
| Lubrication | Polyrex EM |
| Max. Ambient Temp. | 40°C |
| Max. Rpm | 1750 RPM |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Permanent Magnet DC |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Type | Face, Base |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Mounting Type | Face/Base |
| Nameplate Rpm | 1750 RPM |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 17 3/8" |
| Packaging | PG659401.04Z |
| Power | 1.1 kW |
| Product Datasheet | leeson-108262-00.pdf |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 7/8" |
| Shaft Length | 2.13" |
| Thermal Protection | No Protection |
| Type | DF |
| Voltage | 180V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 23.4 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Bearing OPE: 6203
- Bearing PE: 6205
- Eff 100%: 86.5%
- Nameplate: 081259
- Winding: D56275
- GROUP: 1 A
- Sub Group: A
- Paint: 305000.01
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Frame | Mounting Type | Thermal Protection | Motor Application | Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
108502.00 | 180V | 3 hp | 1750 RPM | 143/5TC | Face/Base | None | General Application | 7/8" | €4,633.64 |
