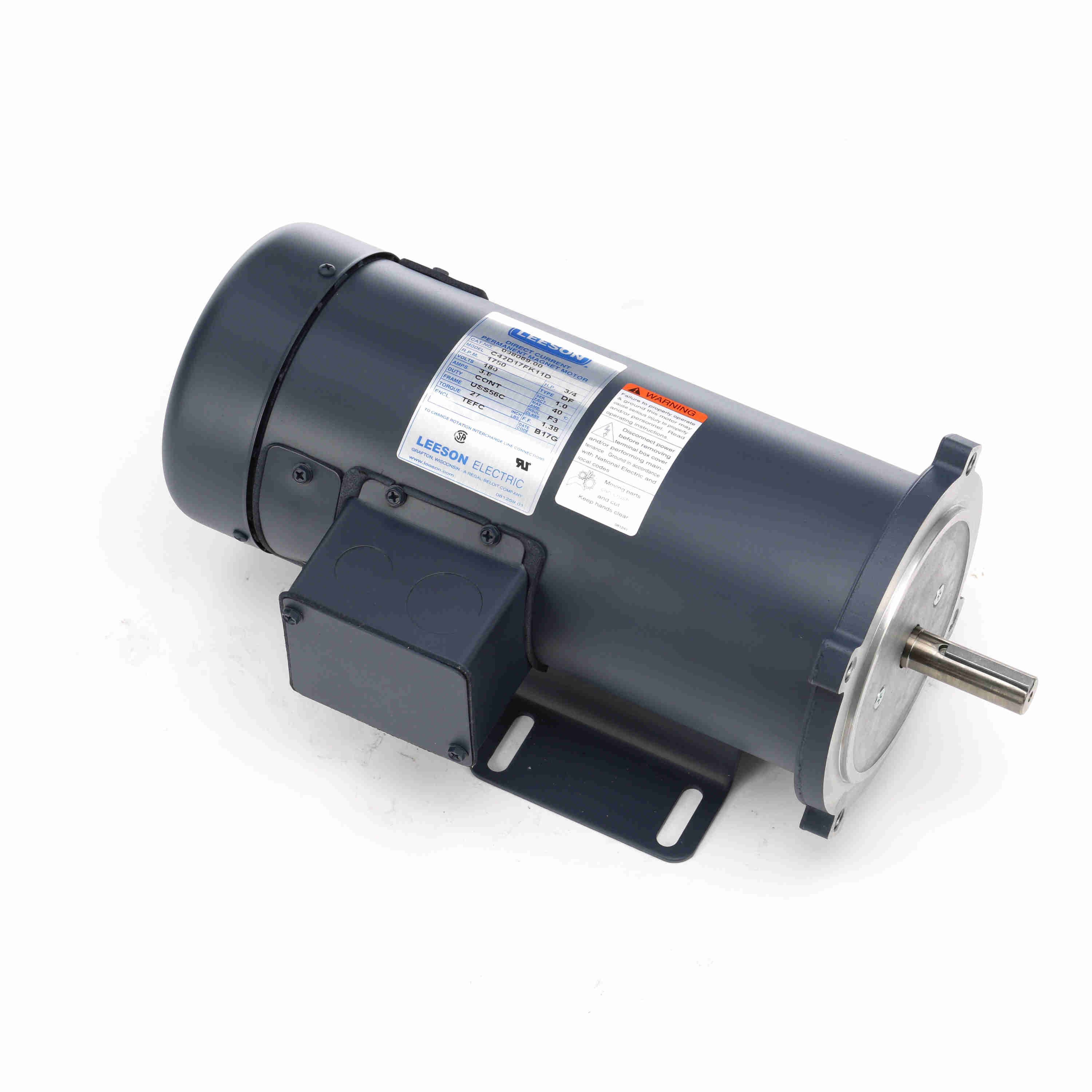

LEESON 098069.00 C42D17FK11D SCR Motor, 0.75 HP, 180V, 1750 RPM
Get it by Tuesday, Aug 18
5.00% off
€1,433.04 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | DC Motor |
| Amps | 3.8A |
| Bearing Type | Ball |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 82.1% |
| Enclosure Type | Tefc |
| Form Factor | 1.38 |
| Frame | 56C |
| Frame Length | 9 1/2" |
| Frame Type | SS56C |
| Full Load Amps | 3.8A |
| Full Load Torque | 27 in.-lbs. |
| Full Load Torque | 27 lbs.-in. |
| Height | 10 22/25" |
| Hp | 3/4 hp |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Kw | 0.56 kW |
| Length | 19 1/2" |
| Length Less Shaft | 11 7/8" |
| Max. Ambient Temp. | 40°C |
| Max. Speed | 1750 RPM |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Permanent Magnet DC |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Type | Face, Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW, CCW |
| Motor Thermal Protection | None |
| Mounting Type | Face, Base |
| Nameplate Speed | 1750 RPM |
| No. Of Studs | 4 |
| Opp Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 13 13/16" |
| Packaging | PG659401.04Z |
| Power | 0.56 kW |
| Product Datasheet | leeson-098069-00.pdf |
| Removable Base | Yes |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2.06" |
| Speed | 1700-1800 RPM |
| Stud Size | 3/8"-16 |
| Thermal Protection | No Protection |
| Type | DF |
| Voltage | 180V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 15.3 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 49.53 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Product Details:
- Eff 100%: 82.1%
- Nameplate: 081259
- Winding: D472294
- GROUP: 1 A
- Sub Group: A
- Paint: 305000.01
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Shaft Dia. | Amps | Mounting Type | Speed | Type | Nameplate Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
098000.00 | 90V | 1/2 hp | 5/8" | 5A | Face, Base | 1700-1800 RPM | DF | 1750 RPM | €1,074.14 | |
 |
098002.00 | 90V | 1/4 hp | 5/8" | 2.5A | Face, Base | 1700-1800 RPM | DF | 1750 RPM | €776.23 | |
 |
098003.00 | 180V | 1/4 hp | 5/8" | 1.4A | Rigid Base | 1700-1800 RPM | DF | 1750 RPM | €826.57 | |
 |
098004.00 | 90V | 33/100 hp | 5/8" | 3.5A | Face, Base | 1700-1800 RPM | DF | 1750 RPM | €909.70 | |
 |
098006.00 | 90V | 1/2 hp | 5/8" | 5A | Face, Base | 2500 RPM | SCR Motor | 2500 RPM | €1,041.94 | |
 |
098007.00 | 180V | 1/2 hp | 5/8" | 2.5A | Rigid Base | 2500 RPM | DF | 2500 RPM | €548.36 | |
 |
098008.00 | 180V | 1/2 hp | 5/8" | 2.5A | Face, Base | 1700-1800 RPM | DF | 1750 RPM | €1,058.89 |
