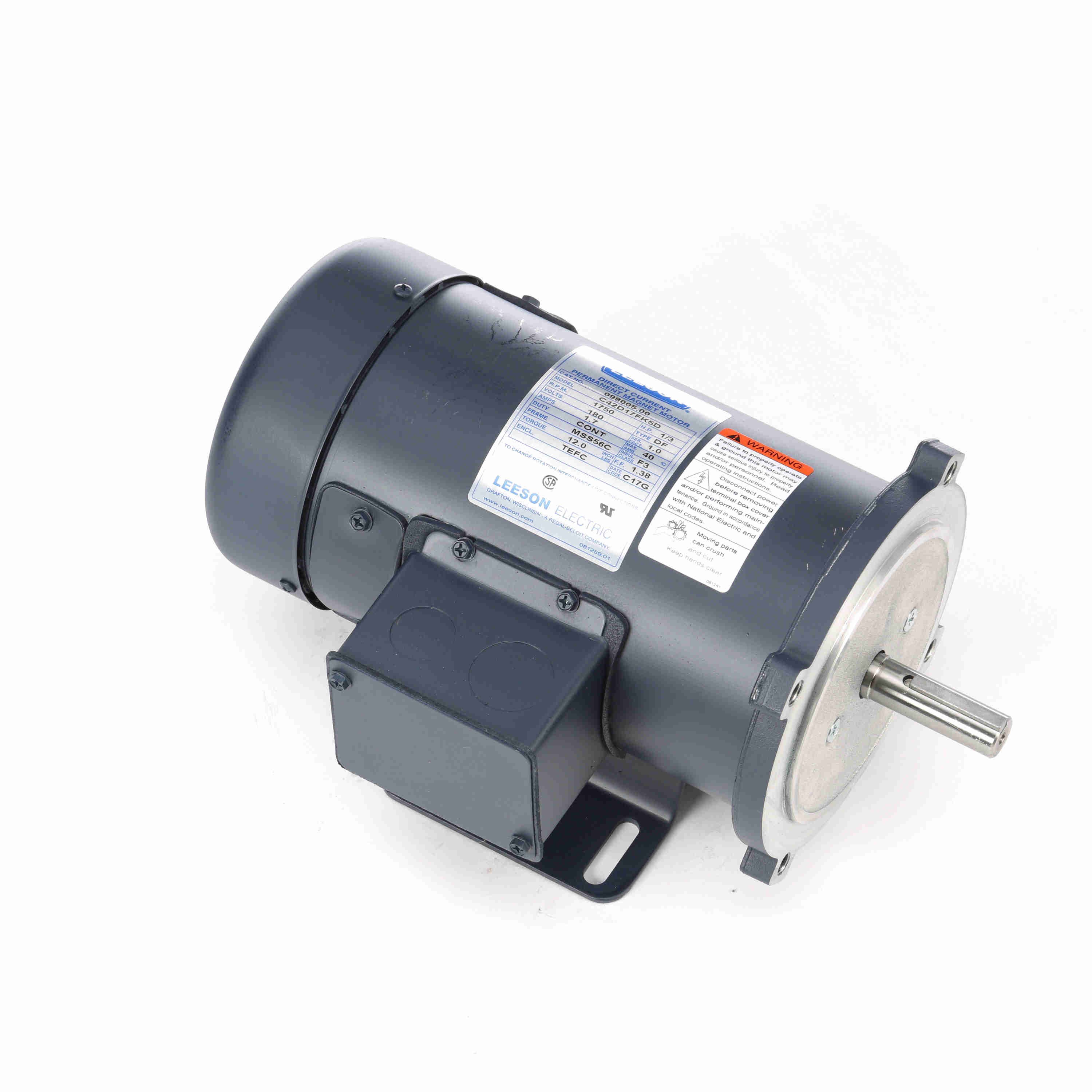

LEESON 098005.00 C42D17FK5D SCR Motor, 0.33 HP, 180V, 1750 RPM
Get it by Monday, Apr 6
€548.36 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | DC Motor |
| Amps | 1.7A |
| Bolt Circle Dia. | 5 7/8" |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 78.5% |
| Enclosure Type | Tefc |
| Frame | 56C |
| Frame Length | 7" |
| Frame Type | SS56C |
| Full Load Amps | 1.7A |
| Height | 10 22/25" |
| Hp | 33/100 hp |
| Includes | Brush Holder Design |
| Ins. Class | Class F |
| Insulation Class | Class F |
| Kw | 0.25 kW |
| Length | 14 11/25" |
| Length Less Shaft | 9 1/4" |
| Max. Ambient Temp. | 40°C |
| Max. Rpm | 1750 RPM |
| Motor Application | General Purpose |
| Motor Design | Permanent Magnet DC |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Face, Base |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | Clockwise/Counter Clockwise |
| Motor Shaft Rotation | CW/CCW |
| Motor Type | Permanent Magnet DC |
| Mounting Type | Face/Base |
| Nameplate Rpm | 1750 RPM |
| Nominal Efficiency | 78.5% |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Overall Length | 11 5/16" |
| Power | 0.25 kW |
| Product Datasheet | leeson-098005-00.pdf |
| Removable Base | No |
| Rpm | 1700-1800 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2.06" |
| Standards | Csa Listed, Nema Mg1, Ul Listed |
| Stud Size | Not Found |
| Thermal Protection | No Protection |
| Voltage | 180V |
| Width | 10 11/25" |
Shipping Info:
| Ship weight (kg) | 11.7 |
| Ship height (cm) | 27.64 |
| Ship length (cm) | 36.68 |
| Ship width (cm) | 26.52 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Voltage | Hp | Nameplate Rpm | Frame | Mounting Type | Thermal Protection | Motor Application | Shaft Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
108502.00 | 180V | 3 hp | 1750 RPM | 143/5TC | Face/Base | None | General Application | 7/8" | €4,633.64 |
