LEESON 102016.00 C4C34FB10C General Purpose Motor, 0.33 HP, 1 Phase, 60 Hz, 115/230V, 3600 RPM
Get it by Wednesday, Apr 1
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€543.17 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Single Phase Motor |
| Ambient Temp. | 40°C |
| Amps | 5.6/2.8A |
| Code | M |
| Design Code | No |
| Drive End Bearing Size | 6203 |
| Drive End Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 63% |
| Electrical Type | Capacitor Start, Induction Run |
| Enclosure Type | Tefc |
| Frame | 48 |
| Frame Length | 4 3/4" |
| Frame Material | Rolled Steel |
| Frame Type | 48 |
| Frequency | 60 Hz |
| Full Load Amps | 5.6/2.5-2.8A |
| Height | 8 3/4" |
| Hp | 33/100 hp |
| Insulation Class | Class B |
| Ip Code | IP43 |
| Kva Code | M |
| Kw | 0.25 kW |
| Length | 13 3/4" |
| Max. Rpm | 3450 RPM |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Orientation | Horizontal |
| Motor Shaft Rotation | Selective Counter Clockwise |
| Motor Type | Capacitor Start |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 3600 RPM |
| Nema Design | M, N |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Opp. Drive End Bearing Size | 6203 |
| Opp. Drive End Bearing Type | Ball |
| Output Kw | 0.25 kW |
| Packaging | B |
| Phase | 1 |
| Power Factor | 59 |
| Product Datasheet | leeson-102016-00.pdf |
| Resistance Main | 5.416 ohms |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 1/2" |
| Shaft Type | NEMA 48 |
| Starting Method | Across The Line |
| Thermal Protection | No Protection |
| Type | CF |
| Voltage | 115/208-230V |
| Width | 7 22/25" |
Shipping Info:
| Ship weight (kg) | 7.2 |
| Ship height (cm) | 22.23 |
| Ship length (cm) | 34.93 |
| Ship width (cm) | 20.02 |
| Country of Origin | MX |
Product Details:
- Eff 100%: 63
- Bearing OPE: 6203
- Bearing PE: 6203
- Nameplate: A-92005-12
- Winding: CE482236
- GROUP: 3
- Paint: BLUE - LEESON (ENAMEL)
- S. F Amps: 5.8 / 2.6-2.9
Documentation:
Product Variants
| Product | Model | Voltage | Nameplate Rpm | Hp | Full Load Amps | Motor Type | Service Factor | Frame | Ambient Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

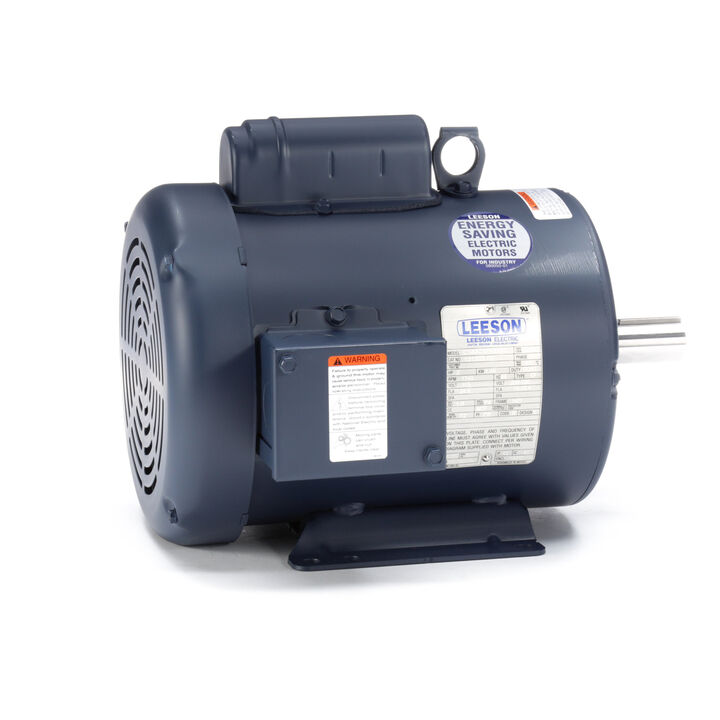

131509.00 | 115/208-230V | 1800 RPM | 2 hp | 24.8/13-12.4A | Squirrel Cage Induction Run | 1 | 182T | 40°C | €956.75 | |
 |
131526.00 | 115/208-230V | 1200 RPM | 1 1/2 hp | 11/12A | Squirrel Cage Induction Run | 1 | 184T | 40°C | €1,661.59 | |
 |

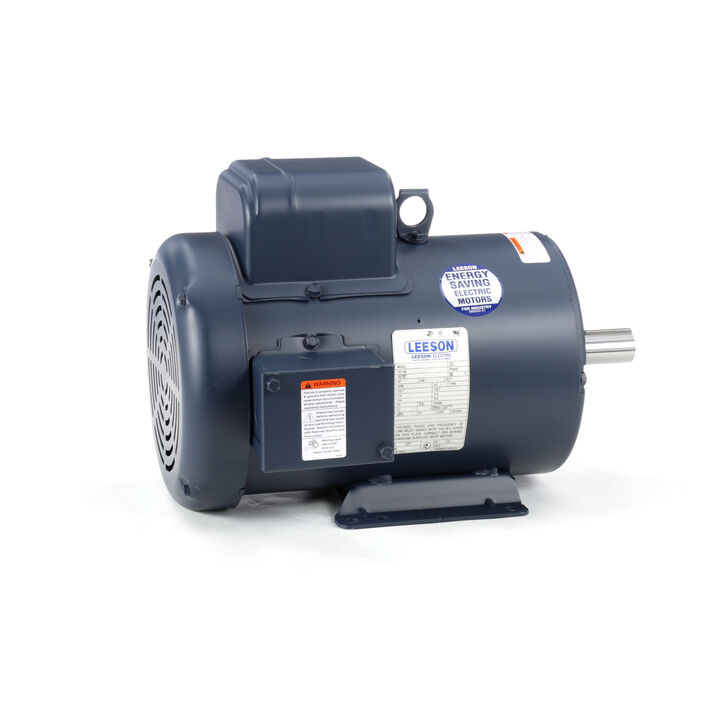

131533.00 | 115/208-230V | 1800 RPM | 3 hp | 33.6/18-16.8A | Capacitor Start | 1 | 184T | 40°C | €1,074.25 | |
 |

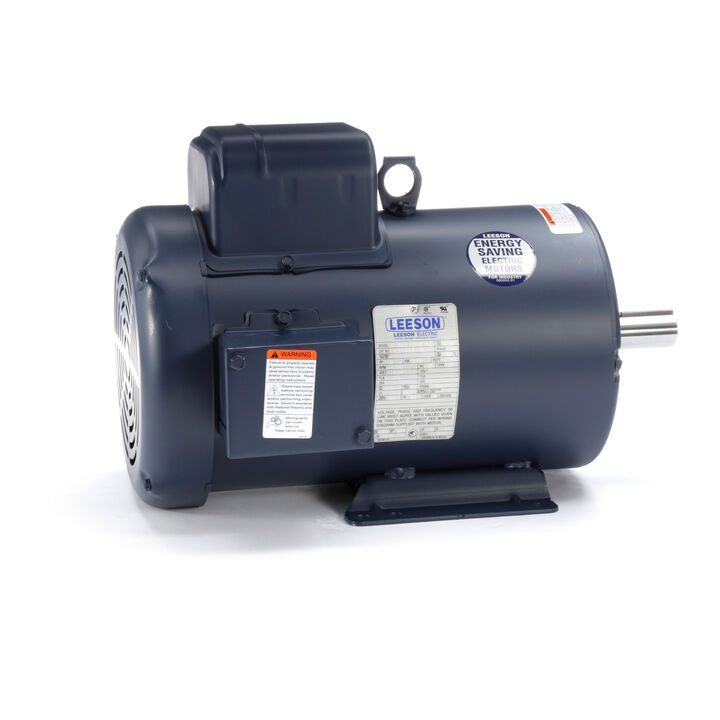

131538.00 | 230V | 1800 RPM | 5 hp | 23A | Capacitor Start/Run | 1 | 184T | 40°C | €1,350.52 | |
 |
131549.00 | 230V | 3600 RPM | 5 hp | 19.8A | Capacitor Start/Run | 1.15 | 184T | 40°C | €1,256.97 | |
 |
131637.00 | 115/208-230V AC | 3600 RPM | 3 hp | 26.8/14.4-13.4A | Capacitor Start/Run | 1.15 | 9.5" | 40°C | €1,502.85 | |
 |

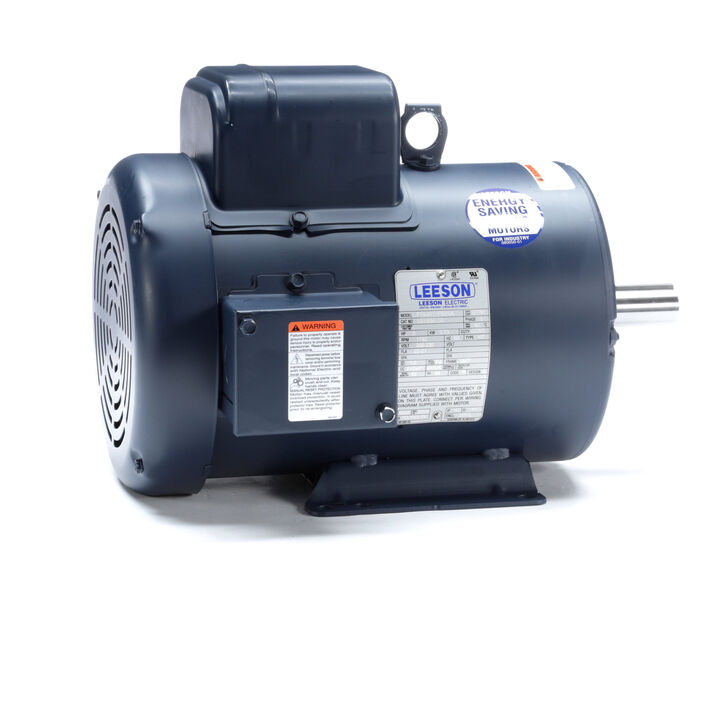

131856.00 | 208-230V | 1800 RPM | 5 hp | 21-23A | Capacitor Start/Run | 1 | 184T | 40°C | €1,290.62 |
