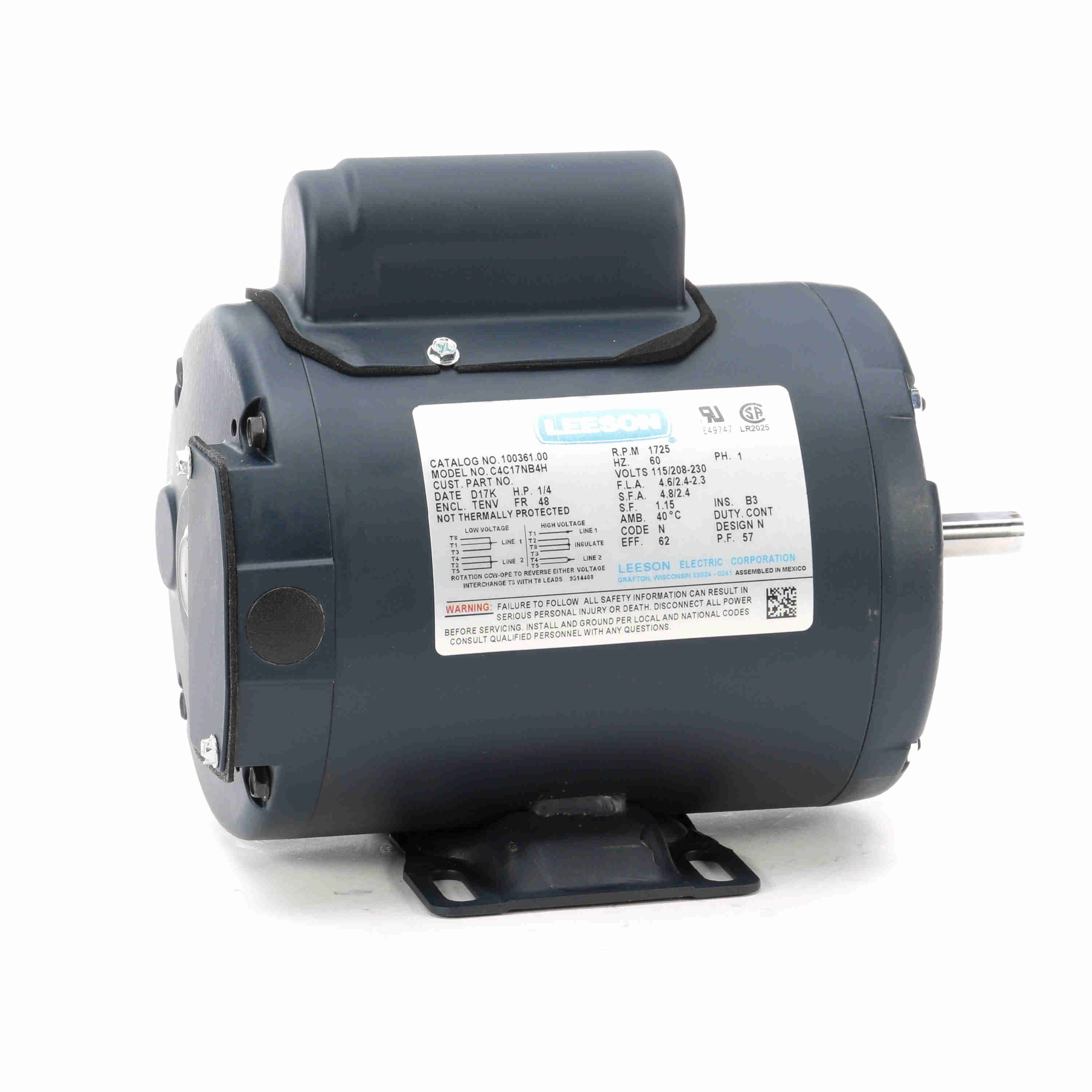

LEESON 100361.00 C4C17NB4H Single Phase Motor | AJ2PHP C4C17NB4H

LEESON 100361.00 C4C17NB4H General Purpose Motor, 0.25 HP, 1 Phase, 60 Hz, 115/230V, 1800 RPM

Item: AJ2PHPModel: 100361.00Cross Ref: 36X751 / C4C17NB4H
Check Availability
In Stock
Nameplate RPM
HP

Get it by Tuesday, Aug 25

€382.53 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Ambient Temp. 40°C
Amps 4.6/2.3A
Assembly LO100361
Code N
Design Code No
Drive End Bearing Size 6203
Drive End Bearing Type Ball
Duty Cycle Continuous
Efficiency 62%
Electrical Type Capacitor Start, Induction Run
Enclosure Type Tenv
Frame 48
Frame Length 5 3/4"
Frame Material Rolled Steel
Frame Type 48
Frequency 60 Hz
Full Load Amps 4.6/2.4-2.3A
Grease Type Multemp SRL
Height 8 3/4"
Hp 1/4 hp
Insulation Class Class B
Ip Code IP43
Kva Code No
Kw 0.19 kW
Length 13 3/4"
Lubrication Multemp SRL
Max. Speed 1725 RPM
Motor Enclosure Design Totally Enclosed Non Ventilated
Motor Orientation Horizontal
Motor Shaft Rotation Selective Counter Clockwise
Motor Type Capacitor Start
Mounting Type Rigid Base
Nameplate Speed 1800 RPM
Nema Design N
No. Of Poles 4
No. Of Speeds 1
Opp Drive End Bearing Size 6203
Opp. Drive End Bearing Type Ball
Output Kw 0.187 kW
Packaging B
Phase 1
Power Factor 57
Resistance Main 59.9 ohms
Service Factor 1.15
Shaft Dia. 1/2"
Shaft Length 1 1/2"
Shaft Type NEMA 48
Speed 1700-1800 RPM
Starting Method Across The Line
Thermal Protection No Protection
Type CN
Voltage 115/208-230V
Width 7 22/25"

Shipping Info:

Ship weight (kg) 9
Ship height (cm)22.23
Ship length (cm)34.93
Ship width (cm)20.02
Country of OriginMX

Product Details:

    • Eff 100%: 62
    • Bearing OPE: 6203
    • CC Number: EXEMPT
    • Bearing PE: 6203
    • Winding: CE484249
    • GROUP: 3
    • Paint: BLUE - LEESON (ENAMEL)
    • S. F Amps: 4.8 / 2.4-2.3

Product Variants

ProductModelPhaseHpFull Load AmpsService FactorVoltageFrequencyMounting TypeMotor TypePrice
MARATHON MOTORS 5KCR46JN0087Y General Purpose Motor Carbon Steel Tefc 1/3 Hp 1725/1425 Rpm 56c | AA9ZKL 1K124 / E255 5KCR46JN0087Y11/3 hp3.8-4/1.9-2A1.35115/230V AC60 HzFace, BaseCapacitor Start€942.30
MARATHON MOTORS 5KCR46MN0055Y General Purpose Motor Carbon Steel Tefc 1/2 Hp 1725/1425 Rpm 56c | AA9ZKP 1K127 / E264 5KCR46MN0055Y11/2 hp5.6-5.8/2.8-2.9A1.25115/230V AC60 HzFace, BaseCapacitor Start, Run€841.44
MARATHON MOTORS 5KCR46MN0093 General Purpose Motor Carbon Steel Tefc 1/2 Hp 1725/1425 Rpm 56c | AA9ZKQ 1K128 / E265 5KCR46MN009311/2 hp5.6-5.8/2.8-2.9A1.25115/230V AC60 HzFaceCapacitor Start, Run€814.28
MARATHON MOTORS 5KCR46MN0055X General Purpose Motor Carbon Steel Tefc 1/2 Hp 1725/1425 Rpm 56c | AA9ZKR 1K129 / E266 5KCR46MN0055X11/2 hp5.6-5.8/2.8-2.9A1.25115/230V AC60 HzFace, BaseCapacitor Start, Run€886.09
MARATHON MOTORS 5KCR49PN0099X General Purpose Motor Carbon Steel Tefc 3/4 Hp 1725/1425 Rpm 56c | AA9ZKV 1K132 / E275 5KCR49PN0099X13/4 hp8.8-9/4.4-4.5A1.25115/230V AC60 HzFace, BaseCapacitor Start, Run€1,094.78
MARATHON MOTORS 5KCR49UN0107 General Purpose Motor Carbon Steel Tefc 1 Hp 1725/1425 Rpm 56c | AA9ZKX 1K134 / EG283 5KCR49UN010711 hp11.4-11.8/5.7-5.9A1.15115/230V AC60 HzFaceCapacitor Start€1,031.58
MARATHON MOTORS 5KCR49UN0106X General Purpose Motor Carbon Steel Tefc 1 Hp 1725/1425 Rpm 56c | AA9ZKY 1K135 / EG284 5KCR49UN0106X11 hp11.4-11.8/5.7-5.9A1.15115/230V AC60 HzFace, BaseCapacitor Start, Run€1,060.60
