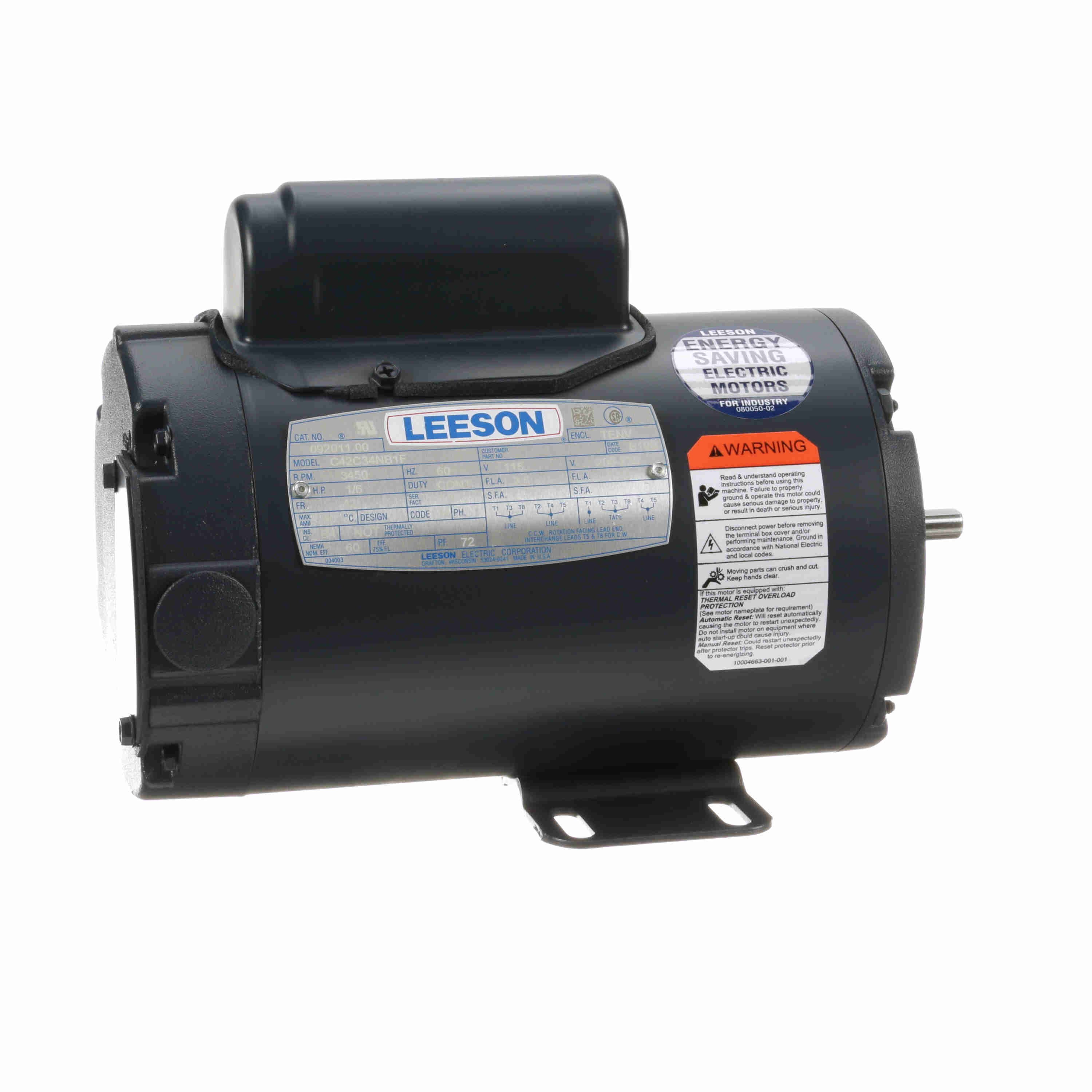

LEESON 092011.00 C42C34NB1F General Purpose Motor, 0.17 HP, 1 Phase, 60 Hz, 115/208-230V, 3600 RPM

Item: AJ2PDXModel: 092011.00Cross Ref: 820HM6 / C42C34NB1F

In Stock

Nameplate RPM

HP

Get it by Tuesday, May 19

€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

~~€727.10~~

5.00% off

€690.74 /unit

Add To Cart

Request a Quote

Payment

Delivery

Product Specifications:

Item	General Purpose Motor
Ambient Temp.	40°C
Amps	2.5/1.3A
Code	N
Design Code	No Design Code
Drive End Bearing Size	6203
Drive End Bearing Type	Ball
Duty Cycle	Continuous
Efficiency	60%
Electrical Type	Capacitor Start, Induction Run
Enclosure Type	Tenv
Frame	42
Frame Length	6 1/2"
Frame Material	Rolled Steel
Frame Type	42
Frequency	60 Hz
Full Load Amps	2.5/1.25A
Grease Type	Polyrex EM
Height	10 22/25"
Hp	17/100 hp
Insulation Class	Class B
Ip Code	IP43
Kva Code	No
Kw	0.13 kW
Length	14 11/25"
Lubrication	Polyrex EM
Max. Rpm	3450 RPM
Motor Enclosure Design	Totally Enclosed Non Ventilated
Motor Orientation	Horizontal
Motor Shaft Rotation	Selective Counter Clockwise
Motor Type	Capacitor Start
Mounting Type	Rigid Base
Nameplate Rpm	3600 RPM
Nema Design	N
No. Of Poles	2
No. Of Speeds	1
Opp. Drive End Bearing Size	6203
Opp. Drive End Bearing Type	Ball
Output Kw	0.13 kW
Packaging	B
Phase	1
Power Factor	72
Product Datasheet	leeson-092011-00.pdf
Rpm	3400-3600 RPM
Service Factor	1
Shaft Dia.	3/8"
Shaft Length	1 3/25"
Shaft Type	Standard 42
Starting Method	Across The Line
Thermal Protection	No Protection
Type	CN
Voltage	115/208-230V
Width	7.94"

Shipping Info:

Ship weight (kg)	8.55
Ship height (cm)	27.64
Ship length (cm)	36.68
Ship width (cm)	20.17
Country of Origin	US

Product Details:

Eff 100%: 60
Bearing OPE: 6203
Bearing PE: 6203
Nameplate: 004003
Winding: C4728
GROUP: 3
Paint: VERIFY
