BROWNING B5V Series Gripbelt Sheaves With Split Taper Bushings, 2 Grooves
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1| Style | Model | Pitch Dia. | Bore Dia. | Max. Pitch Dia. | Min. Pitch Dia. | Type | Pitch Dia. (b) | Pitch Dia. (5v) | Bushing Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 3695228 | 4 1/5" | 1/2" to 1 3/4" | 4 1/2" | 4" | - | 4.7" | 4 1/2" | P1 | €158.03 | |
| B | 3693884 | 4 2/5" | 1/2" to 1 15/16" | 4.7" | 4 1/5" | Type 3 | 4.9" | 4.7" | B | €169.95 | |
| C | 3693892 | 4 3/5" | 1/2" to 1 15/16" | 4.9" | 4 2/5" | Type 3 | 5.1" | 4.9" | B | €176.15 | |

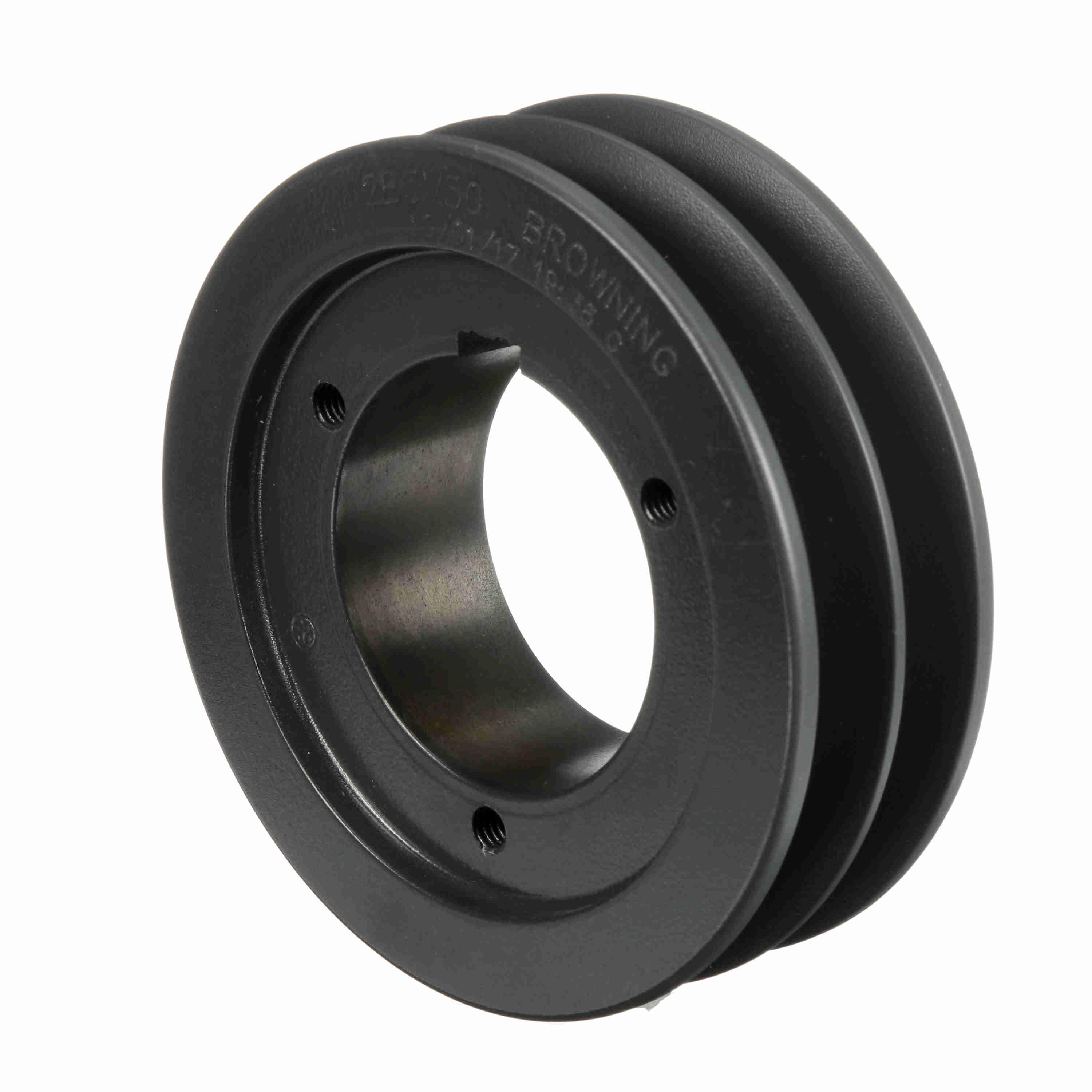

| D | 3693900 | 4 4/5" | 1/2" to 1 15/16" | 5.1" | 4 3/5" | - | 5.3" | 5.1" | B | €182.34 | |
| E | 3695186 | 4" | 1/2" to 1 3/4" | 4.3" | 3 4/5" | - | 4 1/2" | 4.3" | P1 | €149.92 | |
| F | 3693926 | 5 1/5" | 1/2" to 1 15/16" | 5 1/2" | 5" | Type 3 | 5.7" | 5 1/2" | B | €194.73 | |
| G | 3693934 | 5 2/5" | 1/2" to 1 15/16" | 5.7" | 5 1/5" | Type 3 | 5.9" | 5.7" | B | €200.95 | |
| H | 3693942 | 5 3/5" | 1/2" to 1 15/16" | 5.9" | 5 2/5" | Type 3 | 6.1" | 5.9" | B | €207.16 | |
| I | 3693959 | 5 4/5" | 1/2" to 1 15/16" | 6.1" | 5 3/5" | Type 3 | 6.3" | 6.1" | B | €213.36 | |
| J | 3693918 | 5" | 1/2" to 1 15/16" | 5.3" | 4 4/5" | Type 3 | 5 1/2" | 5.3" | B | €188.55 | |
| K | 3693975 | 6 1/5" | 1/2" to 1 15/16" | 6 1/2" | 6" | Type 3 | 6.7" | 6 1/2" | B | €225.74 | |
| L | 3693983 | 6 2/5" | 1/2" to 1 15/16" | 6.7" | 6 1/5" | Type 3 | 6.9" | 6.7" | B | €228.86 | |
| M | 3693991 | 6 3/5" | 1/2" to 1 15/16" | 6.9" | 6 2/5" | Type 4 Web | 7.1" | 6.9" | B | €231.94 | |
| N | 3694007 | 6 4/5" | 1/2" to 1 15/16" | 7.1" | 6 3/5" | Type 4 Web | 7.3" | 7.1" | B | €229.98 | |
| O | 3693967 | 6" | 1/2" to 1 15/16" | 6.3" | 5 4/5" | Type 3 | 6 1/2" | 6.3" | B | €219.56 | |

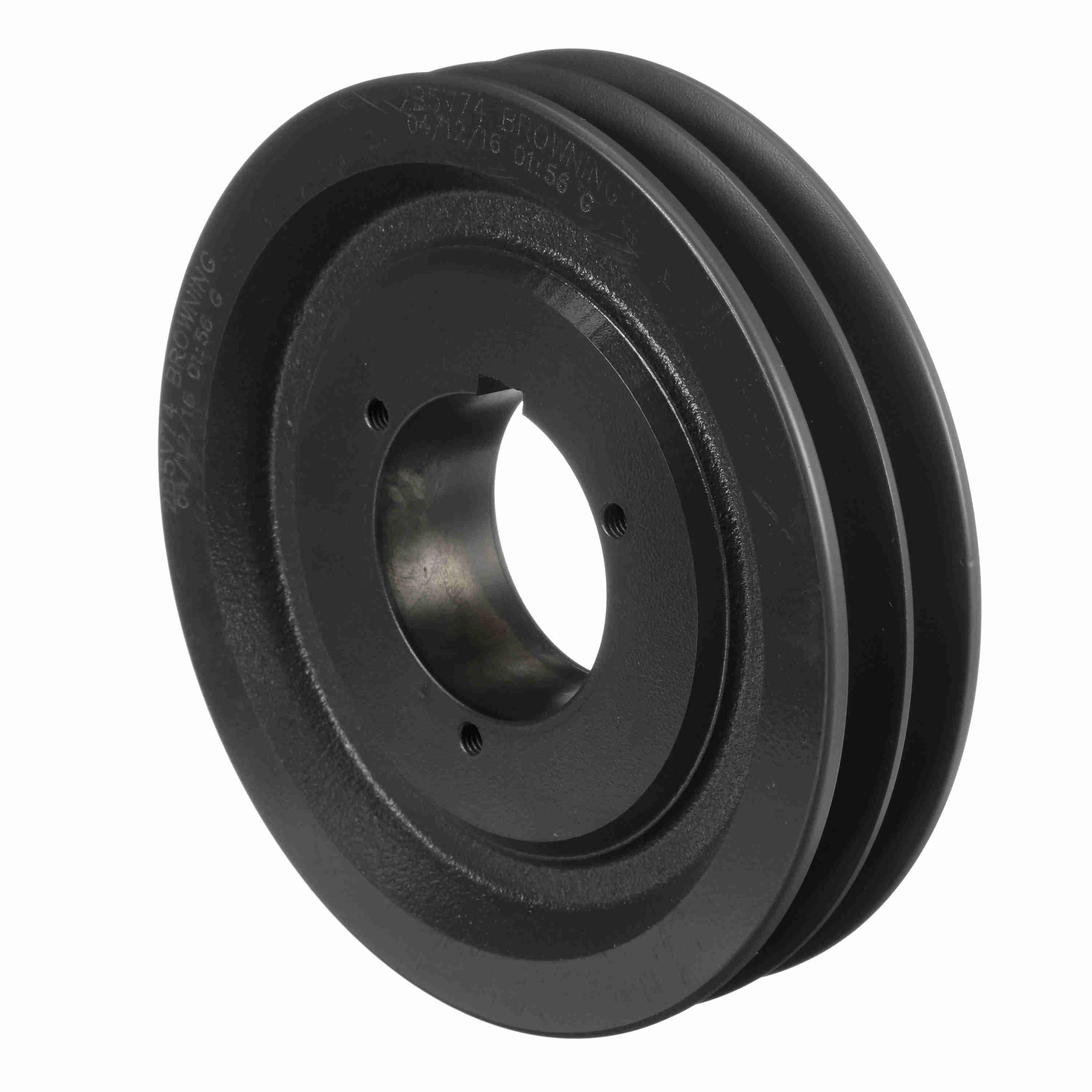

| P | 3694015 | 7 1/5" | 1/2" to 1 15/16" | 7 1/2" | 7" | Type 4 Web | 7.7" | 7 1/2" | B | €271.43 | |
| Q | 3694023 | 7 4/5" | 1/2" to 1 15/16" | 8.1" | 7 3/5" | Arm Type 4 | 8.3" | 8.1" | B | €274.55 | |
| R | 3694031 | 8 2/5" | 1/2" to 1 15/16" | 8.7" | 8 1/5" | Arm Type 4 | 8.9" | 8.7" | B | €240.60 | |
| S | 3694049 | 8 4/5" | 1/2" to 1 15/16" | 9.1" | 8 3/5" | Arm Type 4 | 9.3" | 9.1" | B | €283.86 | |
| T | 3694056 | 9 1/5" | 1/2" to 1 15/16" | 9 1/2" | 9" | Arm Type 4 | 9.7" | 9 1/2" | B | €245.95 | |
| U | 3694064 | 10 4/5" | 1/2" to 1 15/16" | 11.1" | 10 3/5" | Arm Type 4 | 11.3" | 11.1" | B | €283.15 | |
| V | 3694072 | 12 1/5" | 1/2" to 1 15/16" | 12 1/2" | 12" | Arm Type 4 | 12.7" | 12 1/2" | B | €304.39 | |
| W | 3694080 | 13 2/5" | 1/2" to 1 15/16" | 13.7" | 13 1/5" | Arm Type 4 | 13.9" | 13.7" | B | €357.55 | |
| X | 3694098 | 15 1/5" | 1/2" to 1 15/16" | 15 1/2" | 15" | Arm Type 4 | 15.7" | 15 1/2" | B | €485.09 | |
| Y | 3694106 | 15 4/5" | 1/2" to 1 15/16" | 16.1" | 15 3/5" | Arm Type 4 | 16.3" | 16.1" | B | €511.67 | |
| Z | 3694114 | 18 1/5" | 1/2" to 1 15/16" | 18 1/2" | 18" | Arm Type 4 | 18.7" | 18 1/2" | B | €633.90 | |
| A1 | 3694122 | 19 4/5" | 1/2" to 1 15/16" | - | - | Arm Type 4 | 20.3" | 20.1" | B | €746.46 | |
| B1 | 3694130 | 23.1" | 1/2" to 1 15/16" | 23 1/2" | 22.9" | Arm Type 4 | 23.7" | 23 1/2" | B | €992.22 | |
| C1 | 3694148 | 24 4/5" | 1/2" to 1 15/16" | 25.1" | 24 1/2" | Arm Type 4 | 25.3" | 25.1" | B | €1,176.91 | |

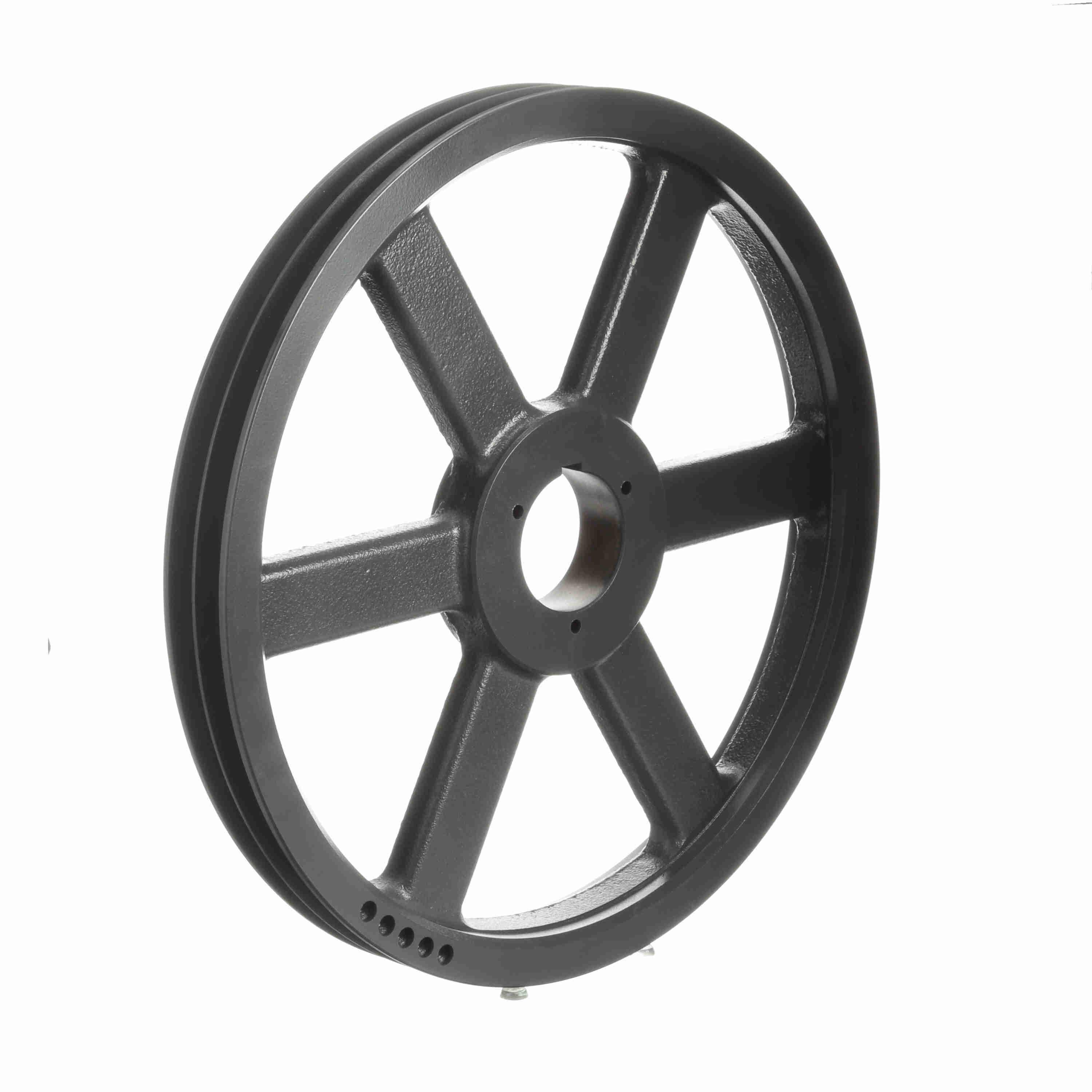

| D1 | 3694155 | 27 1/2" | 1/2" to 1 15/16" | 27.9" | 27.3" | Arm Type 4 | 28.1" | 27.9" | B | €1,325.80 |
