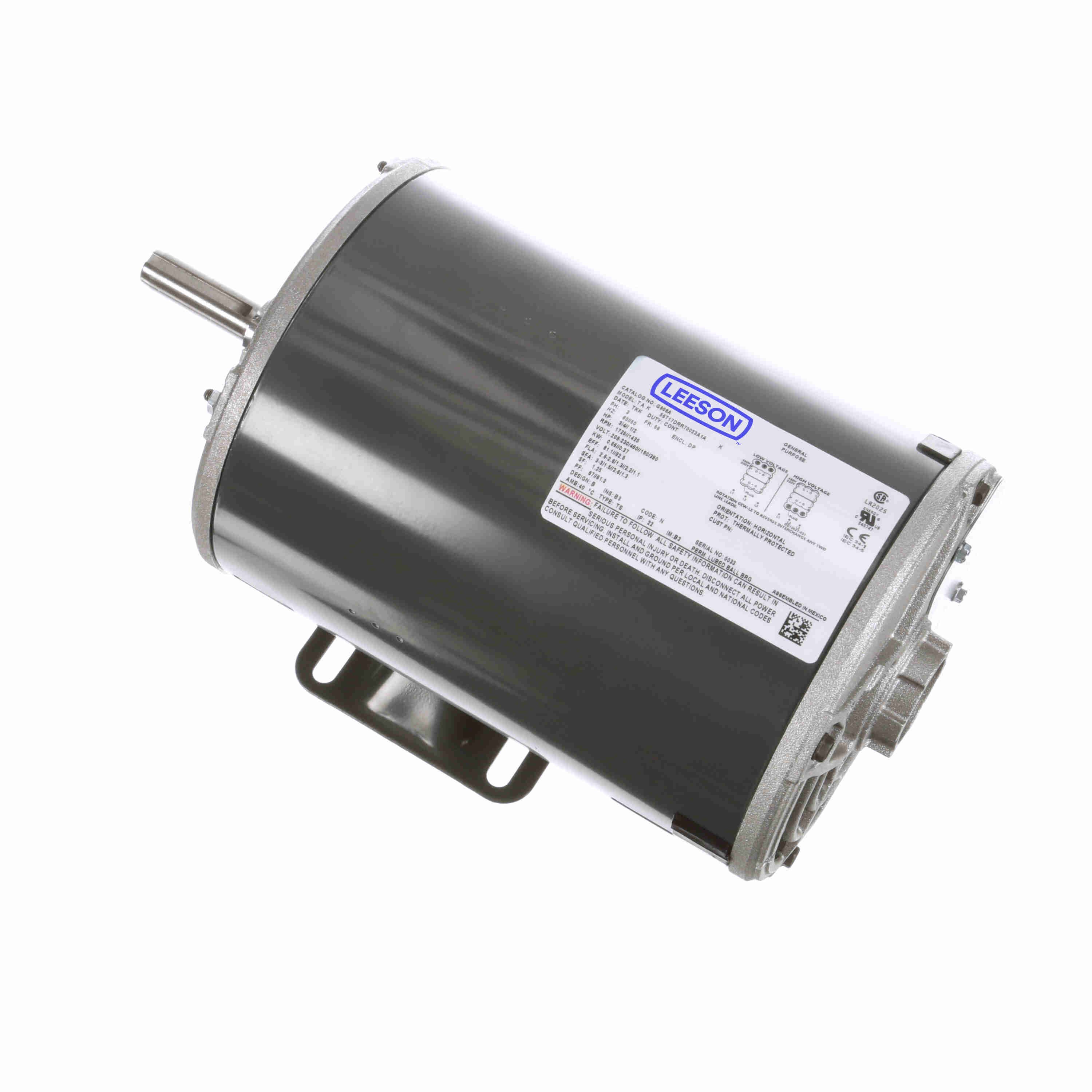

LEESON 056T17DRR70023A1 56T17DRR70023A1A / G908A General Purpose Motor, 0.75/0.50 HP, 3 Phase, 60/50 Hz, 208-230/460 and 190/380V, 1800 RPM
Item: CD3RACModel: 056T17DRR70023A1Cross Ref: 54JH49 / 56T17DRR70023A1A / G908A
In Stock
Get it by Tuesday, Sep 1
5.00% off
€790.64 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Ambient Temp. | 40°C |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Duty Cycle | Continuous |
| Efficiency | 81.1% |
| Efficiency Group | Premium |
| Frame | 56 |
| Frame Material | Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 1.3/2.6A |
| Full Load Amps @ 50 Hz | 2.6-2.6/1.3A |
| Hp | 3/4 hp |
| Hp @ 50 Hz | 3/4 hp |
| Insulation Class | Class B |
| Inverter Rated | No |
| Length Less Shaft | 10 5/8" |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.25 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW, CCW |
| Motor Shaft Rotation | Clockwise, Counter Clockwise |
| Motor Thermal Protection | Auto |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Speed | 1725 RPM |
| No. Of Speed | 1 |
| Nominal Efficiency | 81.1% |
| Overall Length | 12 1/2" |
| Phase | 3 |
| Service Factor | 1.25 |
| Shaft Dia. | 5/8" |
| Shaft Length | 1 7/8" |
| Speed | 1701-1800 RPM |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
Shipping Info:
| Ship weight (kg) | 13.05 |
| Ship height (cm) | 21.89 |
| Ship length (cm) | 41.61 |
| Ship width (cm) | 26.67 |
| HS code | 8501514040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Hp | Voltage | Phase | Frequency | Service Factor | Full Load Amps | Mounting Type | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
5KCR46JN0087Y | 1/3 hp | 115/230V AC | 1 | 60 Hz | 1.35 | 3.8-4/1.9-2A | Face, Base | Capacitor Start | €942.30 | |
 |
5KCR46MN0055Y | 1/2 hp | 115/230V AC | 1 | 60 Hz | 1.25 | 5.6-5.8/2.8-2.9A | Face, Base | Capacitor Start, Run | €841.44 | |
 |
5KCR46MN0093 | 1/2 hp | 115/230V AC | 1 | 60 Hz | 1.25 | 5.6-5.8/2.8-2.9A | Face | Capacitor Start, Run | €814.28 | |
 |
5KCR46MN0055X | 1/2 hp | 115/230V AC | 1 | 60 Hz | 1.25 | 5.6-5.8/2.8-2.9A | Face, Base | Capacitor Start, Run | €886.09 | |
 |
5KCR49PN0099X | 3/4 hp | 115/230V AC | 1 | 60 Hz | 1.25 | 8.8-9/4.4-4.5A | Face, Base | Capacitor Start, Run | €1,094.78 | |
 |
5KCR49UN0107 | 1 hp | 115/230V AC | 1 | 50/60 Hz | 1.15 | 11.4-11.8/5.7-5.9A | Face | Capacitor Start | €1,031.58 | |
 |
5KCR49UN0106X | 1 hp | 115/230V AC | 1 | 60 Hz | 1.15 | 11.4-11.8/5.7-5.9A | Face, Base | Capacitor Start, Run | €1,060.60 |
