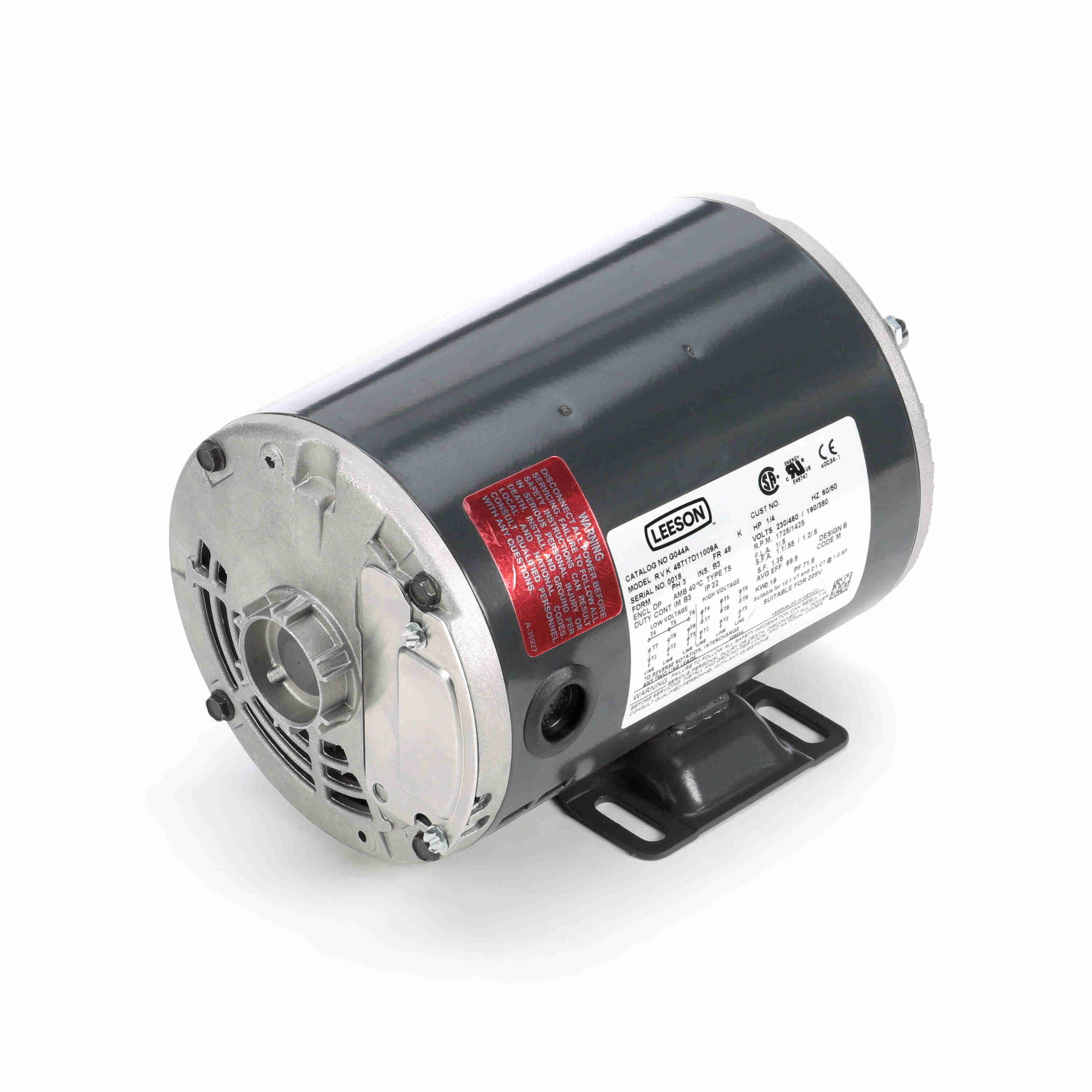

LEESON 048T17D11009 G044A / 48T17D11009A General Purpose Motor, 0.25 HP, 3 Phase, 60/50 Hz, 230/460 and 190/380V, 1800 and 1500 RPM
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€419.35 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | General Purpose Motor |
| Base Type | Rigid Base |
| Bearing Type | Ball |
| Cc Number | CC003A |
| Duty Cycle | Continuous |
| Efficiency | 69.5% |
| Frame | 48 |
| Frame Material | Steel |
| Frequency | 50/60 Hz |
| Full Load Amps | 1/0.5A |
| Full Load Amps @ 50hz | 1/0.5A |
| Hp | 1/4 hp |
| Hp @ 50hz | 1/4 hp |
| Insulation Class | Class B |
| Inverter Rated | Yes |
| Length Less Shaft | 8 3/4" |
| Max. Ambient Temp. | 40°C |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.35 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Type | Three Phase |
| Mounting Type | Rigid Base |
| Nameplate Rpm | 1725 RPM |
| Nominal Efficiency | 69.5% |
| Number Of Speeds | 1 |
| Overall Length | 10 5/16" |
| Phase | 3 |
| Power | 0.19 kW |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.35 |
| Shaft Dia. | 1/2" |
| Shaft Length | 1 9/16" |
| Standards | Ce, Csa, Ul Recognized |
| Thermal Protection | None |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 230/460V AC |
| Weight | 18 lbs. |
Shipping Info:
| Ship weight (kg) | 8.1 |
| Ship height (cm) | 22.23 |
| Ship length (cm) | 34.93 |
| Ship width (cm) | 20.02 |
| HS code | 8501514040 |
| Country of Origin | MX |
Product Details:
- Supersedes Marathon - G044 / 048T17D2000
Product Variants
| Product | Model | Nameplate Rpm | Hp | Frequency | Full Load Amps | Service Factor | Voltage | Frame | Frame Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056T17DRR70010A1 | 1725 RPM | 1 hp | 50/60 Hz | 3.2-3/1.5A | 1.15 | 208-230/460V AC | 56H | Rolled Steel | €705.63 | |
 |
056T17DRR70023A1 | 1725 RPM | 3/4 hp | 50/60 Hz | 1.3/2.6A | 1.25 | - | 56 | Steel | €843.67 | |
 |
143TTDR16056 | 1760 RPM | 1 hp | 60 Hz | 3.5A | 1.15 | 200V AC | 143T | Rolled Steel | €807.48 |
