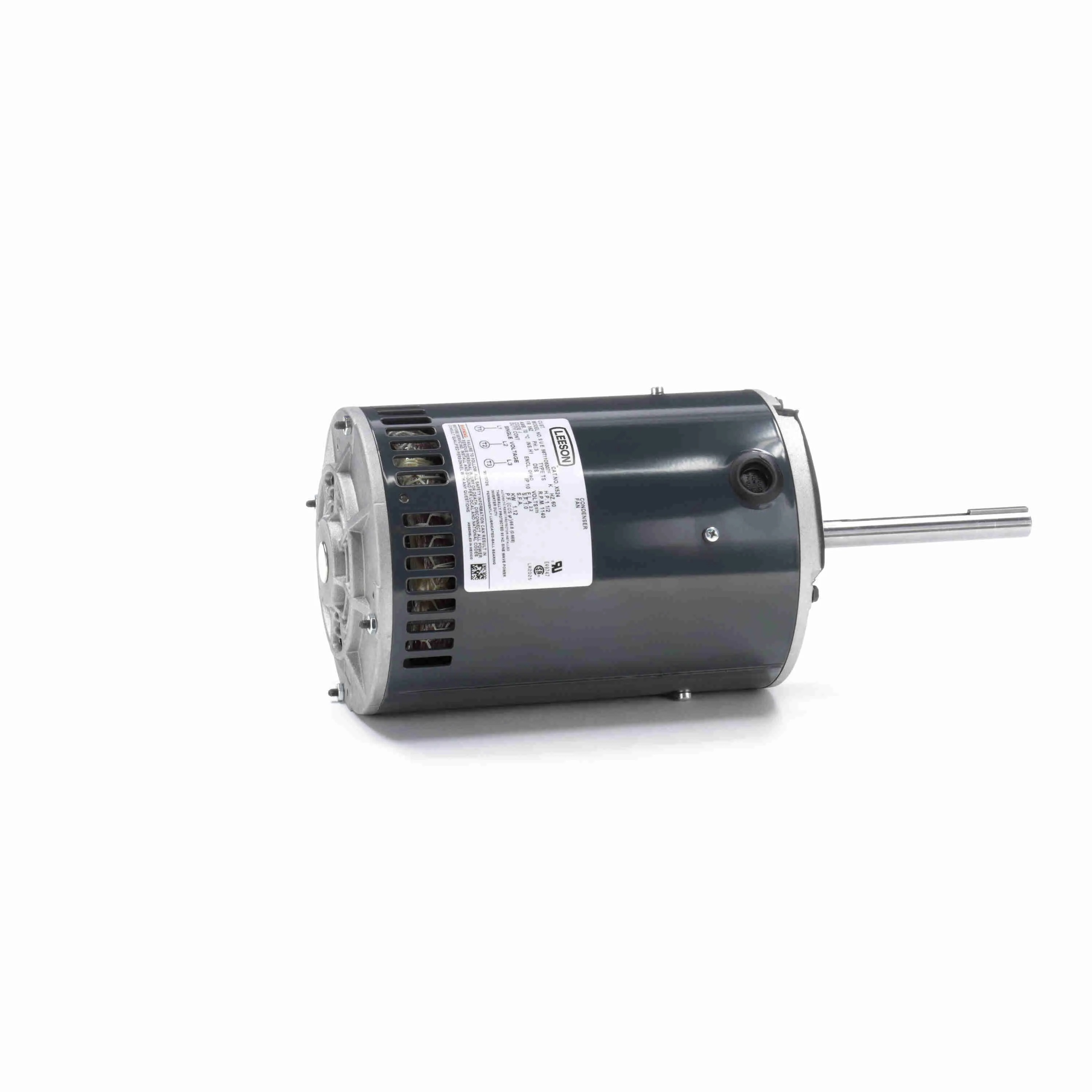

LEESON 056T11O5307 X524 / 56T11O5307F Condenser Fan Motor, 1.50 HP, 3 Phase, 60 Hz, 575V, 1200 RPM
Get it by Thursday, Dec 18
€1,047.63 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HVAC Motor |
| Ambient (c) | 70°C |
| Ambient Temp. | 70°C |
| Assembly | F1 Only |
| Bearing Type | Ball |
| Conduit Box Position | F1 Only |
| Duty Cycle | Continuous |
| Efficiency | 78.5% |
| Enclosure Type | Open Air Over |
| Frame | 56Z |
| Frequency | 60 Hz |
| Full Load Amps | 2.2A |
| Full Load Efficiency | 78.5% |
| Hp | 1 1/2 hp |
| Insulation Class | Class H |
| Max. Ambient Temp. | 70°C |
| Motor Enclosure Design | Open Air Over |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Belly Band |
| Motor Thermal Protection | Automatic |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Belly Band Footless |
| Nameplate Rpm | 1200 RPM |
| Nema Design | No Design Code |
| Number Of Speeds | 1 |
| Phase | 3 |
| Power | 1.12 kW |
| Service Factor | 1 |
| Shaft Orientation | Horizontal |
| Thermal Protection | Automatic |
| Voltage | 575V AC |
Shipping Info:
| Ship weight (kg) | 16.65 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 42.06 |
| Ship width (cm) | 19.05 |
| HS code | 8501524000 |
| Country of Origin | MX |
Product Details:
- Starting Type: ACROSS THE LINE
- KVA Code: J
- Drive End Bearing: BALL
- IP Code: 10
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
Product Variants
| Product | Model | Voltage | Hp | Motor Enclosure Design | Motor Mounting Type | Max. Ambient Temp. | Frame | Motor Thermal Protection | Nameplate Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056T11O5303 | 200-230/460V AC | 1 1/2 hp | Open Air Over | Band, Stud | 70°C | 56Y | Auto | 1140 RPM | €599.97 | |
 |
056T11O5302 | 200-230/460V | 1 hp | Open Air Over | Band, Stud | 70°C | 56Y | Automatic | 1140 RPM | €688.79 | |
 |
056T8O5307 | 208-230/460V AC | 1 1/2 hp | Open Air Over | Band, Stud | 70°C | 56Y | Automatic | 850 RPM | €1,192.71 | |
 |
056T11O5304 | 200-230/460V AC | 2 hp | Open Air Over | Band, Stud | 70°C | 56Y | Automatic | 1140 RPM | €1,064.83 | |
 |
5K49RN6429S | 575V AC | 1 hp | Dripproof | C Face Footless | 65°C | 56Z | Automatic | 1140 RPM | €745.76 | |
 |
056T8O5302 | 200-230/460V AC | 1 hp | Open Air Over | Band, Stud | 70°C | - | Auto | - | €1,100.24 | |
 |
056T11O5300 | 200-230/460V AC | 1/2 hp | - | - | - | - | - | - | €767.00 |
