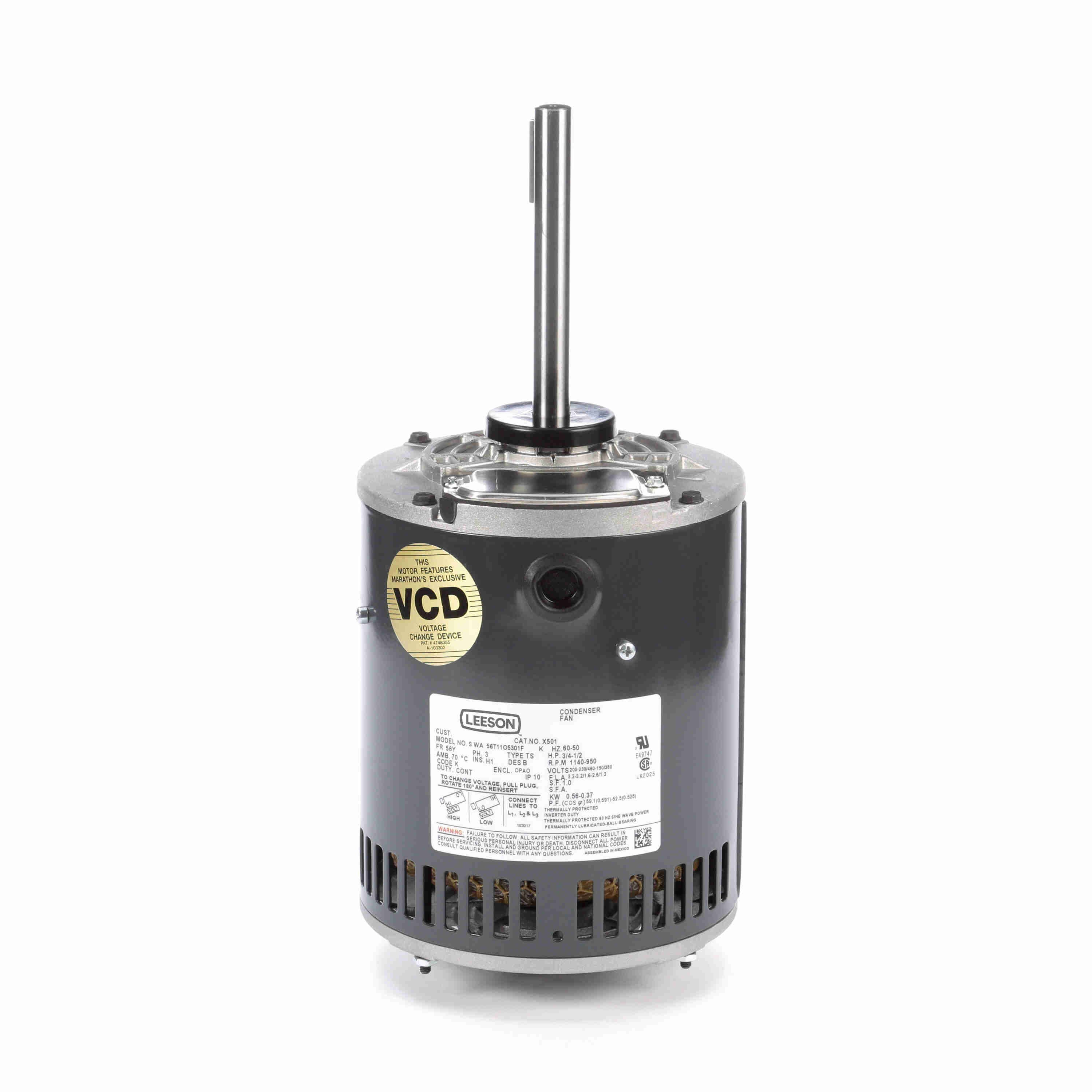

LEESON 056T11O5301 X501 / 56T11O5301F Condenser Fan Motor, 0.75/0.50 HP, 3 Ph, 60/50 Hz, 200-230/460 and 190/380V, 1200 RPM
Get it by Monday, Dec 22
10.00% off
€696.76 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | HVAC Motor |
| Ambient (c) | 70°C |
| Ambient Temp. | 70°C |
| Bearing Type | Ball |
| Body Dia. | 6 1/2" |
| Capacitor Required | No |
| Conduit Box Location | Exterior |
| Conduit Box Position | F1 |
| Design | B |
| Duty Cycle | Continuous |
| Efficiency | 74% |
| Enclosure Type | Open Air Over |
| Features | (4) Locating Screws 90 Degrees Apart, 3-5/16 In From Outer Edge Of Shaft Slinger, Voltage Change Device For Quick Voltage Changes |
| Frame | 56Y |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 3.1-3.2/1.6A |
| Hp | 3/4 hp |
| Hz | 50/60 Hz |
| Ins. Class | Class B |
| Insulation Class | Class H |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 70°C |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Enclosure Design | Open Air Over |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal Shaft Up/Vertical Shaft Up |
| Motor Mounting Type | Band, Stud |
| Motor Service Factor | 1 |
| Motor Shaft Design | Keyed With Single Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Auto |
| Motor Type | Squirrel Cage Induction Run |
| Mounting Type | Belly Band Footless |
| Nameplate Rpm | 1140 RPM |
| Nominal Efficiency | 0.74% |
| Number Of Speeds | 1 |
| Output Watts | 560 W |
| Phase | 3 |
| Power | 0.56 kW |
| Removable Base | No |
| Rpm | 1200 RPM |
| Service Factor | 1 |
| Shaft Dia. | 5/8" |
| Shaft Length | 5" |
| Shaft Orientation | Horizontal |
| Thermal Protection | Automatic |
| Usable @ 200v | Yes |
| Usable @ 208v | Yes |
| Voltage | 200-230/460V AC |
| Warranty | 1 yr. |
| Weight | 25 lbs. |
Shipping Info:
| Ship weight (kg) | 11.25 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 42.06 |
| Ship width (cm) | 19.05 |
| HS code | 8501514040 |
| Country of Origin | MX |
Product Details:
- Starting Type: ACROSS THE LINE
- KVA Code: K
- Drive End Bearing: BALL
- IP Code: 10
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
Product Variants
| Product | Model | Voltage | Hp | Motor Enclosure Design | Motor Mounting Type | Max. Ambient Temp. | Frame | Motor Thermal Protection | Nameplate Rpm | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056T11O5303 | 200-230/460V AC | 1 1/2 hp | Open Air Over | Band, Stud | 70°C | 56Y | Auto | 1140 RPM | €599.97 | |
 |
056T11O5302 | 200-230/460V | 1 hp | Open Air Over | Band, Stud | 70°C | 56Y | Automatic | 1140 RPM | €688.79 | |
 |
056T8O5307 | 208-230/460V AC | 1 1/2 hp | Open Air Over | Band, Stud | 70°C | 56Y | Automatic | 850 RPM | €1,192.71 | |
 |
056T11O5304 | 200-230/460V AC | 2 hp | Open Air Over | Band, Stud | 70°C | 56Y | Automatic | 1140 RPM | €1,064.83 | |
 |
5K49RN6429S | 575V AC | 1 hp | Dripproof | C Face Footless | 65°C | 56Z | Automatic | 1140 RPM | €745.76 | |
 |
056T8O5302 | 200-230/460V AC | 1 hp | Open Air Over | Band, Stud | 70°C | - | Auto | - | €1,100.24 | |
 |
056T11O5300 | 200-230/460V AC | 1/2 hp | - | - | - | - | - | - | €767.00 |
