LEESON 056C17F5358 F131 / 56C17F5358E General Purpose Farm Duty Motor, 0.33 HP, 1 Phase, 60 Hz, 115/208-230V, 1800 RPM
Get it by Wednesday, Dec 17
€605.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Poultry Fan Motor |
| Ambient (c) | 40 |
| Application | General Application |
| Assembly | F1 Only |
| Bearing Type | Ball |
| Conduit Box Position | F1 Only |
| Design | N |
| Duty Cycle | Continuous |
| Efficiency | 55% |
| Frame | 56C |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 6.6/3.1-3.3A |
| Hp | 1/3 hp |
| Ins. Class | Class B |
| Inverter Rated | No |
| Length Less Shaft | 9 3/4" |
| Manufacturers Warranty Length | 2 yrs. |
| Max. Ambient Temp. | 104°F |
| Motor Application | General Application |
| Motor Bearings | Ball |
| Motor Design | Capacitor Start |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Material | Steel |
| Motor Mounting Position | Horizontal |
| Motor Mounting Type | Rigid Base |
| Motor Service Factor | 1.15 |
| Motor Shaft Design | Keyed |
| Motor Shaft Rotation | CW/CCW |
| Motor Thermal Protection | Manual |
| Motor Type | Capacitor Start |
| Nameplate Rpm | 1725 RPM |
| Nema Design | N |
| Number Of Speeds | 1 |
| Output Power | 0.25 kW |
| Overall Length | 11 13/16" |
| Phase | 1 |
| Power | 0.25 kW |
| Rpm Range | 1701-1800 RPM |
| Service Factor | 1.15 |
| Shaft Dia. | 5/8" |
| Shaft Length | 2 1/16" |
| Standards | Ce, Csa, Ul Recognized |
| Thermal Protection | Manual |
| Usable @ 200v | No |
| Usable @ 208v | Yes |
| Voltage | 115/208-230V AC |
| Warranty | 2 yrs. |
| Weight | 24 lbs. |
Shipping Info:
| Ship weight (kg) | 10.8 |
| Ship height (cm) | 23.16 |
| Ship length (cm) | 40.94 |
| Ship width (cm) | 26.04 |
| HS code | 8501404040 |
| Country of Origin | MX |
Product Details:
- Starting Type: CAP START IND RUN
- KVA Code: N
- Drive End Bearing: BALL
- IP Code: 43
- Opposite End Bearing: BALL
- Drive End Bearing Size: 6203
- Opposite End Bearing Size: 6203
Product Variants
| Product | Model | Hp | Motor Design | Frame | Motor Application | Overall Length | Application | Efficiency | Output Power | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
056C17F5913 | 3/4 hp | Capacitor Start | 56C | General Application | 12 5/16" | General Application | 70.5% | 0.56 kW | €484.15 | |
 |

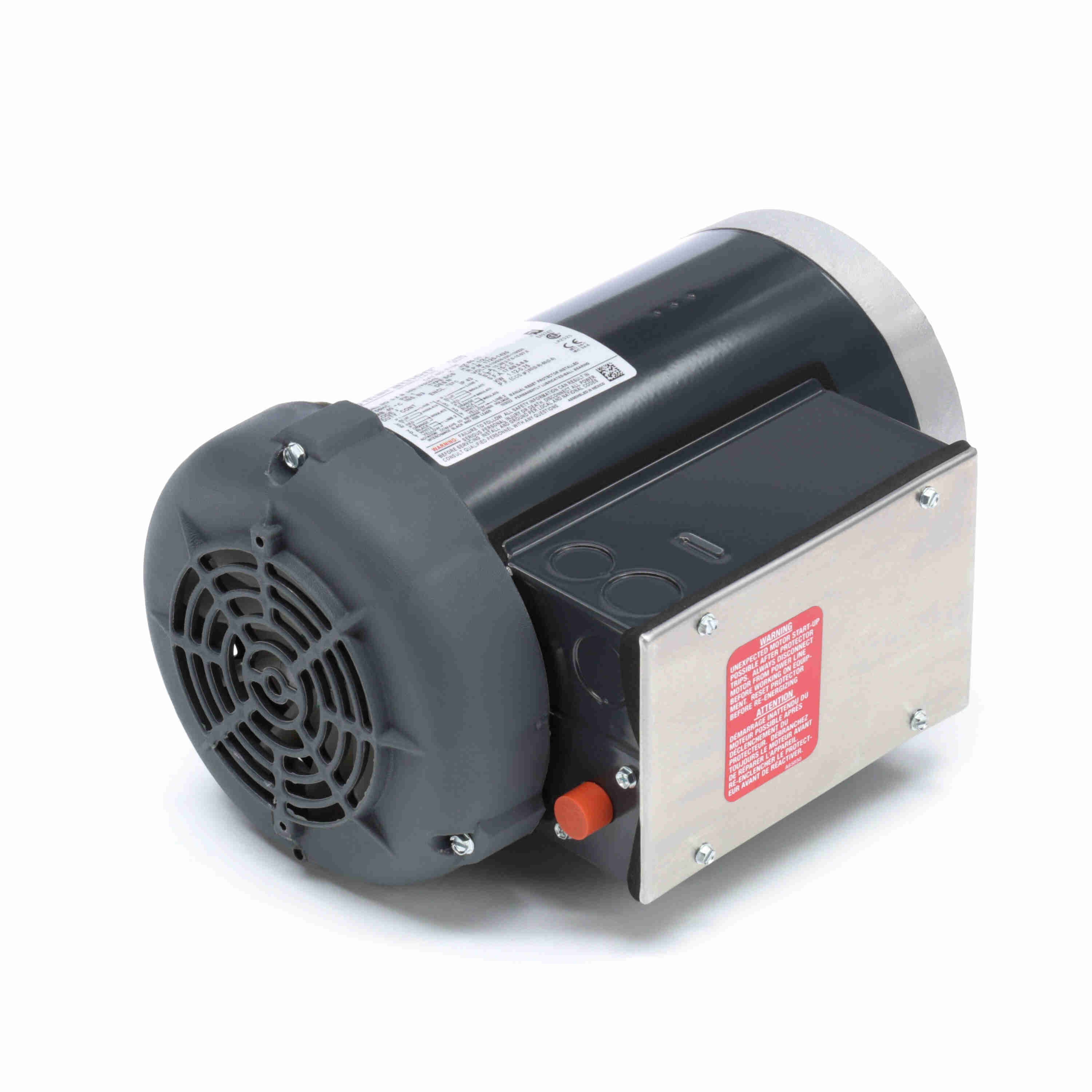

056B17F5584 | 1 1/2 hp | Capacitor Start/Run | 56HC | Farm Duty | 13 13/16" | - | - | 1.12 kW | €852.94 | |
 |

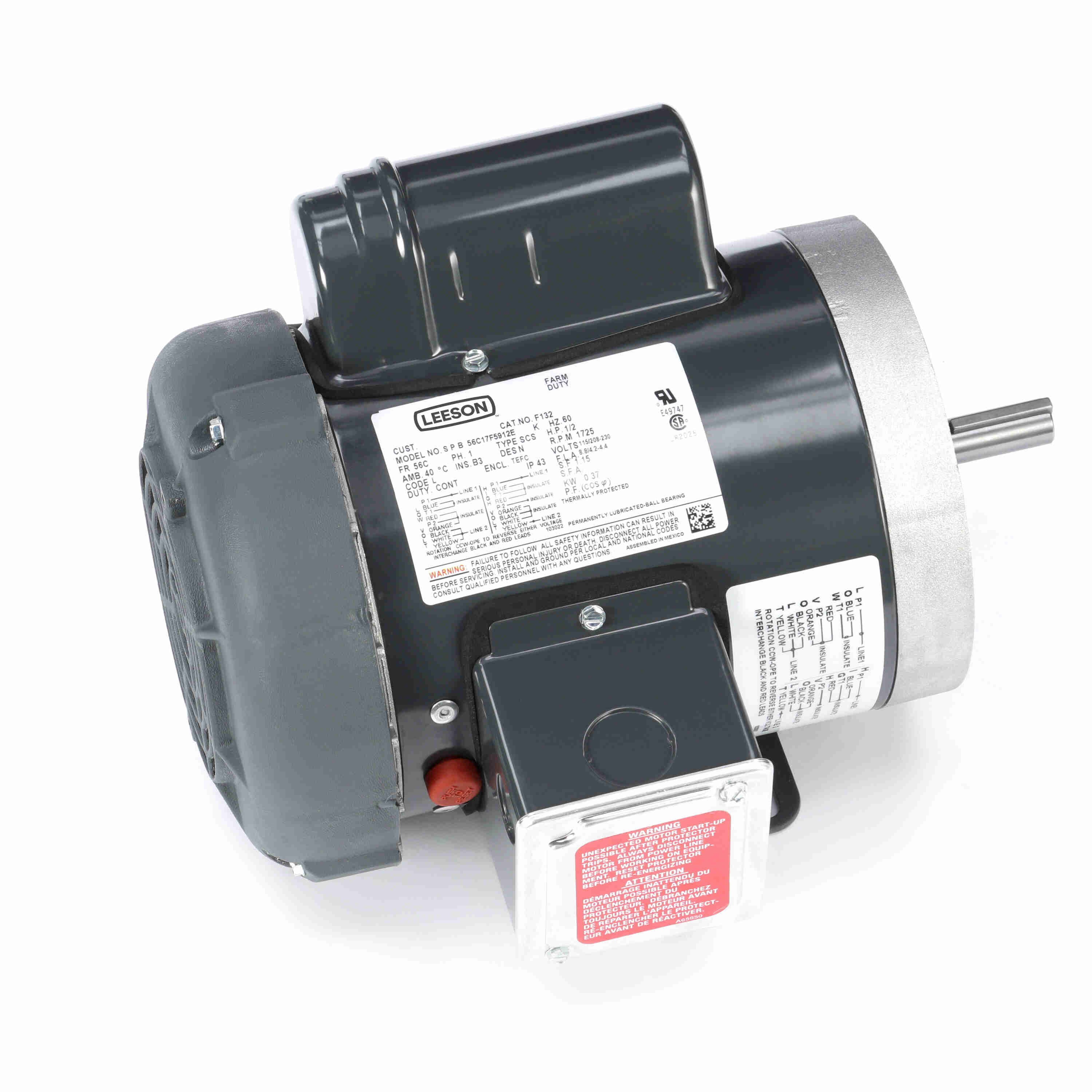

056C17F5912 | 1/2 hp | Capacitor Start | 56C | General Application | 11 13/16" | General Application | Not Applicable | 0.37 kW | €466.40 | |
 |

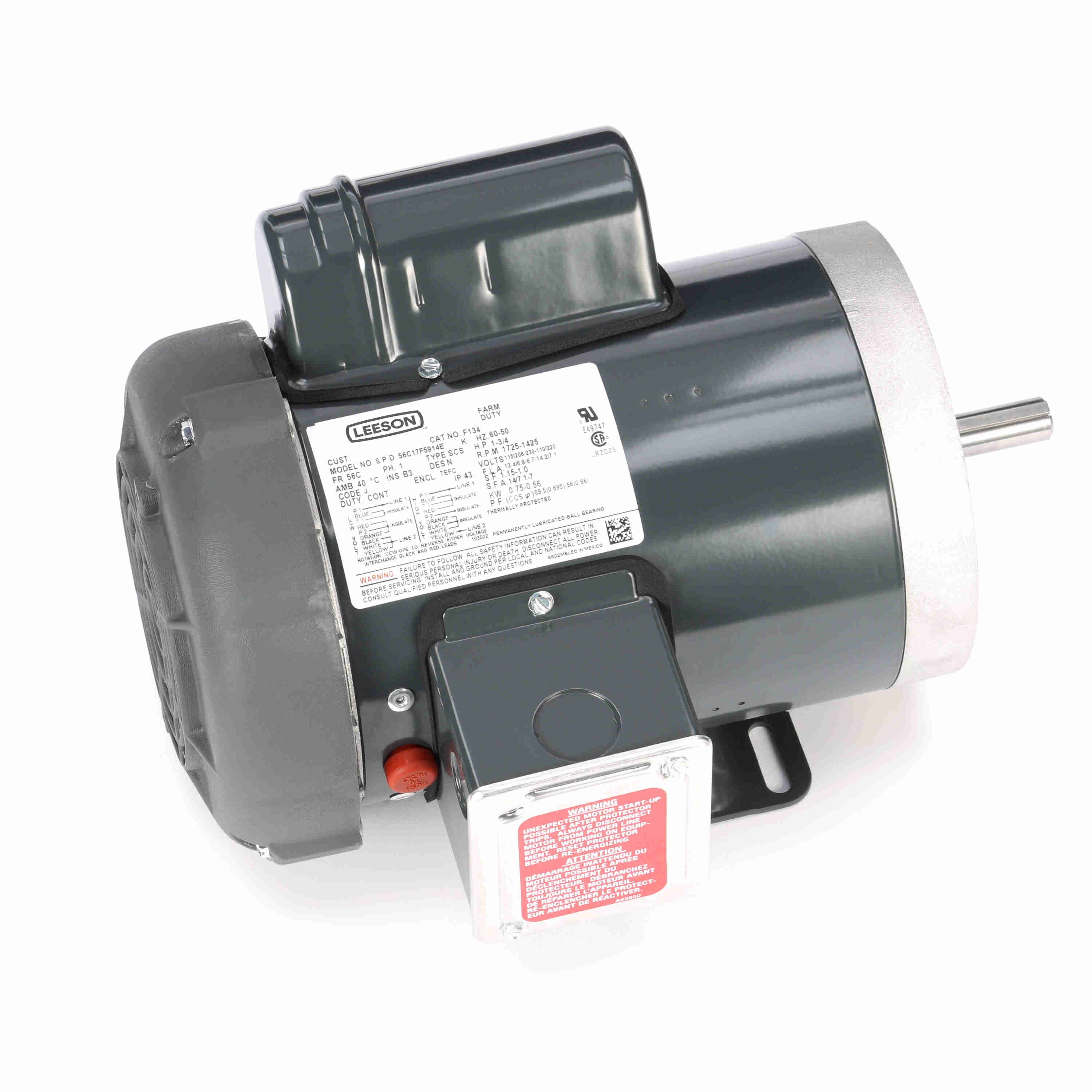

056C17F5914 | 1 hp | Capacitor Start | 56C | Farm Duty | 12 13/16" | Farm Duty | 72% | - | €749.27 |
